The novel EM-Tec FG1 silicon SEM finder grid substrate consists of an a 12x12mm chrome deposited grid with a 1mm pitch on a conductive ultra-flat silicon substrate. The substrate is divided into 144 indexed fields of 1x1mm where each of the fields has a unique alphanumeric label in the lower right corner. The alphanumeric label is easy to see with a magnifier, stereo microscope and/or SEM. The grid produced is comparable with 25 mesh and is practical for larger particles or small samples mounted on the substrate in separate fields. The EM-Tec FG1 silicon SEM finder grid substrate is ideal for correlative microscopy since the position of the sample is easily located. Size of the EM-Tec FG1 is 12x12mm on a 12.5 x 12.5mm substrate. Primarily designed for SEM applications, but equally suitable for reflected light microscopy, AFM and Auger/SIMS.
This unique product has a number of advantages over engraved SEM stubs and the usual copper SEM finder grids:
The EM-Tec FG1 silicon SEM finder grid substrate in packaged in a clean-room and shipped in a gel-box.
The EM-Tec FG1 finder grid is ideal for:

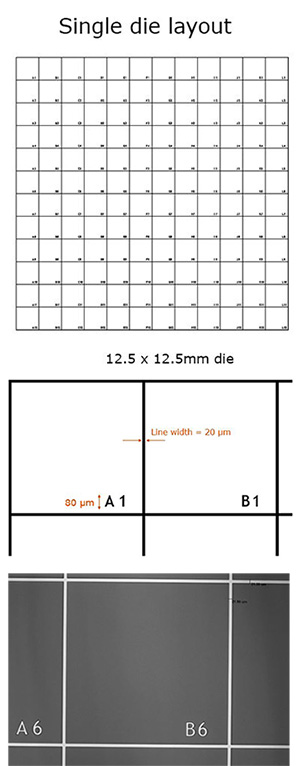

Pattern size | 12 x12 mm divided into 144 individual 1x1mm fields |
Numbering | Each field has unique alphanumeric label in lowe right corner |
Pattern/labels | 75nm thick deposited Cr with 20µm line width, 80µm label height |
Substrate size | 12.5x12.5mm |
Orientation | <100> |
Type | P (Boron) |
Resistance | 1-10 Ohm/cm |
Grade | Prime / CZ Virgin |
Coating | None, native oxide only |
Thickness | 675µm (+/- 20µm) |
TTV | ≤1.5µm |
Warp | ≤30µm |
Technical Support Bulletin: EM-Tec FG1 silicon SEM finder grid substrate
EM-Tec silicon SEM finder grid substrate
|
