EM-Tec and Gilder TEM grid storage boxes

•
• EM-Tec TEM grid boxes  |
  • EM-Tec CG-1 aluminium grid box for single TEM grid or calibration grid
  • EM-Tec TGB-100 economy TEM grid storage box for 100 TEM grids
  • EM-Tec TGB-50 economy TEM grid storage box for 50 TEM grids
• Gilder TEM grid boxes  |
  • Gilder SB100 TEM grid storage box for 100 TEM grids
  • Gilder SB50 TEM grid storage box for 50 TEM grids
  • Gilder SB25 compakt TEM grid storage box for 25 TEM grids
• EM-Tec cryo grid boxes |
  • EM-Tec CGB-4A aluminum, fully cryo compatible cryo grid box for 4 TEM grids
  • EM-Tec CGB-4 Cryo grid box for 4 TEM grids
  • EM-Tec GB-4L clear lid for EM-Tec CGB-4 cryo grid box
  • EM-Tec CGB-7 Cryo grid box for 4 TEM grids with pin type lid
  • EM-Tec GB-7L pin type lid for EM-Tec cryo grid box
  • EM-Tec CGB-7A aluminium cryo grid box for 4 TEM grids with pin type lid
  • EM-Tec ACB-4A aluminium cryo grid box for 4 AutoGrids with pin type lid
• EM-Tec FIB lift-out grid box
  • EM-Tec FA-4 FIB lift-out grid box for 4 grids with coloured thumb screw
  • EM-Tec FSB100S FIB lift-out grid storage box with single clip
  • EM-Tec FSB100D FIB lift-out grid storage box with pair of band clips

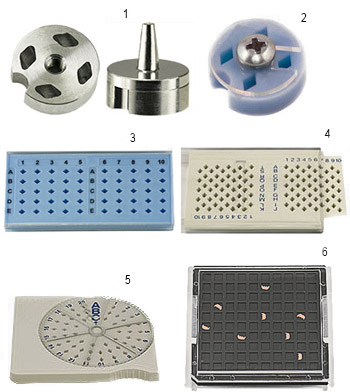

                                              A few examples


1- #28-001010 EM-Tec CGB-7 Aluminium Kryo Grid Box
2- #28-001004 EM-Tec EM-Tec CGB-4 Cryo grid box for 4 TEM grids
3- #28-001125 EM-Tec TGB-50 TEM Grid Aufbewahrungsboxen für 50 TEM Grids
4- #28-001099 Gilder SB100 TEM grid storage box for 100 TEM grid
5- #28-001050 Gilder SB50 TEM grid storage box for 50 TEM grids
6- #28-002100 EM-Tec FSB100S FIB lift-out grid storage box

Wide choice of practical TEM grid boxes for short term storage handling, shipping and long term storage of TEM grids and FIB lift-out grids. All offered TEM grid boxes include a clear plastic lid for easy grid location. The individual storage positions are either numbered or indexed for easy retrieval of the TEM grids. The complete choice of TEM boxes range from economy storage boxes to fully anti-static Gilder grid boxes include:

• EM-Tec practical, cost-efficient TEM grid boxes with 100 and 50 TEM grid capacity
• EM-Tec C1 full aluminium grid box for a single TEM grid or calibration TEM grid
• EM-Tec Cryo Grid boxes with a choice standard, pin type lid, premium and full aluminium grid boxes for 4 cryo grids
• EM-Tec AutoGrid full aluminium base and lid cryo grid box for 4 AutoGrids
• EM-Tec lift out grid boxes for 100 FIB lift out grids with single or double clip
• EM-Tec aluminium FA-4 FIB lift-out grid box for 4 lift-out grids
• Gilder TEM grid boxes with 100, 50 and 25 TEM grid capacity

Specifications and storage capacity of the TEM grid storage boxes

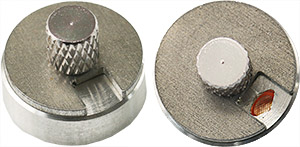

EM-Tec CG-1 aluminium grid box for single TEM grid or calibration grid The EM-Tec CG-1 aluminium grid box has been designed to store a calibration grid or a single TEM grid. All components are made from durable and anti-static aluminium. The robust aluminium body and lid can be easily cleaned and prevent contamination caused by hydrocarbons originating from plastics. The aluminium thumb screw allows for easy opening and secure closing of the lid. Can be easily stored in a clean vacuum chamber. Dimensions are Ø14 x 11mm. Product # Unit Price* Add to Quote / Order 28-001001 EM-Tec CG-1 aluminium grid box for single TEM grid or calibration grid Qty: each €22,50

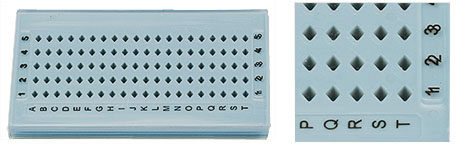

EM-Tec TGB-100 economy TEM grid storage box for 100 TEM grids Well-designed economy TEM grid box with a capacity of 100 the standard 3.05mm TEM grids. Ideal for long term storage. Body with the 100 storage cavities is made of blue anti-static ABS with a clear acrylic sliding lid. Positions are referenced with numbers and letters, clearly printed on the body. The sliding lid has also 5 positions printed on the inside to enable easy location. Wider spacing of the cavities prevent confusion when loading and make retrieval easier. Dimensions of the EM-Tec TGB-100 TEM grid box are: 92 x 55 x 7mm. Product # Unit Price* Add to Quote / Order 28-001127-1 EM-Tec TGB-100 economy TEM grid storage box for 100 TEM grids Qty: each €5,95 28-001127-12 EM-Tec TGB-100 economy TEM grid storage box for 100 TEM grids Qty: box/12 €69,50

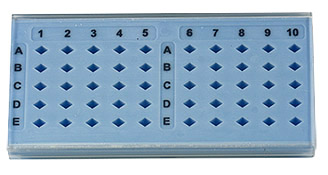

EM-Tec TGB-50 economy TEM grid storage box for 50 TEM grids Well-designed compact economy TEM grid box with a capacity of 50 the standard 3.05mm TEM grids. Ideal for transport and storage. Body with the 50 storage cavities is made of blue anti-static ABS with a clear acrylic sliding lid. Positions are referenced with numbers and letters, clearly printed on the body. Wider spacing of the cavities prevent confusion when loading and make retrieval easier. Dimensions of the EM-Tec TGB-50 TEM grid box are: 75 x 36 x 7mm. Product # Unit Price* Add to Quote / Order 28-001125-1 EM-Tec TGB-50 economy TEM grid storage box for 50 TEM grids Qty: each €5,20 28-001125-12 EM-Tec TGB-50 economy TEM grid storage box for 50 TEM grids Qty: box/12 €59,90

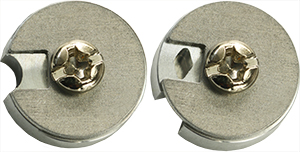

EM-Tec CGB-4A aluminum, fully cryo compatible cryo grid box for 4 TEM grids The EM-Tec CGB-4A aluminium cryo grid box is used with cryo vitrification systems. It is a round aluminium grid box with 4 diamond shaped positions, an index notch and an aluminium lid. The lid is held in place with a stainless steel Phillips pan head screw. The robust aluminum construction is fully cryo compatible and easy to clean with solvents or low power plasma. The EM-Tec CGB-4A is compatible with the TFS / FEI Vitrobot, Gatan CP3 / 3500 / 626 and Leica EM GP cryo systems. Dimensions of the EM-Tec CGB-8 are Ø14 x 7.3 mm. Screw size is M3x5mm. For handling the cryo grid box in LN2 we offer the EM-Tec 553.AM cryo grid box tweezers. Product # Unit Price* Add to Quote / Order 28-001009-1 EM-Tec CGB-4A aluminum, fully cryo compatible cryo grid box for 4 TEM grids Qty: each €19,50 28-001009-10 EM-Tec CGB-4A aluminum, fully cryo compatible cryo grid box for 4 TEM grids Qty: pkg/10 €185,00

EM-Tec CGB-4 Cryo grid box for 4 TEM grids The EM-Tec CGB-4 cryo grid box is used with cryo vitrification systems. It is a blue, round grid box with 4 diamond shaped positions, an index notch and a clear lid. The clear lid has a slot which can be rotated to access the cavities. It is held in place with a stainless steel #1 phillips pan head screw. The EM-Tec CGB-4 cryo grid box is compatible with the FEI Vitrobot, Gatan CP3, Gatan 3500, Gatan 626 and Leica EM GP cryo systems. Dimensions of the EM-Tec CGB-4 are Ø14 x 5.2mm. Screw size is M3x5mm. For handling the cryo grid box in LN2 we offer the EM-Tec 553.AM cryo grid box tweezers. Product # Unit Price* Add to Quote / Order 28-001004-1 EM-Tec CGB-4 cryo grid box for 4 TEM grids Qty: each €9,95 28-001004-10 EM-Tec CGB-4 cryo grid box for 4 TEM grids Qty: pkg/10 €94,50 28-001004-100 EM-Tec CGB-4 cryo grid box for 4 TEM grids Qty: pkg/100 €895,00

EM-Tec GB-4L clear lid for EM-Tec CGB-4 cryo grid box EM-Tec GB-4L clear lid for EM-Tec CGB-4 cryo grid box, used with cryo vitrification systems. Product # Unit Price* Add to Quote / Order 28-001005-10 EM-Tec GB-4L clear lid for EM-Tec CGB-4 cryo grid box Qty: pkg/10 €30,00

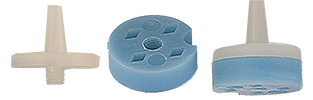

EM-Tec CGB-7 Cryo grid box for 4 TEM grids with pin type lid The EM-Tec CGB-7 cryo grid box is used with cryo vitrification systems. It is a blue, round grid box with 4 diamond shaped positions and a pin type lid. The EM-Tec CGB-7 cryo grid box is compatible with the FEI Vitrobot, Gatan CP3, Gatan 3500, Gatan 626 and Leica EM GP cryo systems.Dimensions of the EM-Tec CGB-7 are Ø14 x 13.5mm, M3 thread. EM-Tec CGT1 gripper tool for cryo grid box with pin type lid. Product # Unit Price* Add to Quote / Order 28-001007-1 EM-Tec CGB-7 cryo grid box for 4 TEM grids with pin type lid Qty: each €18,50 28-001007-10 EM-Tec CGB-7 cryo grid box for 4 TEM grids with pin type lid Qty: pkg/10 €176,00

EM-Tec GB-7L pin type lid for EM-Tec cryo grid box EM-Tec GB-7L pin type lid for EM-Tec GB-7 cryo grid box, used with cryo vitrification systems. Product # Unit Price* Add to Quote / Order 28-001008-1 EM-Tec GB-7L pin type lid for EM-Tec cryo grid box Qty: each €10,95 28-001008-10 EM-Tec GB-7L pin type lid for EM-Tec cryo grid box Qty: pkg/10 €104,00

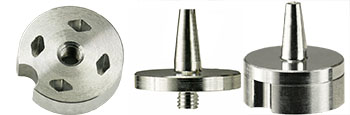

EM-Tec CGB-7A aluminium cryo grid box for 4 TEM grids with pin type lid The EM-Tec CGB-7A aluminium cryo grid box is used with cryo vitrification systems. It is a round grid box with 4 diamond shaped positions and a pin type lid. Both pin type lid and base are machined from solid aluminium. The EM-Tec CGB-7A aluminium cryo grid box is compatible with the FEI Vitrobot, Gatan CP3, Gatan 3500, Gatan 626 and Leica EM GP cryo systems.Dimensions of the EM-Tec CGB-7 are Ø14 x 13.5mm, M3 thread and include an index notch. For handling the pin lid we offer the EM-Tec CGT1 gripper tool for cryo grid box with pin type lid. Product # Unit Price* Add to Quote / Order 28-001010-1 EM-Tec CGB-7A aluminium cryo grid box for 4 TEM grids with pin type lid Qty: each €24,50 28-001010-10 EM-Tec CGB-7A aluminium cryo grid box for 4 TEM grids with pin type lid Qty: pkg/10 €232,00

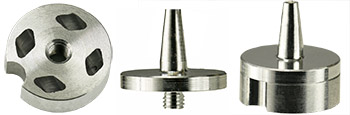

EM-Tec ACB-4A aluminium cryo grid box for 4 AutoGrids with pin type lid The EM-Tec ACB-4A aluminium cryo grid box is used for AutoGrids and cryo vitrification systems. It is a round aluminium grid box with 4 larger diamond shaped positions and an aluminium pin type lid. The EM-Tec ACB-4A aluminium cryo grid box for AutoGrids is compatible with the FEI Vitrobot, Gatan CP3, Gatan 3500, Gatan 626 and Leica EM GP cryo systems.Dimensions of the EM-Tec CGB-7 are Ø14 x 13.5mm, M3 thread and include an index notch. For handling the pin lid we offer the EM-Tec CGT1 gripper tool for cryo grid box with pin type lid. Product # Unit Price* Add to Quote / Order 28-001012-1 EM-Tec ACB-4A aluminium cryo grid box for 4 AutoGrids with pin type lid Qty: each €26,50 28-001012-10 EM-Tec ACB-4A aluminium cryo grid box for 4 AutoGrids with pin type lid Qty: pkg/10 €249,00

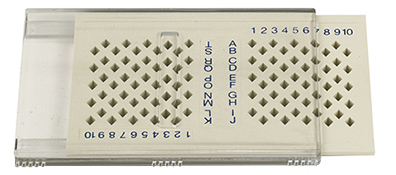

Gilder SB100 TEM grid storage box for 100 TEM grids The Gilder SB100 TEM grid storage box has a storage capacity for up to 100 standard 3.05mm TEM grids. This grid box has diamond shaped storage compartments and a clear plastic sliding lid with a window in the middle. The window in the lid reduces the amount of exposed grids. To improve grid handling the plastic boxes are made from anti-static materials; anti-static ABS for the box and anti-static CAB polymer for the lid. The ridges on the front and back further reduce static and provide a better grip of the lid at the back. Each storage position is referenced by printed letters and numbers printed on the SB100 grid box. Dimensions of the Gilder SB100 TEM grid box are: 85 x 60 x 7mm. Product # Unit Price* Add to Quote / Order 28-001099 Gilder SB100 TEM grid storage box for 100 TEM grids Qty: each €12,95 Quantity discount: 10 or more: €12,45 each

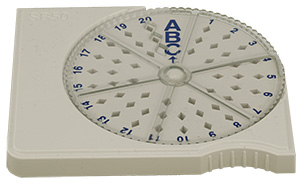

Gilder SB50 TEM grid storage box for 50 TEM grids The unique feature of the Gilder SB50 TEM grid storage box is the circular design with the clear plastic rotating lid. The opening in the lid expose only two or three grids at the time, depending on the position. This safety feature makes this grid box ideal for safe handling of sensitive TEM grids. Storage capacity in the diamond shaped compartments is up to 50 TEM grids. To improve grid handling the plastic boxes are made from anti-static ABS.for the box and anti-static CAB polymer for the lid. Each storage position is referenced by letters and numbers printed on the grid box. Ridges and grooves make these boxes stackable. Dimensions of the Gilder SB50 TEM grid box are: 75 x 65 x 7mm. Product # Unit Price* Add to Quote / Order 28-001050 Gilder SB50 TEM grid storage box for 50 TEM grids Qty: each €11,85 Quantity discount: 10 or more: €11,25 each

Gilder SB25 compakt TEM grid storage box for 25 TEM grids The compact Gilder SB25 TEM grid storage box has a stroage capapcity for up to 25 standard 3.05mm grid TEM grids. This grid box diamond shaped storage compartments and a clear plastic sliding lid. The SB25 box contains two side strips for easier handling during specimen removal and for annotation. Each storage position is referenced by letters and numbers molded on the SB25 grid box. Dimensions of the Gilder SB25 TEM grid box are: 57 x 36 x 6mm. Product # Unit Price* Add to Quote / Order 28-001025 Gilder SB25 compakt TEM grid storage box for 25 TEM grids Qty: each €4,95 Quantity discount: 10 or more: €4,75 each

EM-Tec FA-4 FIB lift-out grid box for 4 grids with coloured thumb screw The EM-Tec FA-4 aluminium FIB lift-out grid box has been especially designed for storing and transporting valuable FIB lift-out grids. The diamond shaped cavity is only 1.8mm deep to accommodate the valuable FIB lift out grids or half grids. The robust aluminium body and lid can be easily cleaned and prevent contamination caused by hydrocarbons originating from plastics. The aluminium thumb screw allows for easy opening and secure closing of the lid. Available with 4 different colours thumb screw to identify different samples. Dimensions are Ø14 x 11mm. Product # Unit Price* Add to Quote / Order 28-002004-M EM-Tec FA-4 FIB lift-out grid box for 4 grids with blue coloured thumb screw Qty: each €15,75 28-002004-R EM-Tec FA-4 FIB lift-out grid box for 4 grids with red coloured thumb screw Qty: each €15,75 28-002004-S EM-Tec FA-4 FIB lift-out grid box for 4 grids with black coloured thumb screw Qty: each €15,75 28-002004-Y EM-Tec FA-4 FIB lift-out grid box for 4 grids with gold coloured thumb screw Qty: each €15,75

EM-Tec FSB100S FIB lift-out grid storage box with single clip The EM-Tec FSB-100S FIB lift-out grid storage boxes consist of an anti-static tray to hold up to 100 FIB lift-out grids or 100 standard 3.05mm TEM grids. The grids are to be stored flat in the tray. The tray is made from anti-static black conductive polypropylene. Complete with a clear polystyrene cover to enable easy location of the grids. The grids are stored in a 10x10 individual storage compartments array with a flat on one corner as a reference. The tray and cover are held together with a single piece slide-on PE clip which holds the cover on two sides. Dimensions are 51 x 55 x 11mm; stackable design with ridges and grooves. Product # Unit Price* Add to Quote / Order 28-002100 EM-Tec FSB100S FIB lift-out grid storage box with single clip Qty: each €7,50 Quantity discount: 10 or more: €7,10 each

EM-Tec FSB100D FIB lift-out grid storage box with pair of band clips The EM-Tec FSB-100D FIB lift-out grid storage boxes consist of an anti-static tray to hold up to 100 FIB lift-out grids or 100 standard 3.05mm TEM grids. The grids are to be stored flat in the tray. The tray is made from anti-static black conductive polypropylene. Complete with a clear polystyrene cover to enable easy location of the grids. The grids are stored in a 10x10 individual storage compartments array with a flat on one corner as a reference. The tray and cover are held together with a pair of PE band clips which assets more pressure in the centre of the cover to reduce the possibility of a gap. Preferred for transport and shipping. Dimensions are 51 x 55 x 11mm. Product # Unit Price* Add to Quote / Order 28-002200 EM-Tec FSB100D FIB lift-out grid storage box with pair of band clips Qty: each €7,75 Quantity discount: 10 or more: €7,30 each
