EM-Tec field and lab sampler kits and boxes
EM-Tec field and lab sampler kits and boxes

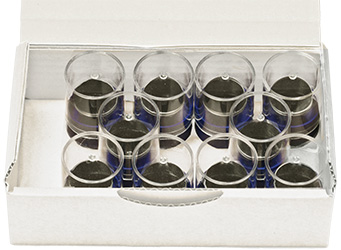

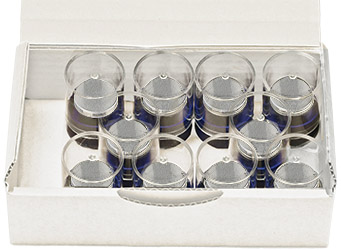

#15-008212 box with 10 x Ø12.7mm pin stubs
plus Ø12mm high purity conductive tabs in SB2 storage tubes
#15-008202 sampler with Ø25.4mm pin stub and
Ø25mm high purity conductive tab in a storage tube
Introduction
The EM-Tec field and lab sampler kits consist of a pin stub, a mounted EM-Tec high purity adhesive carbon tab and an EM-Tec SB type storage tube. The pin stub with the adhesive carbon tab are stored in the cap of the storage tube. To protect the adhesive carbon tab against contamination, the carbon tab remains covered with a protective foil (remove plastic cover prior to use). The EM-Tec sampler kits are also available with a non-conductive adhesive tab.
The EM-Tec sampler kits are ideal for collecting powders, fibers, fragments, small particles, etc. on the adhesive, conductive carbon tab for subsequent analysis with SEM/EDS system or with a light microscope.
Application fields for EM-Tec SEM field sampler kits are:
- Asbestos analysis
- Environmental and forensic sampling
- Collection of fibres
- Particle sampling
- Collection of paint chips or glass fragments
- Collection of filter residues
- Powder samples
- Gunshot residue (GSR) collection

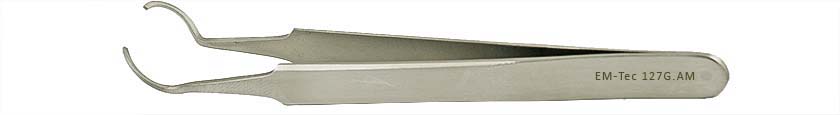

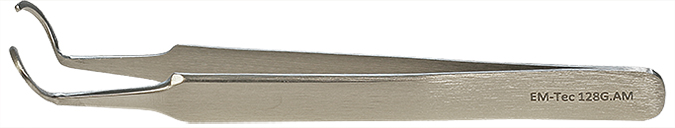

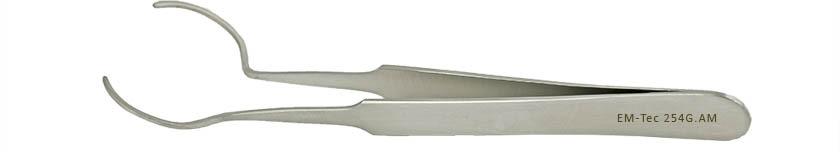

Sampling is best done with the pin stub still in the plastic cap; remove the protective plastic cover from the adhesive tabs just before use. Replace the clear tube directly after sampling. For placing the pin stubs in the SEM, it is highly recommended to use the EM-Tec SEM pins tub grippers which are specifically designed to handle the pin stubs.
Availability and capacity of the EM-Tec SEM and LM field sampler kits and boxes with conductive tabs:
| Product # | Type |
Capacity |
Stub Ø |
Stor. tube |
Tab type / Ø |
Pin length |
EM-Tec FS1 |
Single |
12.7mm |
EM-Tec SB1 |
Carbon / 12mm |
Standard 8mm |
|
EM-Tec FS10 |
Box / 10 |
12.7mm |
EM-Tec SB1 |
None |
Standard 8mm |
|
EM-Tec FS12 |
Box / 10 |
12.7mm |
EM-Tec SB1 |
Carbon / 12mm |
Standard 8mm |
|
EM-Tec FS2 |
Single |
25.4mm |
EM-Tec SB3 |
Carbon / 25mm |
Standard 8mm |
|
EM-Tec FS20 |
Box/10 |
25.4mm |
EM-Tec SB3 |
None |
Standard 8mm |
|
EM-Tec FS25 |
Box/10 |
25.4mm |
EM-Tec SB3 |
Carbon / 25mm |
Standard 8mm |
|
EM-Tec FS1Z |
Single |
12.7mm |
EM-Tec SB1 |
Carbon / 12mm |
Short 5.9mm |
|
EM-Tec FS10Z |
Box / 10 |
12.7mm |
EM-Tec SB1 |
None |
Short 5.9mm |
|
EM-Tec FS12Z |
Box / 10 |
12.7mm |
EM-Tec SB1 |
Carbon / 12mm |
Short 5.9mm |
|
EM-Tec FS2Z |
Single |
25.4mm |
EM-Tec SB3 |
Carbon / 25mm |
Short 5.9mm |
|
EM-Tec FS20Z |
Box/10 |
25.4mm |
EM-Tec SB3 |
None |
Short 5.9mm |
|
EM-Tec FS25Z |
Box/10 |
25.4mm |
EM-Tec SB3 |
Carbon / 25mm |
Short 5.9mm |
|
EM-Tec LM1 |
Single |
12.7mm |
EM-Tec SB1 |
Non-cond. / 12mm |
Standard 8mm |
|
EM-Tec LM11 |
Box / 10 |
12.7mm |
EM-Tec SB1 |
Non-cond. / 12mm |
Standard 8mm |
Ordering information EM-Tec SEM and LM field sampler kits and boxes with standard pin stubs
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|||||||||||||||||
|
|||||||||||||||||
|
|||||||||||||||||
|
|||||||||||||||||
