EM-Tec Multiple pin stub holders
EM-Tec Multiple pin stub holders

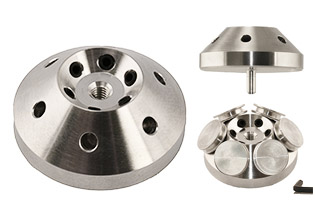

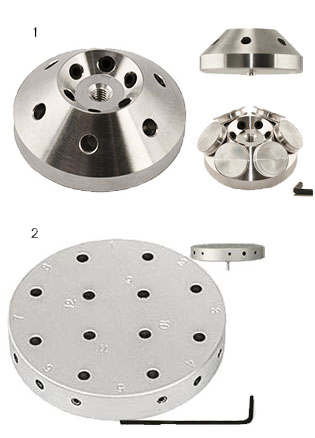

1: #12-000346 EM-Tec P6/45 multi pin stub holder
Ø45° for 6 pin stubs, Ø35x14mm with M4 thread.
2: #12-000219 EM-Tec P12 multi pin stub holder for 12 pin stubs,
Ø62x10.5mm with pin.
<Introduction

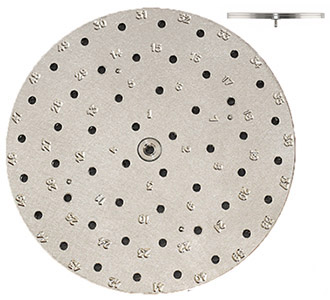

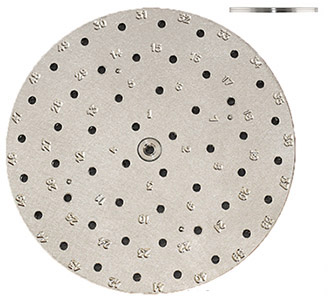

The Em-Tec multiple pin stub holders are an efficient and cost-effective way to load multiple pin stubs with specimens in the SEM. Saves time, allows multi sample processing or quickly comparing samples against each other. Intended for holding the standard 12.7mm (1/2”) pin stubs, although the larger 25.4mm (1”)pin stubs can be used on the holders for 6 pin stubs or more. All the positions on the EM-Tec multiple pin stub holders for 6 pin stubs or more are numbered for easy identification and. Pin stubs are securely held with small M3 stainless steel set screws for the multi pin stub holders up to 12 pin stubs; an allen key is included. On the 29 and 49 multi pin stub holders, the pin stubs are held with an integrated stainless steel spring. The 6 and 8 multi pin holders comprise engraved crossed lines to assist with directional navigation. They are all made from vacuum grade aluminium and have undergone a final cleaning step which results in a satin surface finish. Available with:
- standard pin to fit on SEMs which use the standard pin; FEI, Philips, Tescan, Phenom, Aspex, RJLee, AmRay, Cambridge Instruments, Leica, CamScan, Aspex, ETEC and Novascan SEMs
- M4 threaded hole; compatible with Hitachi SEMs, FESEMs and table top SEMs and with the EM-Tec versatile SEM stage adapters
- 32mm JEOL SEM stub format, compatible with 32mm stub holders on JEOL SEMs
Additionally there are two 45 degrees pre-tilt multi-pin holders available:

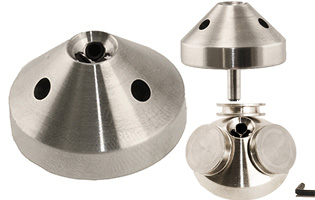

- 3 x 45° pin stub holders

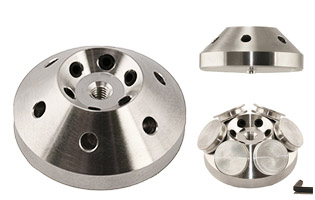

- 6 x 45° pin stub holders
Both with pin and M4 threaded hole.
Special version for 7 x 25.4mm pin stubs is available as well:

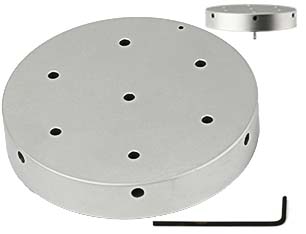

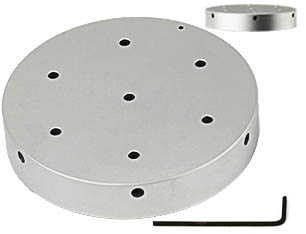

EM-Tec P7
Product numbers |
Name |
Pin stubs |
Dimensions w/o pin |
Pin securing method |
SEM stage compatibility |
EM-Tec P4 |
4 |
Ø31.5x10.5mm |
Set screw |
Standard 3.2mm pin |
|
EM-Tec P4 |
4 |
Ø31.5x10.5mm |
Set screw |
M4 thread |
|
EM-Tec P4 |
4 |
Ø31.5x10.5mm |
Set screw |
JEOL 32mm SEM stub |
|
EM-Tec P6 |
7 |
Ø43x14.5mm |
Set screw |
Standard 3.2mm pin |
|
EM-Tec P6 |
7 |
Ø43x14.5mm |
Set screw |
M4 thread |
|
EM-Tec P8 |
8 |
Ø50x10.5mm |
Set screw |
Standard 3.2mm pin |
|
EM-Tec P8 |
8 |
Ø50x10.5mm |
Set screw |
M4 thread |
|
EM-Tec P12 |
12 |
Ø62x10.5mm |
Set screw |
Standard 3.2mm pin |
|
EM-Tec P12 |
12 |
Ø62x10.5mm |
Set screw |
M4 thread |
|

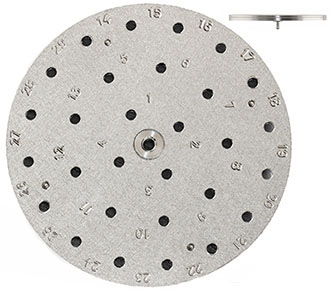

EM-Tec P29 |
29 |
Ø90x7mm |
Internal spring |
Standard 3.2mm pin |
|

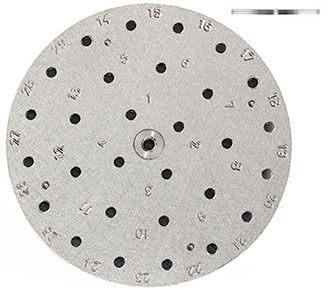

EM-Tec P29 |
29 |
Ø90x5mm |
Internal spring |
M4 thread |
|
EM-Tec P49 |
49 |
Ø117x7mm |
Internal spring |
Standard 3.2mm pin |
|
EM-Tec P49 |
49 |
Ø117x5mm |
Internal spring |
M4 thread |
|
EM-Tec P3/45 |
3 x 45° |
Ø25x14mm |
Set screw |
Standard 3.2mm pin |
|
EM-Tec P3/45 |
3 x 45° |
Ø25x14mm |
Set screw |
M4 thread |
|
EM-Tec P6/45 |
6 x 45° |
Ø35x14mm |
Set screw |
Standard 3.2mm pin |
|
EM-Tec P6/45 |
6 x 45° |
Ø35x14mm |
Set Screw |
M4 thread |
|
EM-Tec P7 |
7x25.4 |
Ø78x15mm |
Set Screw |
Standard 3.2mm pin |
|
EM-Tec P7 |
7x25.4 |
Ø78x15mm |
Set Screw |
M4 thread |
Ordering Information for EM-Tec multiple pin stub holders for SEMs using pin stubs; TFS, FEI, Philips, Zeiss, LEO Tescan, AmRay, Pemtron, Coxem, Aspex, RJLee, Cambridge Instruments, Leica, and CamScan
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
