EM-Tec SEM stub gripper tweezers
EM-Tec SEM stub gripper tweezers
special tweezers for SEM stubs and mounts

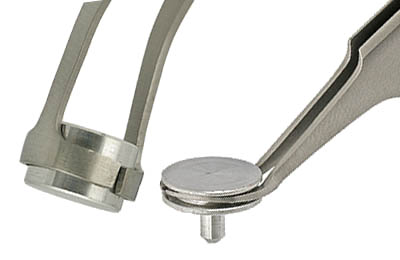

The EM-Tec SEM stub gripper tweezers are specially designed tweezers to securely grip SEM stubs and mounts. With the EM-Tec SEM stub gripper tweezers, SEM sample stubs and mounts can be handled without touching them by hand. Ideal for clean handling and to avoid contamination issues. The SEM stub gripper tweezers are all made from anti-magnetic stainless steel and are clean room compatible. The selection of the EM-Tec SEM stub gripper tweezers comprises gripper tweezers for:
- grooved pin stubs with 12.7mm, 25.4, 19 and 32mm head diameter
- JEOL cylinder stubs with 9.5, 12.2, 25 and 32mm diameter
- Hitachi cylinder stubs with 15, 25 and 32mm diameter.
The EM-Tec SEM stub gripper tweezers tips for the grooved pin stubs fit directly in the groove of the SEM stub; the angle between tip and handle is 30°, 45° or 60° for the 12.7mm head diameter and 45° for the other sizes. The EM-Tec SEM stub grippers for the cylinder stubs are designed to grip the SEM cylinder stubs from above; the angle between tip and handle is 30°.

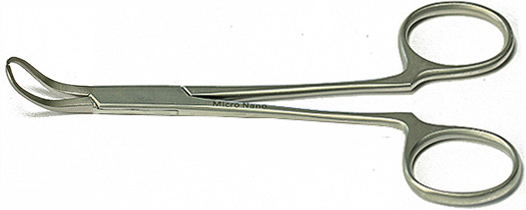

For the grooved Ø12.7 and Ø25.4mm pin stubs, there are also scissor type SEM stub grippers available; the provide a stronger grip than the tweezers style stub gripper. The scissor type SEM stub grippers are made from anti-magnetic stainless steel.
The SEM stub grippers can also be use to pick up a variety of other type of samples with similar diameters as the SEM stubs. Metallographic embedding of 25 and 30mm or 1” and 1-1/4” can be handled or used when etching the surface of the samples. Substrate discs can be picked up at the edge.
Product # |
Style |
Material |
Application |
Angle |
Length |
126G.AM tweezers |
Anti-magn, st.st. |
Grooved pin stubs Ø12.7mm (1/2”) |
30° |
120mm |
|
127G.AM tweezers |
Anti-magn, st.st. |
Grooved pin stubs Ø12.7mm (1/2”) |
45° |
120mm |
|
128G.AM tweezers |
Anti-magn, st.st. |
Grooved pin stubs Ø12.7mm (1/2”) |
60° |
120mm |
|
190G.AM tweezers |
Anti-magn, st.st. |
Grooved pin stubs Ø19mm (3/4”) |
45° |
120mm |
|
254G.AM tweezers |
Anti-magn, st.st. |
Grooved pin stubs Ø25.4mm (1”) |
45° |
120mm |
|

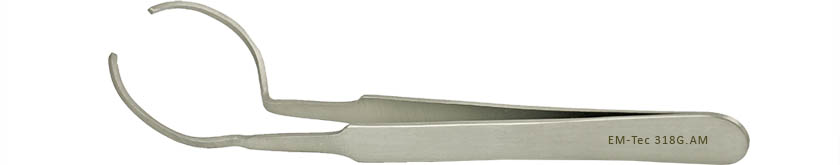

318G.AM tweezers |
Anti-magn, st.st. |
Grooved pin stubs Ø32mm (1-1/4”) |
45° |
115mm |
|
12.AM scissors type |
Anti-magn, st.st. |
Grooved pin stubs Ø12.7mm (1/2”) |
45° |
92mm |
|
12L.AM scissors type |
Anti-magn, st.st. |
Grooved pin stubs Ø12.7mm (1/2”) |
45° |
140mm |
|
25.AM scissors type |
Anti-magn, st.st. |
Grooved pin stubs Ø25.4mm (1”) |
45° |
135mm |
|
95.AM tweezers |
Anti-magn, st.st. |
JEOL cylinder stubs Ø9.5mm |
30° |
114mm |
|
122.AM tweezers |
Anti-magn, st.st. |
JEOL cylinder stubs Ø12.2mm |
30° |
120mm |
|
150.AM tweezers |
Anti-magn, st.st. |
Hitachi and ISI cylinder stubs Ø15mm |
30° |
120mm |
|
250.AM tweezers |
Anti-magn, st.st. |
JEOL and Hitachi cylinder stubs Ø25mm |
30° |
115mm |
|
320.AM tweezers |
Anti-magn, st.st. |
JEOL and Hitachi cylinder stubs Ø32mm |
30° |
115mm |
Technical Support Bulletin: Material for EM-Tec SEM stub gripper tweezers.
Ordering SEM stub gripper tweezers for pin stubs with a groove
|
|||||||||||||||||
|
|||||||||||||||||
|
|||||||||||||||||
|
|||||||||||||||||
|
|||||||||||||||||
|
|||||||||||||||||
|
|||||||||||||||||
|
|||||||||||||||||
|
|||||||||||||||||
|
|||||||||||||||||
|
|||||||||||||||||
|
|||||||||||||||||
|
|||||||||||||||||
|
|||||||||||||||||
