Micro-Tec fine needle probes and probe holders
ideal for probing and sample preparation
Introduction
a few examples

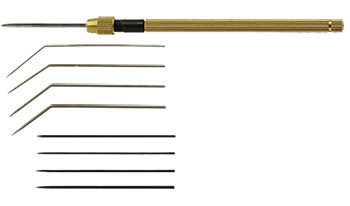

The Micro-Tec fine needle probes and needle probe holders offer a practical and affordable solution for probing, marking, scribing, picking, sorting and cleaning in microscopy, experimentation, research, sample preparation and assembly applications. Two type of probe holders four types of fine needle probes and two types of ultra-fine needle probes are offered to cover a wide range of applications. In addition, they are also available in combination sets.
Micro-Tec PV1 and PV5 needle probe holders
There are two types Micro-Tec needle probe holders with precision steel collets to accommodate the Micro-Tec needle probes:
- Micro-Tec PV1 standard brass needle probe holder comprises a grooved brass body for improved grip and a tool steel collet for holding probes from 0.1 to 0.65mm diameter. Collet chuck is made from brass. Length is 95mm, body diameter is 5mm
- Micro-Tec PV5 long and sleek stainless steel probe holder for probes from 0.1 to 0.65mm diameter. Body, collet and collet chuck are all made from stainless steel. Length is 152mm, body diameter is 4mm. Intended for use with microscopes.
Micro-Tec fine and ultra-fine needle probes
The choice of Micro-Tec fine needle probe includes:
- Stainless steel fine needle probes, straight and angled
- Black enameled steel fine needle probes, straight
- Carbon tool steel fine needle probe, straight
- Ultra-fine tungsten probes, straight and angled
1 - Micro-Tec stainless steel fine needle probes exhibit good corrosion resistance and can be used in aqueous solutions. They tend to be more flexible and are suitable for probing, sorting, cleaning and picking. These needle probes can be bend up to 90° if needed. Available stainless steel needle probes are:
- Straight stainless steel sharp pointed fine needle probes with 0.25, 0.35, 0.45 and 0.55mm diameter, 35mm long
- Angled stainless steel sharp pointed fine needle probes with 0.25, 0.35, 0.45 and 0.55mm diameter, 35mm long
2 - Micro-Tec black enameled fine needle probes provide a better contrast against a light background or parts. They are flexible and suitable for probing, sorting, cleaning and picking. These needle probes can be bend to a slight angle. Available black enameled needle probes are:
- Straight black enameled steel sharp pointed fine needle probes with 0.25, 0.35, 0.45 and 0.55mm diameter, 35mm long
3 - Micro-Tec hardened carbon tool steel fine needle probe is more rigid and harder than stainless steel probes. They are useful for probing, marking, scribing and cleaning.
- Fine pointed straight hardened carbon tool steel needle probe with 0.40mm diameter, 28mm long. Nickel plated for improved corrosion resistance.
4 - Micro-Tec ultra-fine tungsten needles probes with a 0.6µm tip radius are useful for probing and manipulating samples under a microscope. The ultra-fine tungsten probe are hard, rigid and wear resistant.
- Ultra-fine straight tungsten needle probe with 0.52mm diameter and a 0.6µm tip radius, 25mm long
- Ultra-fine angled tungsten needle probe with 0.52mm diameter and a 0.6µm tip radius, 25mm long
All Micro-Tec needles probes can be used with either of the Micro-Tec needle probe holders, micro-manipulators, probe holders or precision pin vises compatible with 0.25-0.55mm probe diameters.
With their small diameters, the Micro-Tec probe holders are compatible with a variety of micro manipulators.
The available Micro-Tec probe sets are:
Micro-Tec PS1: Micro-Tec PV1 probe holder with 2 of each size of the straight stainless steel needle probes
Micro-Tec PS2: Micro-Tec PV1 probe holder with 2 of each size of the angled stainless steel needle probes
Micro-Tec PS3: Micro-Tec PV1 probe holder with 2 of each size of the straight black enameled needle probes
Micro-Tec PS5: Micro-Tec PV1 probe holder with 10 each fine carbon tool steel needle probes
Micro-Tec PS8: Micro-Tec PV1 probe holder with ultra-fine straight needle probe
Micro-Tec PS9: Micro-Tec PV1 probe holder with ultra-fine angled needle probe
Ordering information for Micro-Tec probe holders
*Prices without VAT, but within the EU, we have to check for valid VAT-ID.
 |
Micro-Tec PV1 precision probe holder for probe diameters 0.1-0.65mm, brass/steel, 95mm long |
| Product # |
Unit |
Price* |
Add to Quote / Order |
| 52-001000 |
Micro-Tec PV1 precision probe holder for probe diameters 0.1-0.65mm, brass/steel, 95mm long |
|
| each |
€6,85
|
|
|
 |
Micro-Tec PV5 long probe holder for probe diameters 0.1-0.65mm, stainless steel, 152mm long |
| Product # |
Unit |
Price* |
Add to Quote / Order |
| 52-001005 |
Micro-Tec PV5 long probe holder for probe diameters 0.1-0.65mm, stainless steel, 152mm long |
|
| each |
€12,50
|
|
|
Ordering information for Micro-Tec stainless steel fine needle probes and sets
*Prices without VAT, but within the EU, we have to check for valid VAT-ID.
 |

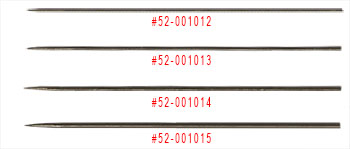

Micro-Tec straight fine needle probes and set, stainless steel |
| Product # |
Unit |
Price* |
Add to Quote / Order |
| 52-001012 |
Micro-Tec N2 straight fine needle probe Ø 0.25mm, stainless steel, 35mm long |
|
| pkg/10 |
€6,50
|
| 52-001013 |
Micro-Tec N3 straight fine needle probe Ø0.35mm, stainless steel, 35mm long |
|
| pkg/10 |
€6,50
|
| 52-001014 |
Micro-Tec N4 straight fine needle probe Ø0.45mm, stainless steel, 35mm long |
|
| pkg/10 |
€6,50
|
| 52-001015 |
Micro-Tec N5 straight fine needle probe Ø0.55mm, stainless steel, 35mm long |
|
| pkg/10 |
€6,50
|
| 52-001019 |
Micro-Tec NS set of straight fine needle probes, stainless steel, 2x ea Ø0.25/0.35/0.45/0.55mm |
|
| set/8 |
€7,50
|
|
|
 |

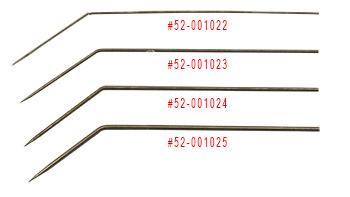

Micro-Tec angled fine needle probes and set, stainless steel |
| Product # |
Unit |
Price* |
Add to Quote / Order |
| 52-001022 |
Micro-Tec NA2 angled fine needle probe Ø0.25mm, stainless steel, 35mm long |
|
| pkg/10 |
€7,80
|
| 52-001023 |
Micro-Tec NA3 angled fine needle probe Ø0.35mm, stainless steel, 35mm long |
|
| pkg/10 |
€7,80
|
| 52-001024 |
Micro-Tec NA4 angled fine needle probe Ø0.45mm, stainless steel, 35mm long |
|
| pkg/10 |
€7,80
|
| 52-001025 |
Micro-Tec NA5 angled fine needle probe Ø0.55mm, stainless steel, 35mm long |
|
| pkg/10 |
€7,80
|
| 52-001029 |
Micro-Tec NAS set of angled fine needle probes, stainless steel, 2x ea Ø0.25/0.35/0.45/0.55mm |
|
| set/8 |
€8,80
|
|
|
 |

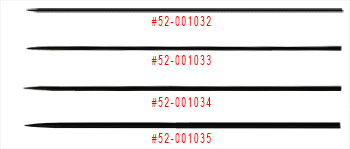

Micro-Tec straight fine needle probes and set, black enameled steel |
| Product # |
Unit |
Price* |
Add to Quote / Order |
| 52-001032 |
Micro-Tec B2 straight fine needle probe Ø0.25mm, black enameled steel, 35mm long |
|
| pkg/10 |
€6,85
|
| 52-001033 |
Micro-Tec B3 straight fine needle probe Ø0.35mm, black enameled steel, 35mm long |
|
| pkg/10 |
€6,85
|
| 52-001034 |
Micro-Tec B4 straight fine needle probe Ø0.45mm, black enameled steel, 35mm long |
|
| pkg/10 |
€6,85
|
| 52-001035 |
Micro-Tec B5 straight fine needle probe Ø0.55mm, black enameled steel, 35mm long |
|
| pkg/10 |
€6,85
|
| 52-001039 |
Micro-Tec BS straight fine needle probe 0.25mm, black enameled, 2x ea Ø0.25/0.35/0.45/0.55mm |
|
| set/8 |
€7,85
|
|
|
 |

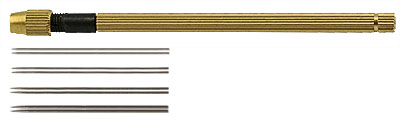

Micro-Tec PS1 probe set with Micro-Tec PV1 probe holder and Micro-Tec NS set of 8 fine pointed straight stainless steel needle probes |
| Product # |
Unit |
Price* |
Add to Quote / Order |
| 52-001011 |
Micro-Tec PS1 probe set with Micro-Tec PV1 probe holder and Micro-Tec NS set of 8 fine pointed straight stainless steel needle probes |
|
| set |
€14,00
|
|
|
 |

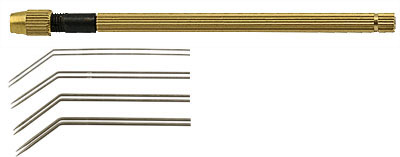

Micro-Tec PS2 probe set with Micro-Tec PV1 probe holder and Micro-Tec NAS set of 8 fine pointed angled stainless steel needle probes |
| Product # |
Unit |
Price* |
Add to Quote / Order |
| 52-001021 |
Micro-Tec PS2 probe set with Micro-Tec PV1 probe holder and Micro-Tec NAS set of 8 fine pointed angled stainless steel needle probes |
|
| set |
€15,00
|
|
|
 |

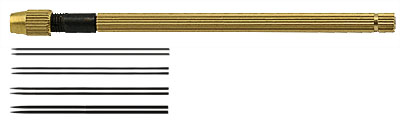

Micro-Tec PS3 probe set with Micro-Tec PV1 probe holder and Micro-Tec BS set of 8 fine pointed straight black enameled steel needle probes |
| Product # |
Unit |
Price* |
Add to Quote / Order |
| 52-001031 |
Micro-Tec PS3 probe set with Micro-Tec PV1 probe holder and Micro-Tec BS set of 8 fine pointed straight black enameled steel needle probes |
|
| set |
€13,50
|
|
|
Ordering information for Micro-Tec hardened carbon tool steel fine needle probes and set
*Prices without VAT, but within the EU, we have to check for valid VAT-ID.
 |
Micro-Tec C5 straight fine needle probe Ø0.40mm, nickel plated carbon tool steel, 28mm long |
| Product # |
Unit |
Price* |
Add to Quote / Order |
| 52-001043 |
Micro-Tec C5 straight fine needle probe Ø0.40mm, nickel plated carbon tool steel, 28mm long |
|
| pkg/10 |
€7,00
|
|
|
 |

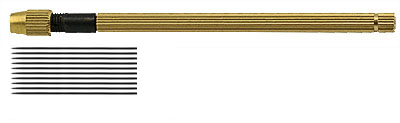

Micro-Tec PS5 probe set with Micro-Tec PV1 probe holder and Micro-Tec C5 carbon steel needle probes (Pkg/10) |
| Product # |
Unit |
Price* |
Add to Quote / Order |
| 52-001041 |
Micro-Tec PS5 probe set with Micro-Tec PV1 probe holder and Micro-Tec C5 carbon steel needle probes (Pkg/10) |
|
| each |
€13,50
|
|
|
Ordering information for Micro-Tec ultra-fine tungsten needle probes and set
*Prices without VAT, but within the EU, we have to check for valid VAT-ID.
 |
Micro-Tec T5 straight ultra-fine tungsten needle probe, Ø0.52mm with 0.6µm tip, 25mm long |
| Product # |
Unit |
Price* |
Add to Quote / Order |
| 52-001044 |
Micro-Tec T5 straight ultra-fine tungsten needle probe, Ø0.52mm with 0.6µm tip, 25mm long |
|
| each |
€16,45
|
|
|
 |
Micro-Tec TA5 angled ultra-fine tungsten needle probe, Ø0.52mm with 0.6µm tip, 25mm long |
| Product # |
Unit |
Price* |
Add to Quote / Order |
| 52-001045 |
Micro-Tec TA5 angled ultra-fine tungsten needle probe, Ø0.52mm with 0.6µm tip, 25mm long |
|
| each |
€16,95
|
|
|
 |
Micro-Tec PS8 probe set with Micro-Tec PV1 probe holder and Micro-Tec T5 straight ultra-fine tungsten needle probe |
| Product # |
Unit |
Price* |
Add to Quote / Order |
| 52-001048 |
Micro-Tec PS8 probe set with Micro-Tec PV1 probe holder and Micro-Tec T5 straight ultra-fine tungsten needle probe |
|
| each |
€23,00
|
|
|
 |
Micro-Tec PS9 probe set with Micro-Tec PV1 probe holder and Micro-Tec TA5 angled ultra-fine tungsten needle probe |
| Product # |
Unit |
Price* |
Add to Quote / Order |
| 52-001049 |
Micro-Tec PS9 probe set with Micro-Tec PV1 probe holder and Micro-Tec TA5 angled ultra-fine tungsten needle probe |
|
| each |
€23,50
|
|
|
