EM-Tec KF / NW stainless steel thread adapters to BSPT, NPT and metric ISO thread
Adapters to widely used pipe threads

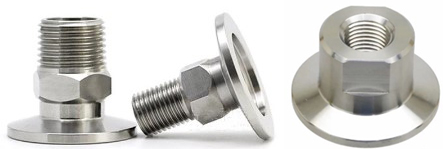

examples
Introduction
The EM-Tec stainless vacuum thread adapters allow for connecting standard NW/KF vacuum hardware onto installed vacuum lines, pipes, fittings and machines. We offer three different types of KF/NW thread adapters:
- BSPT (British Standard Pipe) thread. It is a tapered thread (BSPT) and the diameter or size is denoted by the letter R which relates to the internal pipe diameter. The flank angle is 55 degrees. BSPT (tapered) is not compatible with BSPP (G) thread.
- NPT (National Pipe Taper) thread. NPT is defined by ANSI/ASME (American) standard B1.20.1. It is a tapered thread with a flank angle of 60 degrees. The diameter or size related to the internal diameter of the pipe. NPT thread is not compatible with BSP thread.
- Metric thread is a fine parallel thread either M20 or M14 with a pitch of 1.5mm. It is an ISO metric thread with a flank angle of 60 degrees. The female metric thread adapters are used for connecting pressure gauges.
Ordering information for the EM-Tec KF/NW stainless steel thread adapters to BSPT pipe thread
*Prices without VAT, but within the EU, we have to check for valid VAT-ID.
 |
EM-Tec KF vacuum flange adapters to BSPT female thread, stainless steel |
| Product # |
Unit |
Price* |
Add to Quote / Order |
| 61-110061-1604 |
EM-Tec DN16KF adapter to 1/2inch BSPT female thread, 304 stainless steel |
|
| each |
€15,50
|
| 61-110061-2508 |
EM-Tec DN25KF adapter to 1 inch BSPT female thread, 304 stainless steel |
|
| each |
€18,50
|
|
|
 |
EM-Tec DN-KF flange adapter with male BSPT thread, 304 stainless steel |
| Product # |
Unit |
Price* |
Add to Quote / Order |
| 61-110161-1604 |
EM-Tec DN16KF adapter to 1/2 inch BSPT male thread , 304 stainless steel |
|
| each |
€19,50
|
| 61-110161-2508 |
EM-Tec DN25KF adapter to 1 inch BSPT male thread , 304 stainless steel |
|
| each |
€19,50
|
|
|
Ordering information for the EM-Tec KF/NW thread adapters to NPT pipe thread
*Prices without VAT, but within the EU, we have to check for valid VAT-ID.
 |
EM-Tec KF vacuum flange adapters to 1/8 inch NPT female thread, 304 stainless steel |
| Product # |
Unit |
Price* |
Add to Quote / Order |
| 61-110003-16 |
DN16KF adapter to 1/8inch NPT female thread, 304 stainless steel |
|
| each |
€26,75
|
| 61-110003-25 |
DN25KF adapter to 1/8inch NPT female thread, 304 stainless steel |
|
| each |
€28,50
|
| 61-110003-40 |
DN40KF adapter to 1/8inch NPT female thread, 304 stainless steel |
|
| each |
€35,00
|
|
|
|
|
EM-Tec KF vacuum flange adapters to 1/4 inch NPT female thread, 304 stainless steel |
| Product # |
Unit |
Price* |
Add to Quote / Order |
| 61-110006-16 |
DN16KF adapter to 1/4 inch NPT female thread, 304 stainless steel |
|
| each |
€28,75
|
| 61-110006-25 |
DN25KF adapter to 1/4 inch NPT female thread, 304 stainless steel |
|
| each |
€32,50
|
| 61-110006-40 |
DN40KF adapter to 1/4 inch NPT female thread, 304 stainless steel |
|
| each |
€38,50
|
|
|
 |
EM-Tec KF NPT male thread adapters for making KF/NW vacuum flange adapters to NPT male thread, stainless steel |
| Product # |
Unit |
Price* |
Add to Quote / Order |
| 61-110009-3 |
1/8i nch NPT male/male thread adapter, 304 stainless steel |
|
| each |
€9,00
|
| 61-110009-6 |
1/4 inch NPT male/male thread adapter, 304 stainless steel |
|
| each |
€9,00
|
|
|
Ordering information for the EM-Tec KF/NW stainless steel thread adapters to metric ISO thread
*Prices without VAT, but within the EU, we have to check for valid VAT-ID.
 |
EM-Tec KF vacuum flange adapters to fine metric ISO female thread, 304 stainless steel |
| Product # |
Unit |
Price* |
Add to Quote / Order |
| 61-110060-1614 |
EM-Tec DN16KF adapter to ISO metric M14 x 1.5mm female thread, 304 stainless steel |
|
| each |
€31,50
|
| 61-110060-1620 |
EM-Tec DN16KF adapter to ISO metric M20 x 1.5mm female thread, 304 stainless steel |
|
| each |
€31,50
|
| 61-110060-2514 |
EM-Tec DN25KF adapter to ISO metric M14 x 1.5mm female thread, 304 stainless steel |
|
| each |
€35,50
|
| 61-110060-2520 |
EM-Tec DN25KF adapter to ISO metric M20 x 1.5mm female thread, 304 stainless steel |
|
| each |
€35,50
|
|
|
 |
EM-Tec KF vacuum flange adapters to fine metric ISO male thread, 304 stainless steel |
| Product # |
Unit |
Price* |
Add to Quote / Order |
| 61-110160-1614 |
EM-Tec DN16KF adapter to ISO metric M14 x 1.5mm male thread, 304 stainless steel |
|
| each |
€36,50
|
| 61-110160-1620 |
EM-Tec DN16KF adapter to ISO metric M20 x 1.5mm male thread, 304 stainless steel |
|
| each |
€36,50
|
| 61-110160-2514 |
EM-Tec DN25KF adapter to ISO metric M14 x 1.5mm male thread, 304 stainless steel |
|
| each |
€39,75
|
| 61-110160-2520 |
EM-Tec DN25KF adapter to ISO metric M20 x 1.5mm male thread, 304 stainless steel |
|
| each |
€39,75
|
|
|
