SEM pin stubs
EM-Tec SEM stage adapters
EM-Tec metallographic mounts

EM-Tec filter disc holders for SEM / EDS analysis

•
• With standard 3.2 mm pin  |
  • EM-Tec F13 filter disc holder for Ø13mm filters, pin
  • EM-Tec F25 filter disc holder for Ø25mm filters, pin
  • EM-Tec F35 filter disc holder for Ø35mm filters, pin
  • EM-Tec F47 filter disc holder for Ø47mm filters, pin
  • EM-Tec F76 filter disc holder for Ø76mm filters, pin
  • EM-Tec F90 filter disc holder for Ø90mm filters, pin
  • EM-Tec XL100 multi holder for large pin stubs or pin type sample holders, pin
• With M4 thread  |
  • EM-Tec F13 filter disc holder for Ø13mm filters, M4
  • EM-Tec F25 filter disc holder for Ø25mm filters, M4
  • EM-Tec F35 filter disc holder for Ø35mm filters, M4
  • EM-Tec F47 filter disc holder for Ø47mm filters, M4
  • EM-Tec F76 filter disc holder for Ø76mm filters, M4
  • EM-Tec F90 filter disc holder for Ø90mm filters, M4
  • EM-Tec XL100 multi holder for large SEM sample stubs or SEM sample holders with either M4 hole or pin, M4
• With 14mm JEOL stub
  • EM-Tec F13 filter disc holder for Ø13mm filters, Ø14mm JEOL stub
  • EM-Tec F25 filter disc holder for Ø25mm filters, Ø14mm JEOL stub
  • EM-Tec F35 filter disc holder for Ø35mm filters, Ø14mm JEOL stub
  • EM-Tec F47 filter disc holder for Ø47mm filters, Ø14mm JEOL stub
  • EM-Tec F76 filter disc holder for Ø76mm filters, Ø 14 mm JEOL stub
  • EM-Tec F90 filter disc holder for Ø90mm filters, Ø14mm JEOL stub

Introduction

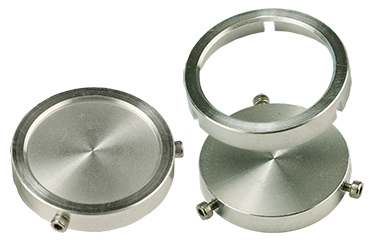

The EM-Tec filter disc holders are developed to hold flat discs type filters to enable SEM / EDS analysis. The EM-Tec filter disc holders comprise of two parts; a flat base plate to hold the filter disc and a cap which acts as clamping ring to keep the filter flat on the base. The cap is secured with three screws at the side of the base plate. The base plate and clamping ring are made from vacuum aluminium; the screws are made form stainless steel. The EM-Tec filter disc holders are available for 13, 25, 35, 47, 76 and 90mm filter discs. Custom diameters can be made on request. The edge of the cap has a 45° angle to avoid contribution of aluminium to the EDS spectra. The EM-Tec filter disc holders enable SEM / EDS analysis of particles, fibres and debris on the filters.  They are available with:

• standard pin to fit on SEM using the standard pin; Thermo Fisher,  FEI, Philips, Tescan, Phenom, Aspex, RJLee,  AmRay, Cambridge Instruments, Leica and CamScan SEMs.
• M4 threaded hole; compatible with Hitachi SEMs, FESEMs and table top SEMs and with the EM-Tec versatile SEM stage adapters
• Ø14mm JEOL stub compatible with JEOL and EM-Tec stage adapters with a Ø14mm connection

Additionally available is the EM-Tec XL 100 multi-filter holder, which has been developed to hold up to 4 filter disc holders F13 / F25 / F35 and F47 in the SEM chamber. The EM-Tec XL 100 is available for filter disc holders with pin stubs or M4 threaded holes.

Capacity and dimensions for the  EM-Tec filter disc holders:

Product #	Type	Filter sizes	Dimensions w/o pin	Open filter area	Securing method	SEM stage comp.
12-000283	F13	Ø13mm	Ø17.0x9.5mm	Ø11mm	Clamp ring/screws	Standard 3.2mm pin
12-000383	F13	Ø13mm	Ø17.0x9.5mm	Ø11mm	Clamp ring/screws	M4 thread
12-000683	F13	Ø13mm	Ø17.0x9.5mm	Ø11mm	Clamp ring/screws	Ø14mm JEOL stub
12-000285	F25	Ø25mm	Ø29.5x9.5mm	Ø20mm	Clamp ring/screws	Standard 3.2mm pin
12-000385	F25	Ø25mm	Ø29.5x9.5mm	Ø20mm	Clamp ring/screws	M4 thread
12-000685	F25	Ø25mm	Ø29.5x9.5mm	Ø20mm	Clamp ring/screws	Ø14mm JEOL stub
12-000291	F35	Ø35mm	Ø39.0x9.5mm	Ø30mm	Clamp ring/screws	Standard 3.2mm pin
12-000391	F35	Ø35mm	Ø39.0x9.5mm	Ø30mm	Clamp ring/screws	M4 thread
12-000691	F35	Ø35mm	Ø39.0x9.5mm	Ø30mm	Clamp ring/screws	Ø14mm JEOL stub
12-000287	F47	Ø47mm	Ø51.0x9.5mm	Ø42mm	Clamp ring/screws	Standard 3.2mm pin
12-000387	F47	Ø47mm	Ø51.0x9.5mm	Ø42mm	Clamp ring/screws	M4 thread
12-000687	F47	Ø47mm	Ø51.0x9.5mm	Ø42mm	Clamp ring/screws	Ø14mm JEOL stub
12-000292	F76	Ø76mm	Ø82.5x9.5mm	Ø71mm	Clamp ring/screws	Standard 3.2mm pin
12-000392	F76	Ø76mm	Ø82.5x9.5mm	Ø71mm	Clamp ring/screws	M4 thread
12-000692	F76	Ø76mm	Ø82.5x9.5mm	Ø71mm	Clamp ring/screws	Ø14mm JEOL stub
12-000290	F90	Ø90mm	Ø97.0x9.5mm	Ø85mm	Clamp ring/screws	Standard 3.2mm pin
12-000390	F90	Ø90mm	Ø97.0x9.5mm	Ø85mm	Clamp ring/screws	M4 thread
12-000690	F90	Ø90mm	Ø97.0x9.5mm	Ø85mm	Clamp ring/screws	Ø14mm JEOL stub

Please contact us if need you need filter disc holders other than listed on this page. Custom disc filter holders up to Ø110mm diameter can be manufactured upon request.

Ordering Information for EM-Tec bulk sample holders for SEMs using pin stubs: TFS, FEI, Philips, Tescan, Phenom, Aspex, RJLee, AmRay, Cambridge Instruments, Leica and CamScan SEMs

EM-Tec F13 filter disc holder for Ø13mm filters, pin Product # Unit Price* Add to Quote / Order 12-000283 EM-Tec F13 filter disc holder for Ø13mm filters, pin Qty: each €42,50

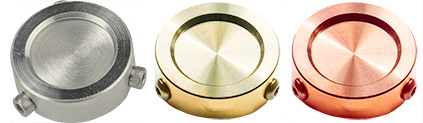

EM-Tec F25 filter disc holder for Ø25mm filters, pin Product # Unit Price* Add to Quote / Order 12-000285 EM-Tec F25 filter disc holder for Ø25mm filters, aluminium, pin Qty: each €48,50 12-000285C EM-Tec F25C filter disc holder for Ø25mm filters, copper, pin Qty: each €78,00 12-000285M EM-Tec F25M filter disc holder for Ø25mm filters, brass, pin Qty: each €78,00

EM-Tec F35 filter disc holder for Ø35mm filters, pin Product # Unit Price* Add to Quote / Order 12-000291 EM-Tec F35 filter disc holder for Ø35mm filters, pin Qty: each €94,50

EM-Tec F47 filter disc holder for Ø47mm filters, pin Product # Unit Price* Add to Quote / Order 12-000287 EM-Tec F47 filter disc holder for Ø47mm filters, pin Qty: each €53,50

EM-Tec F76 filter disc holder for Ø76mm filters, pin Product # Unit Price* Add to Quote / Order 12-000292 EM-Tec F76 filter disc holder for Ø76mm filters, pin Qty: each €135,00

EM-Tec F90 filter disc holder for Ø90mm filters, pin Product # Unit Price* Add to Quote / Order 12-000290 EM-Tec F90 filter disc holder for Ø90mm filters, pin Qty: each €185,00

EM-Tec XL100 multi holder for large pin stubs or pin type sample holders, pin Product # Unit Price* Add to Quote / Order 12-000281 EM-Tec XL100 multi holder for large pin stubs or pin type sample holders, pin Qty: each €335,00

Ordering Information for EM-Tec bulk sample holders for Hitachi SEMs and the versatile EM-Tec stage SEM stage adapters

EM-Tec F13 filter disc holder for Ø13mm filters, M4 Product # Unit Price* Add to Quote / Order 12-000383 EM-Tec F13 filter disc holder for Ø13mm filters, M4 Qty: each €41,50

EM-Tec F25 filter disc holder for Ø25mm filters, M4 Product # Unit Price* Add to Quote / Order 12-000385 EM-Tec F25 filter disc holder for Ø25mm filters, aluminium, M4 Qty: each €47,50 12-000385C EM-Tec F25 filter disc holder for Ø25mm filters, copper, M4 Qty: each €228,50 12-000385M EM-Tec F25M filter disc holder for Ø25mm filters, brass, M4 Qty: each €78,00

EM-Tec F35 filter disc holder for Ø35mm filters, M4 Product # Unit Price* Add to Quote / Order 12-000391 EM-Tec F35 filter disc holder for Ø35mm filters, M4 Qty: each €93,50

EM-Tec F47 filter disc holder for Ø47mm filters, M4 Product # Unit Price* Add to Quote / Order 12-000387 EM-Tec F47 filter disc holder for Ø47mm filters, M4 Qty: each €52,50

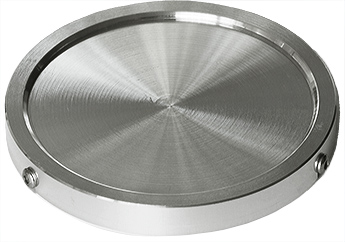

EM-Tec F76 filter disc holder for Ø76mm filters, M4 Product # Unit Price* Add to Quote / Order 12-000392 EM-Tec F76 filter disc holder for Ø76mm filters, M4 Qty: each €130,00

EM-Tec F90 filter disc holder for Ø90mm filters, M4 Product # Unit Price* Add to Quote / Order 12-000390 EM-Tec F90 filter disc holder for Ø90mm filters, M4 Qty: each €180,00

EM-Tec XL100 multi holder for large SEM sample stubs or SEM sample holders with either M4 hole or pin, M4 Product # Unit Price* Add to Quote / Order 12-000381 EM-Tec XL100 multi holder for large SEM sample stubs or SEM sample holders with either M4 hole or pin, M4 Qty: each €345,00

Ordering Information for EM-Tec bulk sample holders for JEOL SEM stage adapters with Ø14mm connection

EM-Tec F13 filter disc holder for Ø13mm filters, Ø14mm JEOL stub Product # Unit Price* Add to Quote / Order 12-000683 EM-Tec F13 filter disc holder for Ø13mm filters, Ø14mm JEOL stub Qty: each €42,50

EM-Tec F25 filter disc holder for Ø25mm filters, Ø14mm JEOL stub Product # Unit Price* Add to Quote / Order 12-000685 EM-Tec F25 filter disc holder for Ø25mm filters, Ø14mm JEOL stub Qty: each €48,50

EM-Tec F35 filter disc holder for Ø35mm filters, Ø14mm JEOL stub Product # Unit Price* Add to Quote / Order 12-000691 EM-Tec F35 filter disc holder for Ø35mm filters, Ø14mm JEOL stub Qty: each €94,50

EM-Tec F47 filter disc holder for Ø47mm filters, Ø14mm JEOL stub Product # Unit Price* Add to Quote / Order 12-000687 EM-Tec F47 filter disc holder for Ø47mm filters, Ø14mm JEOL stub Qty: each €53,50

EM-Tec F76 filter disc holder for Ø76mm filters, Ø 14 mm JEOL stub Product # Unit Price* Add to Quote / Order 12-000692 EM-Tec F76 filter disc holder for Ø76mm filters, Ø 14 mm JEOL stub Qty: each €137,00

EM-Tec F90 filter disc holder for Ø90mm filters, Ø14mm JEOL stub Product # Unit Price* Add to Quote / Order 12-000690 EM-Tec F90 filter disc holder for Ø90mm filters, Ø14mm JEOL stub Qty: each €187,00
