Introduction
The Em-Tec multiple stub holders are an economical and pragmatic way to load multiple Hitachi sample stubs with specimens in the SEM. Using multiple stub holders saves time, allows multi sample processing or allows for quickly comparing samples against each other. The following types are offered:
- EM-Tec H3 multiple stub holders for 3 x Ø15mm Hitachi cylinder stubs

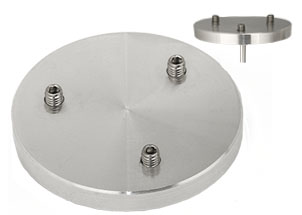

- EM-Tec H3Lmultiple stub holders for 3 x Ø25mm Hitachi cylinder stubs
- EM-Tec H6 multiple stub holders for 6 x Ø15mm Hitachi cylinder stubs
- EM-Tec H3/45 45° multiple stub holder for 3 x Ø15mm Hitachi cylinder stubs
- EM-Tec H3/45R 45° multiple stub holder for 3 x Ø15mm Hitachi cylinder stubs with adjustable rotation
- EM-Tec H6/45 45° multiple stub holder for 6 x Ø15mm Hitachi cylinder stubs
- EM-Tec H6/45R 45° multiple stub holder for 6 x Ø15mm Hitachi cylinder stubs with adjustable rotation
The horizontal multi stub holders are based on the Ø25 x 6mm x M4 and the Ø50mm x 6mm x M4 Hitachi stubs to hold multiple stubs on M4 screws. The 45° multiple holders allow for a 45° pre-tilt which is beneficial for table top SEMs w/o a stage tilt or to quickly image under 45° w/o having to tilt the SEM stage. 45° tilted imaging tends to give a higher SE signal and reveals more of the topography of the specimen surface. The EM-Tec 45° multi stub holders are offered in two versions:
- Fixed M4 threaded screws to hold the Hitachi stubs

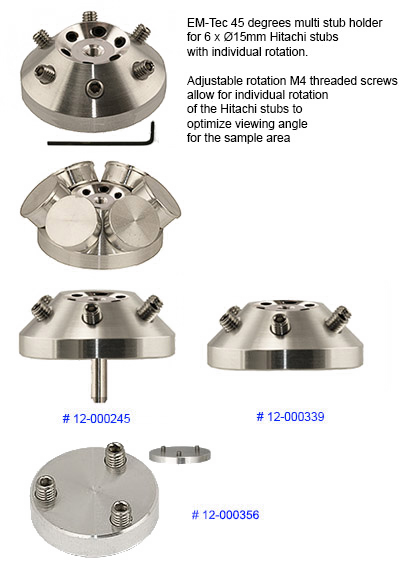

- Adjustable rotation M4 threaded screws allow for individual rotation of the Hitachi stubs to optimize viewing angle for the sample area
Product # |
Type |
No. of stubs |
Type |
Dimensions w/o pin |
Stub type |
SEM stage compatible |
H3 |
3 x Ø15 |
Horizontal |
Ø25x6mm |
M4 thread |
Standard 3.2mm pin |
|
H3 |
3 x Ø15 |
Horizontal |
Ø25x6mm |
M4 thread |
M4 thread |
|
H3L |
3 x Ø25 |
Horizontal |
Ø50x6mm |
M4 thread |
Standard 3.2mm pin |
|
H3L |
3 x Ø25 |
Horizontal |
Ø50x6mm |
M4 thread |
M4 thread |
|
H6 |
6 x Ø15 |
Horizontal |
Ø50x6mm |
M4 thread |
Standard 3.2mm pin |
|
H6 |
6 x Ø15 |
Horizontal |
Ø50x6mm |
M4 thread |
M4 thread |
|
H3/45 |
3 x Ø15 |
45 degrees |
Ø25x14mm |
M4 thread |
Standard 3.2mm pin |
|
H3/45 |
3 x Ø15 |
45 degrees |
Ø25x14mm |
M4 thread |
M4 thread |
|
H3/45R |
3 x Ø15 |
45 degrees |
Ø25x14mm |
M4 thread rot. |
Standard 3.2mm pin |
|
H3/45R |
3 x Ø15 |
45 degrees |
Ø25x14mm |
M4 thread rot. |
M4 thread |
|
H6/45 |
6 x Ø15 |
45 degrees |
Ø35x14mm |
M4 thread |
Standard 3.2mm pin |
|
H6/45 |
6 x Ø15 |
45 degrees |
Ø35x14mm |
M4 thread |
M4 thread |
|
H6/45R |
6 x Ø15 |
45 degrees |
Ø35x14mm |
M4 thread rot. |
Standard 3.2mm pin |
|
H6/45R |
6 x Ø15 |
45 degrees |
Ø35x14mm |
M4 thread rot. |
M4 thread |
Ordering Information for EM-Tec multiple Hitachi stub holders for SEMs using pin stubs; TFS, FEI, Philips, Zeiss, LEO Tescan, AmRay, Pemtron, Coxem, Aspex, RJLee, Cambridge Instruments, Leica, and CamScan
|
|
|
|
|
|
|
|
|
|
|
|
|
|
