EM-Tec Versa-Plate adaptable SEM sample holders
EM-Tec Versa-Plate adaptable SEM sample holders
adapt bracket positions to the shape of the sample

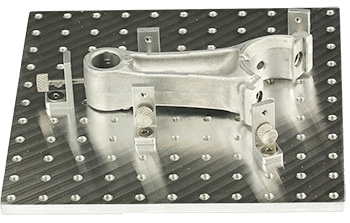

EM-Tec Versa-Plate H121 SEM sample holder 150x150mm
with 121 M4 threaded holes and 5 brackets,
#12-003290 (with pin), #12-003390 (with M4 thread)
or #12-006290 (with Ø14mm JEOL stub).
The EM-Tec Versa-Plate adaptable SEM sample holders consists of a flat base plate with multiple M4 threaded holes and a set of movable sample holding brackets. The brackets can be positioned at any of the M4 threaded holes to perfectly suit the size and shape of the sample. Each bracket can be rotated a fully 360° and is fastened on the base plate with an M4 screw. The brackets include an M3 stainless thumb screws to secure the sample. The multiple bracket position capability makes this one of the most versatile SEM sample holders. The base plates of the EM-Tec Versa-Plate sample holders are made from stress-free, vacuum grade, aluminium tooling plate to maintain flatness. All screws on the brackets are made from non-magnetic stainless steel. Each holder is supplied complete with base plate, brackets, M4 screws and M3 thumb screws. Additional brackets and thumb screws are optionally available. The EM-Tec Versa-Plate sample holders are ideally suited for:
- Large and/or awkwardly shaped samples
- Industrial products
- Forensic artefacts
- Failure analysis
- Non-symmetrical samples
- Multiple samples
The available standard EM-Tec Versa-Plate adaptable SEM sample holders are:
- H45 sample holder plate size of 106x58mm, 9x5 M4 threaded holes with a pitch of 12mm
- H49 sample holder plate size of 82x82mm, 7x7 M4 threaded holes with a pitch of 12mm
- H81 sample holder plate size of 106x106mm, 9x9 M4 threaded holes with a pitch of 12mm
- H121 sample holder plate size of 150x150mm, 11x11 M4 threaded holes with a pitch of 14mm
- S25 standard bracket with 25mm height and two mounting positions
- S15 low profile mounting bracket with a single mounting position

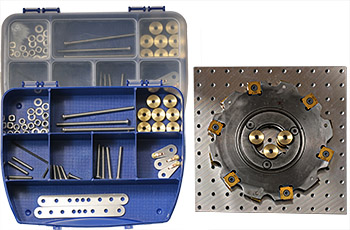

#12-003395 EM-Tec Versa-Plate UV1 Universal clamping kit
The optionally available EM-Tec Versa-Plate UV1 Universal clamping kit has been designed to hold samples which are difficult to hold with the standard brackets. The EM-Tec UV1 Universal clamping kit is ideal for thin plates, thick samples up to 66mm and heavy samples. Materials used for the UV1 clamping kit are aluminium, stainless steel and brass. The EM-Tec UV1 Universal clamping kit contains:
- 2 x EM-Tec SC80 multi-hole 80mm long aluminium clamping strips
- 3 x EM-Tec SC20 short aluminium clamping strip including S-clips for thin samples
- 8 x EM-Tec SC4 brass knurled nuts
- 1 set of stainless steel M4 screws: 4 x M4x70mm + 4 x M4 x35mm + 4 x M4 x 15mm + 4 x M4 x20mm
- 1 set of stainless steel M4 nuts: 6 x M4 hex nuts + 6 x M4 square nuts
- 12 x stainless steel M4 washers
Additional SEM stage adaptability
The design of the EM-Tec Versa-Plate holders allow for mounting the EM-Tec SEM stage adapters (all with an M4 screw), at any of the M4 threaded holes at the back of the base plate. Standard position of the SEM stage adapter is the centre of the base plate. However, by mounting at other positions, the EM-Tec Versa-Plate SEM sample holder can be used at off-set positions on the SEM sample stage. This enables examining larger samples than the available X-Y travel range of the SEM stage.
Specifications of the EM-Tec Versa-Plate adaptable sample holders:|
Product # |
Style |
Size |
# M4 holes |
Pitch |
Hole Pattern |
Brackets |
SEM stage comp. |
EM-Tec H45 |
106x58 mm |
45 |
12mm |
9 x 5 |
4 |
Standard 3.2mm pin |
|
EM-Tec H45 |
106x58 mm |
45 |
12mm |
9 x 5 |
4 |
M4 |
|
EM-Tec H45 |
106x58 mm |
45 |
12mm |
9 x 5 |
4 |
Ø14mm JEOL stub |
|
EM-Tec H49 |
82x82 mm |
49 |
12mm |
7 x 7 |
4 |
Standard 3.2mm pin |
|
EM-Tec H49 |
82x82 mm |
49 |
12mm |
7 x 7 |
4 |
M4 |
|
EM-Tec H49 |
82x82 mm |
49 |
12mm |
7 x 7 |
4 |
Ø14mm JEOL stub |
|
EM-Tec H81 |
106x106 mm |
81 |
12mm |
9 x 9 |
4 |
Standard 3.2mm pin |
|
EM-Tec H81 |
106x106 mm |
81 |
12mm |
9 x 9 |
4 |
M4 |
|
EM-Tec H81 |
106x106 mm |
81 |
12mm |
9 x 9 |
4 |
Ø14mm JEOL stub |
|
EM-Tec H121 |
150x150 mm |
121 |
14mm |
11 x 11 |
5 |
Standard 3.2mm pin |
|
EM-Tec H121 |
150x150 mm |
121 |
14mm |
11 x 11 |
5 |
M4 |
|
EM-Tec H121 |
150x150 mm |
121 |
14mm |
11 x 11 |
5 |
Ø14mm JEOL stub |
The EM-Tec Versa-Plate adaptable SEM sample holders are available with:
- standard pin to fit on SEM which use the standard pin;Thermo, FEI, Philips, Tescan, Zeiss, LEO, AmRay, Cambridge Instruments, Leica, und CamScan REM.
- M4 threaded hole compatible with Hitachi SEMs, FESEMs and table top SEMs and with the EM-Tec versatile SEM stage adapters
- Ø14mm JEOL stub compatible with JEOL and EM-Tec stage adapters with a Ø14mm connection
Ordering Information for EM-Tec Versa-Plate adaptable SEM sample holders for SEMs using standard 3.2mm pins; TFS, FEI, Philips, Tescan, Phenom, Aspex, RJLee, AmRay, Cambridge Instruments, Leica and CamScan SEMs
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
