Micro-Tec glass coverslips
18 x 18mm, 22 x 22mm and 24 x 40mm slides

                 Examples
Micro-Tec glass coverslips

Introduction

Premier quality Micro-Tec glass coverslips are made from optically clear and special formulated borosilicate glass. Available in thickness #1 (0.13-0.17) in four popular sizes; 18 x 18mm, 22 x 22mm, 24 x 40mm and 24x50mm. Supplied in single packs or boxes of 10 packs (sealed in barrier foil). Main application is microscope cover glass; other applications include thin film substrate and coating test glass.



Specifications of the Micro-Tec glass coverslips

Product #

Type

Thickness

Dimensions

Slide material

Precleaned

Packaging

51-002218-1

Square #1

0.13-0.17mm

18 x 18mm

Borosilicate glass

yes

Pkg/100

51-002218-10

Square #1

0.13-0.17mm

18 x 18mm

Borosilicate glass

yes

Box/1000

51-002222-1

Square #1

0.13-0.17mm

22 x 22mm

Borosilicate glass

yes

Pkg/100

51-002222-10

Square #1

0.13-0.17mm

22 x 22mm

Borosilicate glass

yes

Box/1000

51-002224-1

Rectangle #1

0.13-0.17mm

24 x 40mm

Borosilicate glass

yes

Box/1 ounce (~86)

51-002224-10

Rectangle #1

0.13-0.17mm

24 x 40mm

Borosilicate glass

yes

Box/10 ounce (~860)

51-002225-1

Rectangle #1

0.13-0.17mm

24 x 50mm

Borosilicate glass

yes

Box/1 ounce (~87)

51-002225-10

Rectangle #1

0.13-0.17mm

24 x 50mm

Borosilicate glass

yes

Box/10 ounce (~870)

Typical chemical composition of borosilicate glass coverslips          Typical physical properties of borosilicate glass coverslips

Compound

Wt%

SiO2

64.1

B2O

8.4

Al2O3

4.2

Na2O

6.4

K2O

6.9

ZnO

5.9

TiO2

4.0

Sb2O3

0.1

Parameter

Value/unit

Light transmission, total solar

92.5%

Refractive index

1.5255 at 546.07nm

Density

2.51 g/cm3

Hardness

6 Mohs scale

Coefficient of expansion

3.3 x 10-6 /°C

Poisson's ratio

0.208

Strain Point

529°C

Annealing temperature

557°C

Softening temperature

736°C

Liquidus temperature

820°C


Ordering Information for Micro-Tec glass coverslips

*Prices without VAT, but within the EU, we have to check for valid VAT-ID.

Micro-Tec boro silicate glass coverslips #1, 18 x 18mm Micro-Tec boro silicate glass coverslips #1, 18 x 18mm
Product # Unit Price* Add to Quote / Order
51-002218-1 Micro-Tec boro silicate glass coverslips #1, 18 x 18mm
Qty:

pkg/100 €1,45
51-002218-10 Micro-Tec boro silicate glass coverslips #1, 18 x 18mm
Qty:

box/1000 €10,95


Micro-Tec boro silicate glass coverslips #1, 22 x 22mm Micro-Tec boro silicate glass coverslips #1, 22 x 22mm
Product # Unit Price* Add to Quote / Order
51-002222-1 Micro-Tec boro silicate glass coverslips #1, 22 x 22mm
Qty:

pkg/100 €1,55
51-002222-10 Micro-Tec boro silicate glass coverslips #1, 22 x 22mm
Qty:

box/1000 €11,95

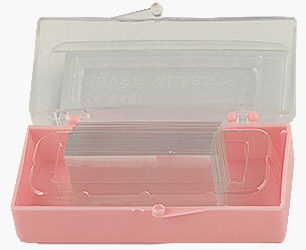

Micro-Tec boro silicate glass coverslips #1, 24 x 40mm Micro-Tec boro silicate glass coverslips #1, 24 x 40mm
Product # Unit Price* Add to Quote / Order
51-002224-1 Micro-Tec boro silicate glass coverslips #1, 24 x 40mm (~86 coverslips )
Qty:

pkg/1 ounce €2,50
51-002224-10 Micro-Tec boro silicate glass coverslips #1, 24 x 40mm (~860 coverslips)
Qty:

box/10 ounce €19,85


Micro-Tec boro silicate glass coverslips #1, 24 x 50mm Micro-Tec boro silicate glass coverslips #1, 24 x 50mm
Product # Unit Price* Add to Quote / Order
51-002225-1 Micro-Tec boro silicate glass coverslips #1, 24 x 50mm (~67 coverslips )
Qty:

pkg/1 ounce €2,50
51-002225-10 Micro-Tec boro silicate glass coverslips #1, 24 x 50mm (~670 coverslips)
Qty:

box/10 ounce €19,85
