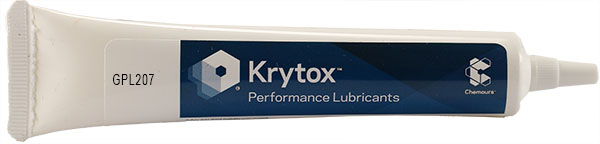

Krytox 207, GPL206 and GPL 205 are a long-lasting, white buttery greases which are nonreactive, nonflammable, safe in chemical and oxygen service. It only contains carbon, oxygen and fluorine, but no hydrogen or silicone. It will not burn or support combustion. It is an ideal grease for vacuum parts which are exposed to air such as rods in vacuum loading locks, vacuum door seals, moving aperture holders and valves. Krytox does not degrade in contact with air, does not contain any silicone and is basically chemically inert. Krytox GPL207/206/205 greases consist of Krytox perfluoropolyether (PFPE) fluorinated synthetic oil and Krytox 2000 polytetrafluoroethylene (PTFE). It also exhibits excellent anti-seize properties. It can be used up to a service temperature of 288°C. Originally a Dupont product, now a product of Chemours. Krytox GPL207/206/205 are alternatives for Braycote 803 and the OC Five / OC Seven greases.
Due to initial outgassing, it is recommended to pre-condition the grease under vacuum and operating temperature until the required vacuum level has been reached.
Typical applications include:
Krytox GPL 207/206/205 PFPE / PTFE greases
Product # |
|||
Product name |
Krytox GPL 207 |
Krytox GPL 206 |
Krytox GPL 205 |
Service temperature range |
-30°C to +288°C |
-36°C to +260°C |
-36°C to +204°C |
Density @ 0°C / 100°C |
1.95g/cm3 / 1.78 g/cm3 |
1.95g/cm3 / 1.78 g/cm3 |
1.95g/cm3 / 1.78 g/cm3 |
Viscosity@ 20°C / 100°C |
1540CSt / 42cSt |
822CSt / 25cSt |
522CSt / 18cSt |
ISO Grade of Oil |
460 |
220 |
150 |
Oxygen compatible |
Yes |
Yes |
Yes |
Chemical resistance |
Excellent |
Excellent |
Excellent |
Solubility |
Virtually insoluble |
Virtually insoluble |
Virtually insoluble |
Components |
Pure PFPE / PTFE |
Pure PFPE / PTFE |
Pure PFPE / PTFE |
|
|
|
