EM-Tec transmission-EBSD sample holders for TEM and FIB grids
to generate transmission Kikuchi patterns
| Transmission-EBSD or t-EBSD | EBSD |
The EM-Tec t-EBSD holders are specifically designed to generate transmission Kikuchi patterns.
The EM-Tec transmission EBSD holders include a recessed area for easy loading of the FIB or TEM grids and an opening of Ø2mm in the base.
The top is formed by a fork-shaped phosphor bronze clip which clamps the TEM or FIB grid.
Transmission EBSD imaging and analysis is possible over the full Ø2mm area.
To load the EM-Tec t-EBSD holder in horizontal position,
we recommend to use the EM-Tec PS12/45 multi-angle preparation stand. For analysis where copper is not desirable, there are optionally available special Molybdenum clips with stainless steel screws.
The EM-Tec t-EBSD holders are available with 1 of 3 FIB lift-out or TEM grid capacity. The choice of configurations include
:
- EM-Tec T1 t-EBSD sample holder for a single TEM or FIB grid, standard Ø3.2mm (1/8”) pin to be mounted on existing pre-tilt holders
- EM-Tec T3 t-EBSD sample holder for three TEM or FIB grids, standard Ø3.2mm (1/8”) pin to be mounted on existing pre-tilt holders

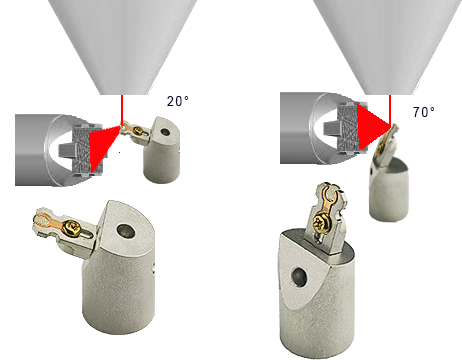

- EM-Tec TE1 t-EBSD sample holder kit for a single TEM or FIB grid with 70° and 20° pre-tilt, pin / M4
- EM-Tec TE3 t-EBSD sample holder kit for three TEM or FIB grid with 70° and 20° pre-tilt, pin / M4
Capacity, size and compatibility of the EM-Tec t-EBSD sample holder and kits
Product # |
Style |
Tilt angles |
Size w/o pin |
TEMT-EBSD Grid Capacity |
Compatibility |
EM-Tec T1 |
– t-EBSD |
6x11x4.5mm |
1 |
3.2mm pin stub |
|
EM-Tec T3 |
– t-EBSD |
16x11x4.5mm |
3 |
3.2mm pin stub |
|
EM-Tec TE1 |
70° /20° t-EBSD |
Ø12.7 x 30mm |
1 |
3.2mm pin stub |
|
EM-Tec TE3 |
70° /20° t-EBSD |
Ø12.7 x 30mm |
3 |
3.2mm pin stub |
|
EM-Tec TE1 |
70° /20° t-EBSD |
Ø12.7 x 30mm |
1 |
M4 thread |
|
EM-Tec TE3 |
70° /20° t-EBSD |
Ø12.7 x 30mm |
3 |
M4 thread |
Ordering Information for EM-Tec t-EBSD sample holders to be mounted on existing pre-tilt holders. Compatible with SEMs using pin stubs; TFS, FEI, Philips, Tescan, Phenom, Aspex, RJLee, AmRay, Cambridge Instruments, Leica and CamScan SEMs
|
|
|
|
|
|
|
|
