EM-Tec ZC replaceable ceramic tips tweezers
ceramic tips tweezers with firm stainless steel handles
An example
The EM-Tec ZC replaceable ceramic tips tweezers combine the advantages of the unique high strength/high hardness ceramic tweezers tips with the firm handles of stainless steel tweezers. The material used for the ZC replaceable ceramic tips is a zirconia toughened alumina (ZTA).
The ceramic ZC tips exhibit both high strength and high hardness with excellent chemical stability and high temperature stability (1400°C). The hard surface makes the tips extreme wear resistant. Other advantages of the ZC ceramic tips are no open porosity and a relative low density (light). The colour of the ZC ceramic tips is white.
Applications for the EM-Tec ZC replaceable ceramic tips tweezers include handling of hard materials, handling of samples or components during thermal, chemical and soldering processes. Generally used where very rigid tips are required.
Product # |
Tip Style |
Description |
Length |
Points size closed |
Tip length A |
Tip Length D |

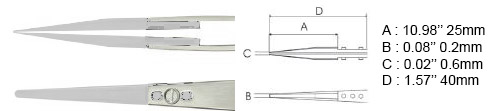

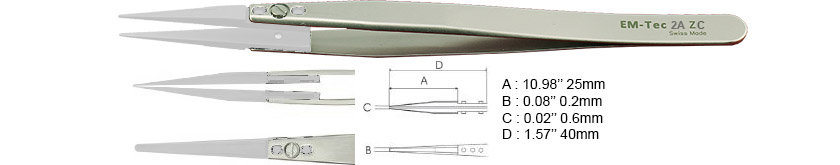

EM-Tec 2A.ZC |
Flat, rounded |
130mm |
2.0 x 0.6mm W x H |
35mm |
50mm |
|

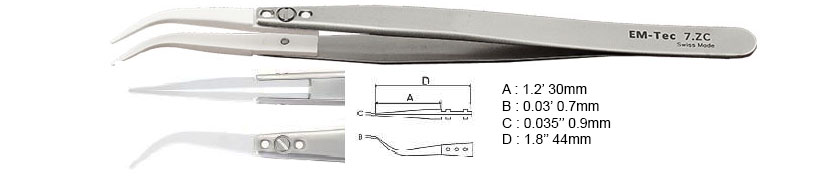

EM-Tec 7.ZC |
Sharp, curved |
130mm |
0.7 x 0.9mm W x H |
30mm |
45mm |
|

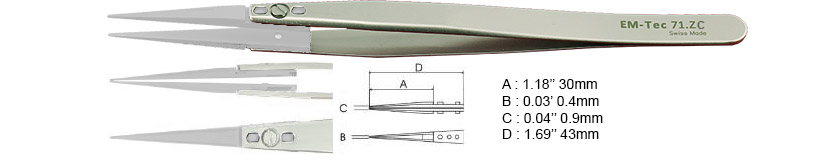

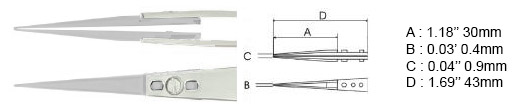

EM-Tec 71.ZC |
Sharp, strong |
130mm |
0.7 x 0.9mm W x H |
30mm |
45mm |
|

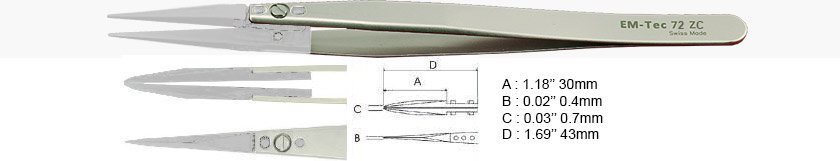

EM-Tec 72.ZC |
Fine, strong |
130mm |
0.4 x 0.7mm W x H |
30mm |
45mm |
|
EM-Tec 73.ZC |
Sharp, pointed |
130mm |
1.0 x 0.6mm W x H |
35mm |
50mm |
|

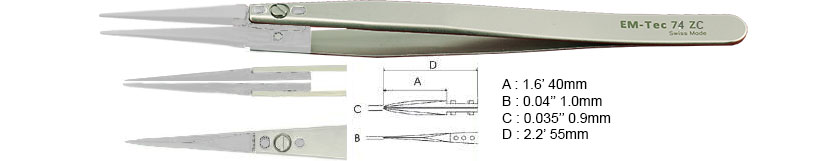

EM-Tec 74.ZC |
Strong |
130mm |
1.0 x 0.9mm W x H |
40mm |
55mm |
