TFS / FEI Teneo VolumeScope pin stubs with groove
added side groove for improved and secure handling
Introduction

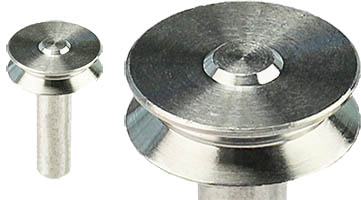

The TFS and FEI Teneo VolumeScope systems uses specially designed sample stubs with a 3.1mm diameter pin. The sample mounted on these pins are used for serial sectioning and serial block-face BSD imaging to create 3D imaging data of the sample structure. The sample area consists of a raised platform with 2mm diameter which sits on a Ø8mm head. To improve handling of the TFS / FEI Teneo VS pins, we have added a groove in the side of the Ø8mm head. With the groove, the TFS / FEI VS Teneo pins can be easily handled, removed from the sample holder and placed in storage boxes.
These pin stubs are fully compatible with the TFS / FEI Teneo VS SEM system; Ø3.1mm pin, Ø8mm head and raised platform for sample mounting. Manufactured from vacuum grade aluminium.
EM-Tec PT28 storage box for TFS / FEI Teneo VS sample pin stubs with groove
The EM-Tec PT28 storage box has been developed to store 28 of the TFS / FEI Teneo VS pin stubs. Made from clear polystyrene with two hinges and snap-lock. The pin stubs are held by a custom high density closed cell NBR foam with holes. The high density closed cell foam doesn't crumble and is elastic enough to allow repetitive loading and retrieving of the pins.
Ordering information for TFS / FEI Teneo VolumeScope pin stubs with groove
*Prices without VAT, but within the EU, we have to check for valid VAT-ID.
 |
TFS / FEI Teneo VolumeScope pin stubs with V groove |
| Product # |
Unit |
Price* |
Add to Quote / Order |
| 10-006009-10 |
pkg/10 |
€27,50
|
|
| 10-006009-50 |
pkg/50 |
€129,75
|
|
|
|
Ordering Information for EM-Tec PT28 storage box for 28 TFS / FEI VS pin stubs
*Prices without VAT, but within the EU, we have to check for valid VAT-ID.
 |
EM-Tec PS28 storage box for 28 FEI Teneo VS pin stubs |
| Product # |
Unit |
Price* |
Add to Quote / Order |
| 13-090330 |
each |
€10,95
|
|
|
|
Ordering Information EM-Tec handling tweezers for the TFS / FEI Teneo VS pin stubs with groove
*Prices without VAT, but within the EU, we have to check for valid VAT-ID.
 |
| EM-Tec 5B.AM high precision tweezers, style 5B, extra fine bent tips, anti-magnetic stainless steel |
| Product # |
Unit |
Price* |
Add to Quote / Order |
| 50-001055 |
each |
€22,75
|
|
|
|
 |
| EM-Tec 7.AM high precision tweezers, style 7, very fine curved tips, anti-magnetic stainless steel |
| Product # |
Unit |
Price* |
Add to Quote / Order |
| 50-001070 |
each |
€22,75
|
|
|
|
