EM-Tec CXS and RSX calibration and reference standards for
EDS, WDS, BSD, CL and Raman
compact & practical analytical standards

•
• Order EM-Tec CXS and RXS calibration and reference standards for EDS, WDS, BSD, CL and Raman.
  • EM-Tec CXS-3C EDS calibration standard, Al, Cu and C on pin stub
  • EM-Tec CXS-5F light element and EDS calibration standard, 5 materials plus F/C on pin stub
  • EM-Tec CXS-5F-T traceable light element and EDS calibration standard with unique serial number, 5 materials plus Faraday cup on pin stub
  • EM-Tec CXS-5C light element and EDS calibration standard, 5 materials plus 200M TEM grid on pin stub
  • EM-Tec CXS-5C-T traceable light element and EDS calibration standard with unique serial, 5 materials plus 200 Mesh TEM grid on pin stub
  • EM-Tec CXS-5N light element and EDS calibration standard, 5 materials plus F/C on pin stub
  • EM-Tec CXS-5LE light element and EDS calibration standard, 5 materials plus F/C on pin stub
  • EM-Tec CXS-5BE BSD calibration standard, 5 materials plus F/C on pin stub
  • EM-Tec CXS-6BE BSD calibration standard, materials plus F/C on pin stub
  • EM-Tec CXS-10BE BSD calibration standard, 10 materials plus F/C on pin stub
  • EM-Tec CXS-10BEC2 BSD calibration standard, 10 materials plus F/C on pin stub
  • EM-Tec CXS-5TX EDAX TEX calibration standard, 5 materials plus F/C on pin stub
  • EM-Tec CXS-5LX EDAX LEX/TEX calibration standard, 5 materials plus F/C on pin stub
  • EM-Tec CXS-6F light element and EDS calibration standard, 6 materials plus F/C on pin stub
  • EM-Tec CXS-6LE light element and EDS calibration standard, 6 materials plus F/C on pin stub
  • EM-Tec CXS-10GSR EDS/GSR calibration standard, 10 materials plus F/C on pin stub
  • EM-Tec RXS-18RE rare earth reference standard, 18 materials plus F/C on stainless steel Ø25.4 x 9 mm disc
  • EM-Tec RXS-21RE rare earth reference standard, 21 materials plus F/C on stainless steel disc, Ø25.4 x 9 mm
  • EM-Tec RXS-36M metals reference standard, 36 metals plus F/C on stainless steel disc, Ø25.4 x 9 mm
  • EM-Tec RXS-36MC metals reference standard, 36 metals/compounds plus F/C on stainless steel disc, Ø25.4 x 9 mm
  • EM-Tec RXS-40MC mineral reference standard, 40 minerals plus F/C on stainless steel Ø 25.4 mm pin stub
  • EM-Tec RXS-40MM metals & mineral reference standard, 40 standards plus F/C on stainless steel Ø 25.4 mm pin stub
  • EM-Tec RXS-40MC+CL mineral + cathode luminescence reference standard, 40 minerals plus F/C on stainless steel pin stub, Ø25.4 mm
  • EM-Tec RXS-6AC Quantitave EDX analyis test standard with Au-Cu alloys, 6 NIST certified materials on pin stub
  • EM-Tec RXS-6AA Quantitave EDX analyis test standard with Au-Ag alloys, 6 NIST certified materials on pin stub
  • EM-Tec RXS-7CL cathode-luminescence test standard, 7 materials on pin stub
  • EM-Tec RXS-10PD peak deconvolution test standard, 10 materials plus F/C on pin stub
  • EM-Tec RXS-10RA Raman mineral analysis test standard, 10 materials plus F/C on pin stub
  • EM-Tec RXS-2WSi resolution and contrast test standard, fused W/Si on pin stub
  • EM-Tec RXS-TaSi resolution and contrast test standard, fused Ta/Si on pin stub

Introduction

The EM-Tec CXS and RXS calibration and reference standards are designed for calibration, resolution testing and performance testing. Each standard contains a selection of reference materials, in the form of element or compounds, optimized for specific calibration tasks.They are available as compact Ø 12.7mm pin stubs and Ø25.4mm discs:

• Compact Ø12.7mm standard aluminium pin stub with up to 10 elements/compounds.


EM-Tec CXS-5C light element and EDS calibration standard,
5 materials plus 200M TEM grid on pin stub
• Ø25.4 mm stainless steel Pin stub
• Ø25.4 mm stainless steel block (9mm height) for larger numbers of element / compounds. Compatible with the EM-Tec M26 metallographic mount holders and the EM-Tec reference holders.

The elements/compounds are all mounted with a vacuum compatible epoxy. The mounts are then precision polished to ensure that all the elements/compounds are in the same plane. Virtually all standards include a Faraday cup to enable electron probe measurements and monitoring. The polished calibration standards are carbon coated to ensure conductivity and avoid charging.
The pin stub type standards are compatible with TFS, FEI, Philips, Zeiss, LEO, TESCAN, Phenom, Leica, Cambridge instrument and CamScan SEMs. For using the calibration standards on JEOL and Hitachi SEM, please consult the page with the EM-Tec SEM stub adapters.

The EM-Tec CSX and RSX calibration and reference standards are intended for calibration and testing of:
- SEM / EDS systems and/or SEM / WDS systems
- SEM back scattered electron detector (BSD)
- Quantitative EDX analysis
- SEM / GSR (gunshot residue) analysis
- Electron Probe Micro-Analyser (EPMA) systems
- SEM particle analysis systems
- SEM cathode-luminescence (CL) detector
- SEM / Raman system
 -SEM / micro-XRF systems
- micro-XRF systems

Specifications of the EM-Tec CXS and RXS calibration and reference standards

Product #	Type	Calibration application description	Standards #	Far. cup	Size
36-000503	CXS-3C	EDX detector calibration/resolution	3	No	Ø12.7mm x pin
36-000505	CXS-5F	Light elements, EDS detector	5	Yes	Ø12.7mm x pin
36-T00505	CXS-5F-T	TRACEABLE, lights elements, EDS detector	5-T	Yes	Ø12.7mm x pin
36-000506	CXS-5C	Light elements, EDS detector, Image	5	No - Grid	Ø12.7mm x pin
36-T00506	CXS-5C-T	TRACEABLE, lights elements, EDS detector	5-T	No - Grid	Ø12.7mm x pin
36-000508	CXS-5N	Light elements, EDS detector	5	Yes	Ø12.7mm x pin
36-000512	CXS-5LE	Light elements detection performance	5	Yes	Ø12.7mm x pin
36-000507	CXS-5BE	BSD, EDS detector	5	Yes	Ø12.7mm x pin
36-000522	CXS-6BE	BSD, EDS detector	6	Yes	Ø12.7mm x pin
36-000510	CXS-10BE	BSD, EDS detector, heavier elements	10	Yes	Ø12.7mm x pin
36-000511	CXS-10BEC2	BSD, EDS detector, lighter elements	10	Yes	Ø12.7mm x pin
36-000513	CXS-5TX	EDAX  TEX set-up	5	Yes	Ø12.7mm x pin
36-000514	CXS-5LX	EDAX LEX / TEX set-up	5	Yes	Ø12.7mm x pin
36-000517	CXS-6F	EDS detector & performance	6	Yes	Ø12.7mm x pin
36-000521	CXS-6LE	Light elements, EDS detector	6	Yes	Ø12.7mm x pin
36-000525	CXS-10GSR	GSR analysis, EDS detector	10	Yes	Ø12.7mm x pin
36-000618	RXS-18RE	Rare earth metals reference	18	Yes	Ø25.4 x 9mm
36-000621	RXS-21RE	Rare earth metals reference	21	Yes	Ø25.4 x 9mm
36-000636	RXS-36M	Metals reference	36	Yes	Ø25.4 x 9mm
36-000638	RXS-36MC	Metals & minerals reference	36	Yes	Ø25.4 x 9mm
36-000640	RXS-40MC	Mineral & compounds reference	40	Yes	Ø25.4mm x pin
36-000642	RXS-40MM	Metals & minerals reference	40	Yes	Ø25.4mm x pin
36-000644	RXS-40M+CL	Minerals & Cathode-luminescense reference	40	Yes	Ø25.4mm x pin
36-000703	RXS-6AC	Quantitative EDX analysis Au-Cu	6	No	Ø12.7mm x pin
36-000704	RXS-6AA	Quantitative EDX analysis Au-Ag	6	No	Ø12.7mm x pin
36-000707	RXS-7CL	Cathode-luminescence reference	7	Yes	Ø12.7mm x pin
36-000710	RXS-10PD	Peak deconvolution, resolution test	10	Yes	Ø12.7mm x pin
36-000711	RXS-10RA	Raman performance	10	Yes	Ø12.7mm x pin
36-000712	RXC-2WSi	Fusion, BSD/X-ray contrast & resolution	2	No	Ø12.7mm x pin
36-000714	RXC-2TaSi	Fusion, BSD/X-ray contrast & resolution	2	No	Ø12.7mm x pin

Ordering Information for EM-Tec CXS calibration and reference standards for EDS, WDS and BSD

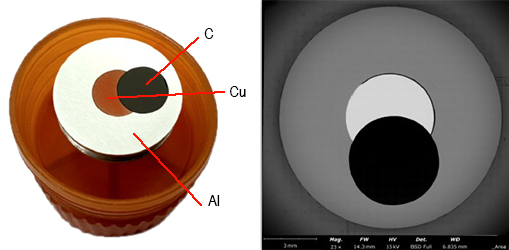

EM-Tec CXS-3C EDS calibration standard, Al, Cu and C on pin stub The EM-Tec CXS-3C EDX calibration standard includes 3 reference materials: Cu and C fitted together in a compact Ø12.7mm standard Aluminium pin stub. Polished to 0.5um and not coated. The aluminium pin stub with the high purity copper serves as a Cu/Al reference for EDX detector gain/zero calibration. The vitreous carbon serves as a reference for light element detection. Intended for: EDS detector calibration, resolution and performance test. Reference materials: Al, Cu and C. Product # Unit Price* Add to Quote / Cart 36-000503 each €260,00 Qty:

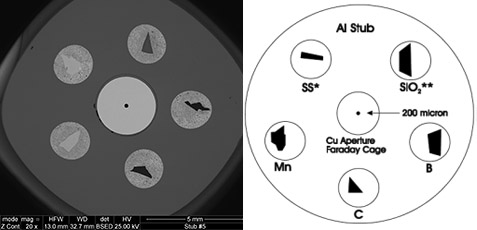

EM-Tec CXS-5F light element and EDS calibration standard, 5 materials plus F/C on pin stub The EM-Tec CXS-5F calibration standard includes 5 reference materials and a 200µm aperture copper Faraday cup. All mounted in a compact Ø12.7mm standard aluminium pin stub. The copper Faraday cup and aluminium pin stub can serve as a Cu/Al reference for detector gain/zero calibration. Intended for: EDS detector performance, light element detection, EDS detector resolution, EDS detector calibration and quantitative analysis test. Reference materials: Stainless steel AISI 316L, SiO2, Mn, B and C. 200µm copper Faraday cup. Product # Unit Price* Add to Quote / Cart 36-000505 each €280,00 Qty:

EM-Tec CXS-5F-T traceable light element and EDS calibration standard with unique serial number, 5 materials plus Faraday cup on pin stub The EM-Tec CXS-5F-T traceable calibration standard includes 5 reference materials and a 200µm aperture copper Faraday cup. All mounted in a compact Ø12.7mm standard aluminium pin stub. The copper Faraday cup and aluminium pin stub can serve as a Cu/Al reference for detector gain/zero calibration. Intended for: EDS detector performance, light element detection, EDS detector resolution, EDS detector calibration and quantitative analysis test. Complete with serial number, booklet containing Certficates of Analysis for the materials and pin stub and Backscattered image. Traceability for a period for up to 5 years. Reference materials: Stainless steel NIST 1155a (AISI 316L), SiO2, Mn, B and C. 200µm copper Faraday cup made from 99.99 % pure copper. Product # Unit Price* Add to Quote / Cart 36-T00505 each €745,00 Qty:

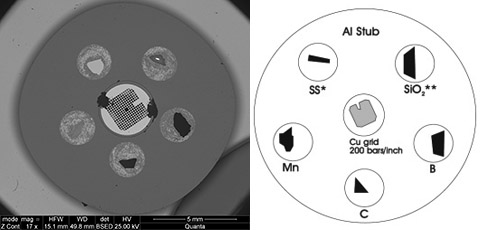

EM-Tec CXS-5C light element and EDS calibration standard, 5 materials plus 200M TEM grid on pin stub The EM-Tec CXS-5C calibration standard includes 5 reference materials and a 200mesh copper grid All mounted in a compact Ø12.7mm standard aluminium pin stub. The 200mesh copper grid acts as an image size reference and with the aluminium pin stub it serves as a Cu/Al reference for detector gain/zero calibration. Intended for: EDS detector performance, light element detection, EDS detector resolution, EDS detector calibration and quantitative analysis test. Reference materials: Stainless steel 316L, SiO2, Mn, B and C. 200mesh copper grid. Product # Unit Price* Add to Quote / Cart 36-000506 each €280,00 Qty:

EM-Tec CXS-5C-T traceable light element and EDS calibration standard with unique serial, 5 materials plus 200 Mesh TEM grid on pin stub The EM-Tec CXS-5C-T traceable calibration standard includes 5 reference materials and a 200 mesh copper TEM grid. All mounted in a compact Ø12.7mm standard aluminium pin stub. The copper TEM grid and aluminium pin stub can serve as a Cu/Al reference for detector gain/zero calibration. Intended for: EDS detector performance, light element detection, EDS detector resolution, EDS detector calibration and quantitative analysis test. Complete with serial number, booklet containing Certficates of Analysis for the materials and pin stub and Backscattered image. Traceability for a period for up to 5 years. Reference materials: Stainless steel NIST 1155a (AISI 316L), SiO2, Mn, B and C. 200 mesh copper TEM grid made from 99.99 % pure copper. Product # Unit Price* Add to Quote / Cart 36-T00506 each €745,00 Qty:

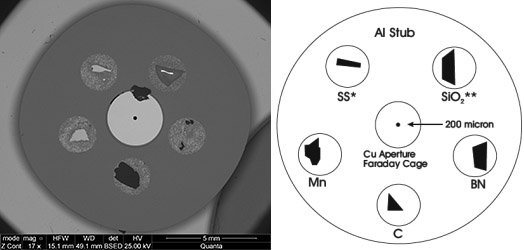

EM-Tec CXS-5N light element and EDS calibration standard, 5 materials plus F/C on pin stub The EM-Tec CXS-5N calibration standard includes 5 reference materials and a 200µm aperture copper Faraday cup. All mounted in a compact Ø12.7mm standard aluminium pin stub. The copper Faraday cup and aluminium pin stub can serve as a Cu/Al reference for detector gain/zero calibration. Intended for: EDS detector performance, light element detection, EDS detector resolution, EDS detector calibration and quantitative analysis test. Similar to #36-00505; EM-Tec CXS-5F, but with BN instead of B to add N. Reference materials: Stainless steel AISI 316L, SiO2, Mn, BN and C. 200µm copper Faraday cup. Product # Unit Price* Add to Quote / Cart 36-000508 each €280,00 Qty:

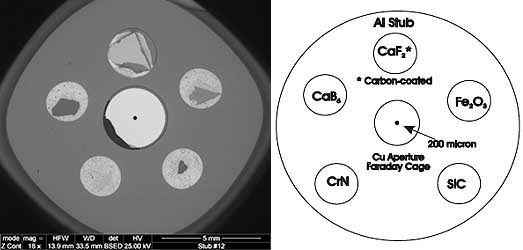

EM-Tec CXS-5LE light element and EDS calibration standard, 5 materials plus F/C on pin stub The EM-Tec CXS-5LE calibration standard includes 5 reference materials and a 200µm aperture copper Faraday cup. All mounted in a compact Ø12.7mm standard aluminium pin stub. The copper Faraday cup and aluminium pin stub can serve as a Cu/Al reference for detector gain/zero calibration. Intended for: light element performance test and EDS detector setup; includes: B, C, N, O and F in stable compounds. Reference materials: CaB6, SiC, CrN, Fe2O3 and CaF2. 200µm copper Faraday cup. Product # Unit Price* Add to Quote / Cart 36-000512 each €720,00 Qty:

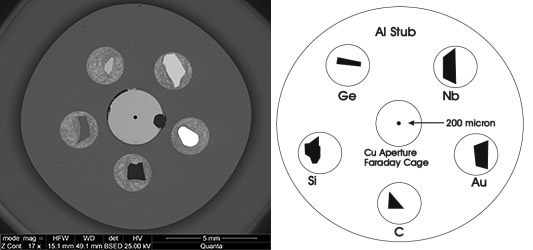

EM-Tec CXS-5BE BSD calibration standard, 5 materials plus F/C on pin stub The EM-Tec CXS-5BE calibration standard includes 5 reference materials and a 200µm aperture copper Faraday cup. All mounted in a compact Ø12.7mm standard aluminium pin stub. The copper Faraday cup and aluminium pin stub can serve as a Cu/Al reference for detector gain/zero calibration. Intended for: Back Scattered Electron Detector setup and performance, GSR software calibration, EDS detector set-up. Reference materials: Au, Nb, Ge, Si and C. 200µm copper Faraday cup. Product # Unit Price* Add to Quote / Cart 36-000507 each €415,00 Qty:

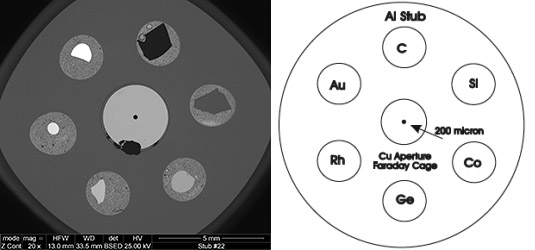

EM-Tec CXS-6BE BSD calibration standard, materials plus F/C on pin stub The EM-Tec CXS-6BE calibration standard includes 6 reference materials and a 200µm aperture copper Faraday cup. All mounted in a compact Ø12.7mm standard aluminium pin stub. The copper Faraday cup and aluminium pin stub can serve as a Cu/Al reference for detector gain/zero calibration. Intended for: Back Scattered Electron Detector setup and performance, GSR software calibration, EDS detector set-up. Reference materials: Au, Rh, Ge, Co, Si and C. 200µm copper Faraday cup. Product # Unit Price* Add to Quote / Cart 36-000522 each €520,00 Qty:

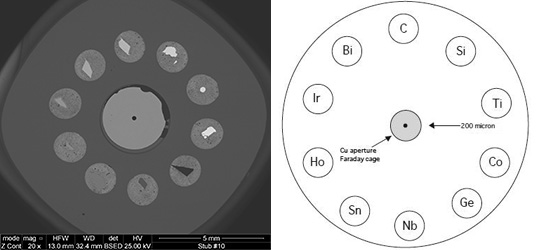

EM-Tec CXS-10BE BSD calibration standard, 10 materials plus F/C on pin stub The EM-Tec CXS-10BE calibration standard includes 10 reference materials and a 200µm aperture copper Faraday cup. All mounted in a compact Ø12.7mm standard aluminium pin stub. The copper Faraday cup and aluminium pin stub can serve as a Cu/Al reference for detector gain/zero calibration. Intended for: Back Scattered Electron Detector setup and performance, GSR software calibration, EDS detector set-up. Reference materials: Bi, Ir, Ho, Sn, Nb, Ge, Co, Ti, Si and C. 200µm copper Faraday cup. Product # Unit Price* Add to Quote / Cart 36-000510 each €687,50 Qty:

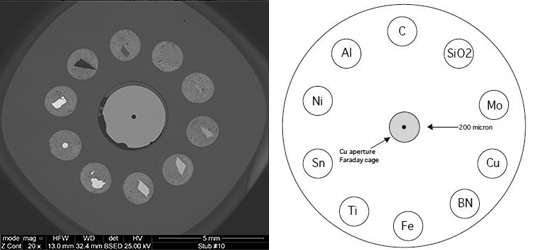

EM-Tec CXS-10BEC2 BSD calibration standard, 10 materials plus F/C on pin stub The EM-Tec CXS-10BEC2 calibration standard includes 10 reference materials and a 200µm aperture copper Faraday cup. All mounted in a compact Ø12.7mm standard aluminium pin stub. The copper Faraday cup and aluminium pin stub can serve as a Cu/Al reference for detector gain/zero calibration. Intended for: Back Scattered Electron Detector setup and performance including light elements , EDS detector set-up. Reference materials: C, SiO2, Mo, Cu, BN, Fe, Ti, Sn, Ni and Al. 200µm copper Faraday cup. Product # Unit Price* Add to Quote / Cart 36-000511 each €650,00 Qty:

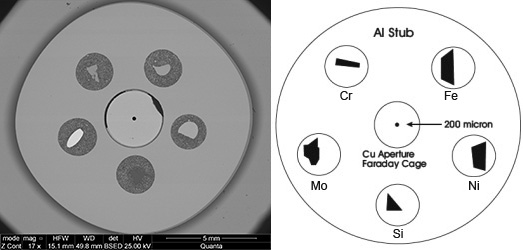

EM-Tec CXS-5TX EDAX TEX calibration standard, 5 materials plus F/C on pin stub The EM-Tec CXS-5TX calibration standard includes 5 reference materials and a 200µm aperture copper Faraday cup. All mounted in a compact Ø12.7mm standard stainless steel pin stub. The copper Faraday cup can be used to measure beam current and to monitor beam stability. Intended for: setting up EDAX detectors and EDS systems for 1-20KeV. Reference materials: Si, Cr, Fe, Ni and Mo. 200µm copper Faraday cup. Product # Unit Price* Add to Quote / Cart 36-000513 each €380,00 Qty:

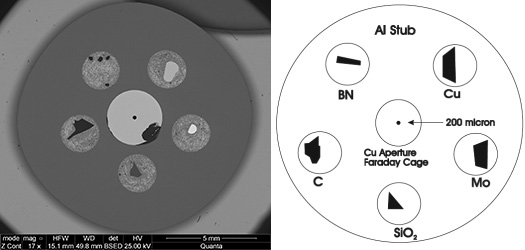

EM-Tec CXS-5LX EDAX LEX/TEX calibration standard, 5 materials plus F/C on pin stub The EM-Tec CXS-5LX calibration standard includes 5 reference materials and a 200µm aperture copper Faraday cup. All mounted in a compact Ø12.7mm standard aluminium pin stub. The copper Faraday cup and aluminium pin stub can serve as a Cu/Al reference for detector gain/zero calibration. Intended for: setting up EDAX detectors and EDS systems including light elelements. Reference materials: Mo, Cu, SiO2, BN and C. 200µm copper Faraday cup. Product # Unit Price* Add to Quote / Cart 36-000514 each €480,00 Qty:

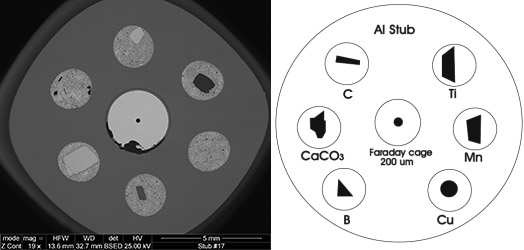

EM-Tec CXS-6F light element and EDS calibration standard, 6 materials plus F/C on pin stub The EM-Tec CXS-6F calibration standard includes 6 reference materials and a 200µm aperture copper Faraday cup. All mounted in a compact Ø12.7mm standard aluminium pin stub. The copper Faraday cup and aluminium pin stub can serve as a Cu/Al reference for detector gain/zero calibration. Intended for: EDS detector performance, light element detection, EDS detector resolution and EDS detector calibration. Reference materials: Cu, Mn, Ti, CaCO3, B and C. 200µm copper Faraday cup. Product # Unit Price* Add to Quote / Cart 36-000517 each €520,00 Qty:

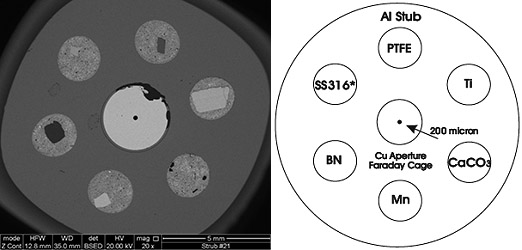

EM-Tec CXS-6LE light element and EDS calibration standard, 6 materials plus F/C on pin stub The EM-Tec CXS-6LE calibration standard includes 6 reference materials and a 200µm aperture copper Faraday cup. All mounted in a compact Ø12.7mm standard aluminium pin stub. The copper Faraday cup and aluminium pin stub can serve as a Cu/Al reference for detector gain/zero calibration. Intended for: EDS detector performance, light element detection, EDS detector resolution, EDS detector calibration and quantitative analysis test. Reference materials: Stainless steel 316, Mn, Ti, CaCO3, PFTE and BN. 200µm copper Faraday cup. Product # Unit Price* Add to Quote / Cart 36-000521 each €480,00 Qty:

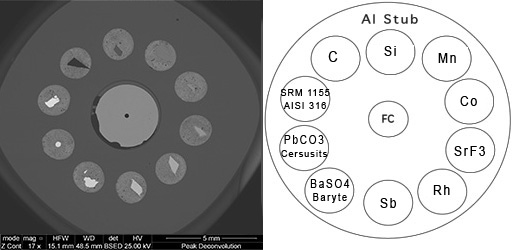

EM-Tec CXS-10GSR EDS/GSR calibration standard, 10 materials plus F/C on pin stub The EM-Tec CXS-10GSR calibration standard includes 10 reference materials and a 200µm aperture copper Faraday cup. All mounted in a compact Ø12.7mm standard aluminium pin stub. The copper Faraday cup and aluminium pin stub can serve as a Cu/Al reference for detector gain/zero calibration. Sb, Ba and Pb are supplied in a stable form. Intended for: GSR software calibration, EDS detector set-up, EDS peak calibration and BSD detector set-up Reference materials: C, Si, Mn, Co, SrF2, Rh, Sb, BaSO4, PbCO3 and SRM 1155 (AISI 316). 200µm copper Faraday cup. Product # Unit Price* Add to Quote / Cart 36-000525 each €750,00 Qty:

EM-Tec RXS-18RE rare earth reference standard, 18 materials plus F/C on stainless steel Ø25.4 x 9 mm disc The EM-Tec RXS-18RE reference standard includes 18 reference rare earth elements and a 200µm aperture copper Faraday cup. All mounted in a Ø25.4 x 9 mm AISI 303 stainless steel disc. Intended as reference standard for quantitative EDS and WDS micro-analysis applications. Reference materials: LaF3, CeO2, Pr, Nd, Sm, EuF3, Gd, Tb, Dy, Ho, Er, Tm, Yb, Lu, Sc, Y, U and C. 200µm copper Faraday cup. Sensitive to air, preferably stored under vacuum or inert gas. Product # Unit Price* Add to Quote / Cart 36-000618 each €1875,00 Qty:

EM-Tec RXS-21RE rare earth reference standard, 21 materials plus F/C on stainless steel disc, Ø25.4 x 9 mm The EM-Tec RXS-21RE reference standard includes 21 reference rare earth elements and a 200µm aperture copper Faraday cup. All mounted in a Ø25.4 x 9 mm AISI 303 disc. Intended as reference standard for quantitative EDS and WDS micro-analysis applications. Reference materials: LaF3, CeO2, PrSi2, NdSi2, Sm, EuF3, Gd, Tb, Dy, Ho, Er, Tm, Yb, Lu, Gd3Ga5O12, Sc, Y, U, ThF4, B and C. 200µm copper Faraday cup. Preferably stored under vacuum or inert gas. Product # Unit Price* Add to Quote / Cart 36-000621 each €2125,00 Qty:

EM-Tec RXS-36M metals reference standard, 36 metals plus F/C on stainless steel disc, Ø25.4 x 9 mm The EM-Tec RXS-36M metals reference standard includes 36 reference metal standards and a 200µm aperture copper Faraday cup. All mounted in a Ø25.4 x 9 mm AISI 303 stainless steel disc. Intended as reference standard for quantitative EDS and WDS micro-analysis applications. Reference materials: Be, C, Al, Si, Ti, V, Cr, Mn, Fe, Co, Ni, Cu, Zn, Ge, Se, Sc, Y, Zr, Mo, Nb, Sn, Sb, Ru, Rh, Pd, Ag, PbTe, Hf, Ta, W, Re, Os, Ir, Au, Bi, and Pt. 200µm copper Faraday cup. Product # Unit Price* Add to Quote / Cart 36-000636 each €1972,00 Qty:

EM-Tec RXS-36MC metals reference standard, 36 metals/compounds plus F/C on stainless steel disc, Ø25.4 x 9 mm The EM-Tec RXS-36MC materials reference standard includes 38 reference metal/compound standards and a 200µm aperture copper Faraday cup. All mounted in a Ø25.4 x 9 mm AISI 303 stainless steel disc. Intended as reference standard for quantitative EDS and WDS micro-analysis applications. Carbon coated to ensure conductivity. Reference materials: B, C, MgO, Al2O3, Si, Ti, V, Cr, Mn, Fe, Co, Ni, Cu, Zn, GaP, SrF2, Zr, Nb, Mo, Pd, Ag, Cd, InP/ GaAs, Sn, Sb, BaF2, Hf/Ta, W, Pt, Au, PbTe and Bi. 200µm copper Faraday cup. Compounds are: Albite NaAlSi3O8 Orthoclase KAlSi3O8 Wollastonite CaSiO3 Pyrite FeS2 Product # Unit Price* Add to Quote / Cart 36-000638 each €1798,00 Qty:

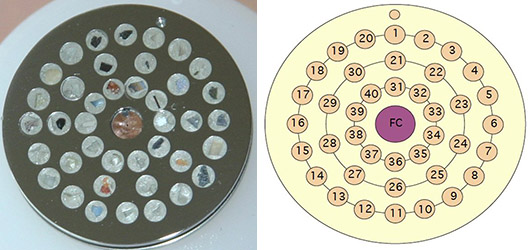

EM-Tec RXS-40MC mineral reference standard, 40 minerals plus F/C on stainless steel Ø 25.4 mm pin stub The EM-Tec RXS-40MC minerals reference standard includes 40 reference minerals and a 200µm aperture copper Faraday cup. All mounted in a Ø25.4 mm pin stub, made from AISI 303 stainless steel. This standard is carbon coated for conductivity. The stoichiometric compositions of these natural minerals are nominal; other impurities or small inclusions may be present. Intended as reference standard for quantitative EDS and WDS micro-analysis applications. 200µm copper Faraday cup and 40 minerals:          1 Albite A NaALSi3O8  21 Magnetite Fe3O4  2 Albite B NaALSi3O8  22 Cuprite Cu2O  3 Pyrite FeS2  23 Chrysoberyl (synthetic) Be3Al2O4  4 Marcasite FeS2  24 Wulfenite PbMoO4  5 Wurtzite (Zn, Fe)S  25 Cerrusite PbCO3  6 Siderite FECO3  26 Vanadinite [Pb(VO4)3]Cl  7 Marmarite (Zn, Fe)S  27 Apatite Ca5(PO4)3(F,Cl,OH)  8 Aragonite CaCO3  28 Casserite SnO2  9 Calcite CaCO3  29 Celestite SrSO4  10 Barytes BaSO4  30 Rutile TiO2  11 Benitoite BaTiSi3O9  31 Anastase TiO2  12 Fluorite CaF2  32 Brookite TiO2  13 Dolomite (CaMg)(CO3)2  33 Gypsum CaSO4.2H2O  14 YAG (synthetic) Y3Al5O12  34 Baddeleyite ZrO2  15 Perovskite CaTiO3  35 Zirconia (synthetic) ZrO2 (8 mole% Y2O3)  16 Sphene CaTiSiO5  36 Beryl (Be3Al2(SiO3)6)  17 Scheelite  37 Adularia (KAlSiO3O8)  18 Tausonite (synthetic) SrTiO3  38 Quartz SiO2  19 Enargite Cu3AsS4  39 Spinel (synthetic) MgAl2O4  20 Haemetite Fe2O3  40 Corundum Al2O3 Product # Unit Price* Add to Quote / Cart 36-000640 each €1950,00 Qty:

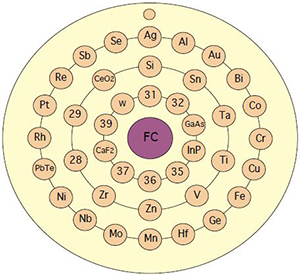

EM-Tec RXS-40MM metals & mineral reference standard, 40 standards plus F/C on stainless steel Ø 25.4 mm pin stub The EM-Tec RXS-40MM metals & minerals reference standard includes 40 standards and a 200µm aperture copper Faraday cup. The standards are: 27 reference metals, 5 compounds and 8 minerals. All mounted in a Ø25.4 mm standard pin stub, made from AISI 303 stainless steel. The standard is carbon coated for conductivity. The stoichiometric compositions of the natural minerals are nominal; other impurities may be present. Intended as reference standard for quantitative EDS and WDS micro-analysis applications with the following elements: Ag, Al, As, Au, Ba, Bi, Ca, Ce, Cl, Co, Cr, Cu, F, Fe, Ga, Ge, Hf, In, K, Mg, Mn, Mo, Na, Nb, Ni, O, P, Pb, Pt, Re, Rh, S, Sb, Se, Si, Sn, Ta, Te, Ti, V, W, Y, Zn, Zr The EM-Tec RXS-40MM includes 27 single elements, 5 compounds & 8 minerals: CaF2 CeO2 GaAs InP PbTe 28 Baryte BaSO4 29 Pyromorphite Pb5(PO4)3Cl 31 Haemetite Fe2O3 32 Pyrite FeS2 35 Adularia KAl2Si3O8 36 Spinel (synthetic) MgAl2O3 37 YAG (synthetic) Y3Al5O12 39 Albite NaALSi3O8 Product # Unit Price* Add to Quote / Cart 36-000642 each €2065,00 Qty:

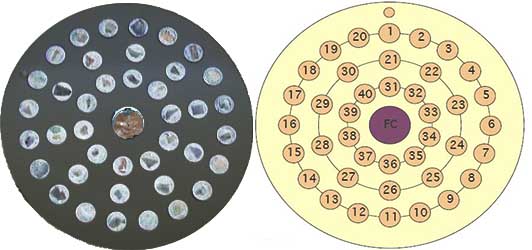

EM-Tec RXS-40MC+CL mineral + cathode luminescence reference standard, 40 minerals plus F/C on stainless steel pin stub, Ø25.4 mm The EM-Tec RXS-40MC+CL minerals reference standard includes 40 reference minerals and a 200µm aperture copper Faraday cup. EDS spectra, cathode luminescence spectra and quantitative EDS analysis results are provided for each mineral. All minerals are mounted in a Ø25.4 mm pin stub, made from AISI 303 stainless steel. The standard is coated coated for conductivity. The stoichiometric compositions of these natural minerals are nominal; other impurities or small inclusions may be present. Intended as reference standard for CL set-up and test, quantitative EDS and WDS micro-analysis applications. 200µm copper Faraday cup and 40 minerals:     1 Albite A NaALSi3O8  21 Strontium titanite SrTiO3  2 Anhydrite CaSO4  22 LaF3  3 Anorthite CalAl2Si2O8  23 Pezzottaite Cs(Be2Li)Al2Si6O18  4 Apatite Ca5(PO4)3  24 ThF4  5 Aragonite CaCO3  25 MgO  6 Baddeleyite ZrO2  26 Pyromorphite Pb5(PO4)3Cl  7 Barite BaSO4  27 Quartz SiO2  8 Benitoite BaTiSi3O9  28 Scheelite CaWO4  9 Beryl Be3Al2(SiO3)6  29 Sodalite Na8(Al6Si6O24)Cl2  10 Calcite CaCO3  30 Spinel MgAl2O4  11 Cassiterite SnO2  31 Spodumene LiAl(SiO3)2  12 Celestine SrSO4  32 Strontionite SrCO3  13 Crysoberyl BeAl2O4  33 Sphene CaTiSiO5  14 Corundum Al2O3  34 Wollastonite CaSiO3  15 Kutnohorite Ca(Mn)(CO3)2  35 YAG (synthetic) Y3Al5O12  16 Diopside CaMgSi2O6  36 Zircon ZrSiO4  17 Dolomite (CaMg)(CO3)2  37 Zirconia (ZrO2 + 10% Y2O3  18 Feldspar KAlSi3O8  38 CdS  19 Fluorite CaF2  39 SrF2  20 Hambergite Be2BO3(OH)  40 ZnS Product # Unit Price* Add to Quote / Cart 36-000644 each €3685,00 Qty:

EM-Tec RXS-6AC Quantitave EDX analyis test standard with Au-Cu alloys, 6 NIST certified materials on pin stub The EM-Tec RXS-6AC test standard includes 6 reference alloys ranging from 100% Au to 100% Cu. All mounted in a compact Ø12.7mm standard aluminium pin stub and coated with carbon. Laser engraving shows the binaire alloy components in wt%. Intended for testing quantitative EDX analysis performance. Reference materials: 100% Au, 80-20 wt% Au-Cu, 60-40 wt% Au-Cu, 40-60 wt% Au-Cu, 20-80 wt% Au-Cu and 100% Cu. Product # Unit Price* Add to Quote / Cart 36-000703 each €795,00 Qty:

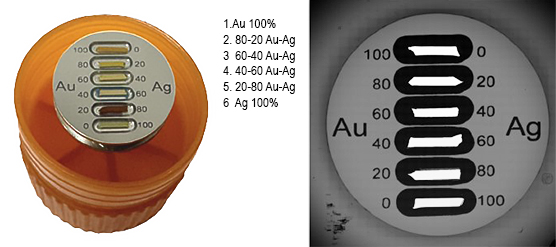

EM-Tec RXS-6AA Quantitave EDX analyis test standard with Au-Ag alloys, 6 NIST certified materials on pin stub The EM-Tec RXS-6AA test standard includes 6 reference alloys ranging from 100% Au to 100% Ag. All mounted in a compact Ø12.7mm standard aluminium pin stub and coated with carbon. Laser engraving shows the binaire alloy components in wt%. Intended for testing quantitative EDX analysis performance. Reference materials: 100% Au, 80-20 wt% Au-Ag, 60-40 wt% Au-Ag, 40-60 wt% Au-Ag, 20-80 wt% Au-Ag and 100% Ag. Product # Unit Price* Add to Quote / Cart 36-000704 each €795,00 Qty:

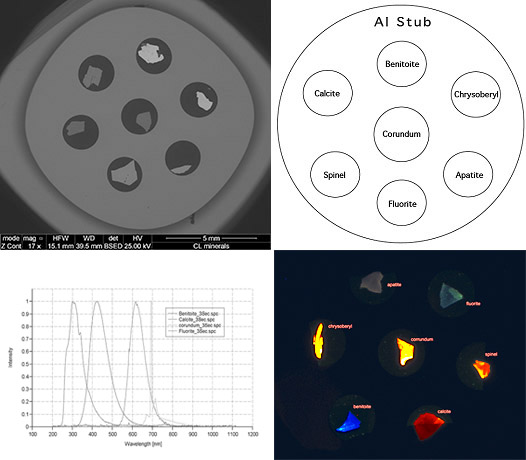

EM-Tec RXS-7CL cathode-luminescence test standard, 7 materials on pin stub The EM-Tec RXS-7CL test standard includes 7 reference compounds. All mounted in a compact Ø12.7mm standard aluminium pin stub. Intended for testing cathode-luminescence detector and spectrometer performance. Reference materials: Benitoite, Chrysoberyl, Apatite, Fluorite, Spinel, Calcite and Corundum. Product # Unit Price* Add to Quote / Cart 36-000707 each €500,00 Qty:

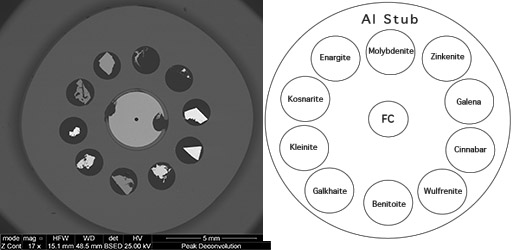

EM-Tec RXS-10PD peak deconvolution test standard, 10 materials plus F/C on pin stub The EM-Tec RXS-10PD peak deconvolution test standard includes 10 reference compounds and a 200µm aperture copper Faraday cup. All mounted in a compact Ø12.7mm standard aluminium pin stub. Intended for testing EDS and WDS spectrometer performance and as reference with overlapping materials. Reference materials: Molybdenite (MoS2), Zinkenite (Pb9Sb22S42), Galena (PbS), Cinnabar (HgS), Wulfrenite (PbMoO4), Benitoite (BaTiSiO9), Galkhaite ((Cs,Tl)(Hg, Cu, Zn)6(As)4S12+trace Sb, Kleinite (Hg2N(ClSO4).n(H2O), Kosnarite (KZr(PO)3) and Enargite (Cu3AsS4). 200µm copper Faraday cup. Product # Unit Price* Add to Quote / Cart 36-000710 each €687,50 Qty:

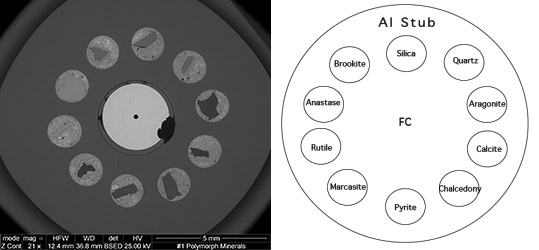

EM-Tec RXS-10RA Raman mineral analysis test standard, 10 materials plus F/C on pin stub The EM-Tec RXS-10RA reference standard includes 10 reference compounds and a 200µm aperture copper Faraday cup. All mounted in a compact Ø12.7mm standard aluminium pin stub. Intended for performance testing for Raman mineral analysis. Reference materials: Silica, Quartz, Aragonite, Calcite, Chalcedony, Pyrite, Marcasite, Rutile, Anastase and Brookite. 200µm copper Faraday cup. Product # Unit Price* Add to Quote / Cart 36-000711 each €687,50 Qty:

EM-Tec RXS-2WSi resolution and contrast test standard, fused W/Si on pin stub The EM-Tec RXS-2WSi contrast test standard includes fused W and Si. Mounted in a compact Ø12.7mm standard aluminium pin stub. Intended for resolution and X-ray versus Z-contrast testing and optimizing of SEM/EDS or SEM/WDS parameters. Reference materials: Fused W / Si Product # Unit Price* Add to Quote / Cart 36-000712 each €290,00 Qty:

EM-Tec RXS-TaSi resolution and contrast test standard, fused Ta/Si on pin stub The EM-Tec RXS-2TaSi contrast test standard includes fused Ta and Si. Mounted in a compact Ø12.7mm standard aluminium pin stub. Intended for resolution and X-ray versus Z-contrast testing and optimizing of SEM/EDS or SEM/WDS parameters. Reference materials: Fused Ta / Si. Product # Unit Price* Add to Quote / Cart 36-000714 each €260,00 Qty:
