Introduction

The EM-Tec top reference holders ensure the same focus conditions for the SEM and same take-off angle for the X-ray analysis system the for all mounts in the holder. They have been designed for SEM/EDS/WDS analysis on multiple metallographic and petrographic mounts. The top reference holders for a single mount eliminate unwanted tilt effect which is useful for precise quantitative analysis and for EBSD analysis. The metallographic mounts are placed against three reference lips and secured with screws from the side. The reference lips are only 1mm thick and bevelled to reduce X-ray analysis interference. The multiple mount top reference holders are intended for the larger analytical SEMs with a large SEM stage. Made from vacuum grade aluminium with stainless steel screws. One of the positions can be used to hold a calibration standard with pure elements and/or known compounds.
The top reference holders for metallographic or petrographic mounts or embeddings are available in 5 sizes:

• Ø25mm / Ø1” mounts
• Ø30mm / Ø1-1/4” mounts
• Ø40mm or Ø1-1/2” mounts
• Ø50mm /  2” mounts
• 49 x 89mm large rectangular block mount>

EM-Tec top reference holders for Ø25mm and Ø1” mounts
For the standard 25mm and 1” mounts the available top reference holders can hold 1, 2, 4 or 6 mounts. The holders for 2 and 4 mounts can also be used without the base part if height of the holder is a limiting factor in the SEM. The top reference holders with a base part include set screws in the base to push the top surface of the mount flat against the reference lips.  If reduced height metallographic mounts or thin samples are used in the top references holders for 1, 2 or 4 mounts, Ø25mm spacer discs can be used under the mount. Pushing from the base allows for small angle adjustment if the polished surfaces of mounts are not perfectly perpendicular to the sides.

Specifications of the EM-Tec top reference holders for Ø25mm / Ø1” mounts :

Holder type	Product nr	Mount size	Mounts	Max height	Top / Base	Sample area	Overall size	Stage comp.
EM-Tec R1-25	12-003266	Ø25mm/ 1”	1	20mm	yes / yes	Ø25mm	31x41x26mm	3.2mm pin stub
EM-Tec R1-25	12-003366	Ø25mm/ 1”	1	20mm	yes / yes	Ø25mm	31x41x26mm	M4
EM-Tec R1-25	12-006266	Ø25mm/ 1”	1	20mm	yes / yes	Ø25mm	31x41x26mm	Ø14mm JEOL
EM-Tec R12	12-003212	Ø25mm/ 1”	2	20mm	yes / yes	26x58mm	73x31x26mm	3.2mm pin stub
EM-Tec R12	12-003312	Ø25mm/ 1”	2	20mm	yes / yes	26x58mm	73x31x26mm	M4
EM-Tec R12	12-006212	Ø25mm/ 1”	2	20mm	yes / yes	26x58mm	73x31x26mm	Ø14mm JEOL
EM-Tec R14	12-003214	Ø25mm/ 1”	4	20mm	yes / yes	52x58mm	73x62x30mm	3.2mm pin stub
EM-Tec R14	12-003314	Ø25mm/ 1”	4	20mm	yes / yes	52x58mm	73x62x30mm	M4
EM-Tec R14	12-006214	Ø25mm/ 1”	4	20mm	yes / yes	52x58mm	73x62x30mm	Ø14mm JEOL
EM-Tec R6	12-000259	Ø25mm/ 1”	6	24mm	yes / no	Ø90mm	Ø98mmx25mm	3.2mm pin stub
EM-Tec R6	12-000359	Ø25mm/ 1”	6	24mm	yes / no	Ø90mm	Ø98mmx25mm	M4
EM-Tec R6	12-000659	Ø25mm/ 1”	6	24mm	yes / no	Ø90mm	Ø98mmx25mm	Ø14mm JEOL

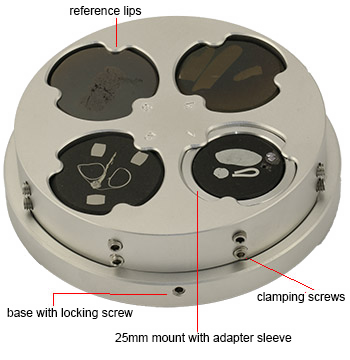

EM-Tec top reference holders for Ø30mm and Ø1-1/4” mounts
For the standard 30mm and 1-1/4” mounts there are top reference holders for 1 or 4 mounts. The holders for 2 and 4 mounts can also be used without the base part if height is a limiting factor in the SEM. The top reference holders with a base part include set screws in the base to push the top surface of the mount flat against the reference lips.  If reduced height metallographic mounts or thin samples are used, Ø25mm spacer discs can be used to ensure that the mounts are pushed against the reference lips. Pushing from the base allows for small angle adjustment if the polished surfaces of mounts are not perfectly perpendicular to the sides.

Specifications of the EM-Tec top reference holders for Ø30mm / Ø1-1/4” mounts :

Holder type	Product nr	Mount size	Mounts	Max height	Top / Base	Sample area	Overall size	Stage comp.
EM-Tec R1-30	12-003267	Ø30mm/ 1-1/4”	1	20mm	yes / yes	Ø30mm	37.5x47.5x26mm	3.2mm pin stub
EM-Tec R1-30	12-003367	Ø30mm/ 1-1/4”	1	20mm	yes / yes	Ø30mm	37.5x47.5x26mm	M4
EM-Tec R1-30	12-006267	Ø30mm/ 1-1/4”	1	20mm	yes / yes	Ø30mm	37.5x47.5x26mm	Ø14mm JEOL
EM-Tec R4	12-000255	Ø30mm/ 1-1/4”	4	20mm	yes / yes	68x68mm	Ø96mmx25mm	3.2mm pin stub
EM-Tec R4	12-000355	Ø30mm/ 1-1/4”	4	20mm	yes / yes	68x68mm	Ø96mmx25mm	M4
EM-Tec R4	12-000655	Ø30mm/ 1-1/4”	4	20mm	yes / yes	68x68mm	Ø96mmx25mm	Ø14mm JEOL

EM-Tec top reference holders for Ø40mm and Ø1-1/2” mounts
For the standard 40mm and 1-1/2” mounts there are top reference holders for 1,2 or 4 mounts. The holders for 2 and 4 mounts can also be used without the base part if height is a limiting factor in the SEM. The top reference holders with a base part include set screws in the base to push the top surface of the mount flat against the reference lips. If reduced height metallographic mounts or thin samples are used, Ø32mm spacer discs can be used to ensure that the mounts are pushed against the reference lips. Pushing from the base allows for small angle adjustment if the polished surfaces of mounts are not perfectly perpendicular to the sides. The EM-Tec R2 and R2-1.5 top reference holders include two positions for calibration standards mounted on a standard 12.7mm pin stub.

Specifications of the EM-Tec top reference holders for Ø40mm and Ø1-1/42” mounts:

Holder type	Product nr	Mount size	Mounts	Max height	Top / Base	Sample area	Overall size	Stage comp.
EM-Tec R1-40	12-003268	Ø40mm/ 1-1/2”	1	20mm	yes / yes	Ø40mm	46x55x26mm	3.2mm pin stub
EM-Tec R1-40	12-003368	Ø40mm/ 1-1/2”	1	20mm	yes / yes	Ø40mm	46x55x26mm	M4
EM-Tec R1-40	12-006268	Ø40mm/ 1-1/2”	1	20mm	yes / yes	Ø40mm	46x55x26mm	Ø14mm JEOL
EM-Tec R2	12-000252	Ø40mm	2	20mm	yes / yes	88x40mm	103x46x26mm	3.2mm pin stub
EM-Tec R2	12-000352	Ø40mm	2	20mm	yes / yes	88x40mm	103x46x26mm	M4
EM-Tec R2	12-000652	Ø40mm	2	20mm	yes / yes	88x40mm	103x46x26mm	Ø14mm JEOL
EM-Tec R2-1.5	12-003258	Ø1-1/2”	2	20mm	yes / yes	88x38mm	103x46x26mm	3.2mm pin stub
EM-Tec R2-1.5	12-003358	Ø1-1/2”	2	20mm	yes / yes	88x38mm	103x46x26mm	M4
EM-Tec R2-1.5	12-006258	Ø1-1/2”	2	20mm	yes / yes	88x38mm	103x46x26mm	Ø14mm JEOL
EM-Tec R22	12-002249	Ø40mm	4	20mm	yes / yes	88x85mm	103x92x30mm	3.2mm pin stub
EM-Tec R22	12-003249	Ø40mm	4	20mm	yes / yes	88x85mm	103x92x30mm	M4
EM-Tec R22	12-006249	Ø40mm	4	20mm	yes / yes	88x85mm	103x92x30mm	Ø14mm JEOL
EM-Tec R22-1.5	12-003259	Ø1-1/2”	4	20mm	yes / yes	88x83mm	103x92x30mm	3.2mm pin stub
EM-Tec R22-1.5	12-003359	Ø1-1/2”	4	20mm	yes / yes	88x83mm	103x92x30mm	M4
EM-Tec R22-1.5	12-006259	Ø1-1/2”	4	20mm	yes / yes	88x83mm	103x92x30mm	Ø14mm JEOL

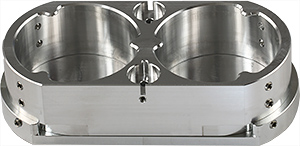

EM-Tec top reference holders for Ø50mm and Ø2” mounts
For the standard 50mm and 2” mounts there is a  top reference holders for 2 mounts. The holders for 2 of the Ø50mm / Ø2” can also be used without the base part if height is a limiting factor in the SEM. The top reference holder with a base part include set screws in the base to push the top surface of the mount flat against the reference lips If reduced height metallographic mounts or thin samples are used, Ø32mm spacer discs can be used to ensure that the mounts are pushed against the reference lips. Pushing from the base allows for small angle adjustment if the polished surfaces of mounts are not perfectly perpendicular to the sides. The EM-Tec R5 top reference holder includes two positions for calibration standards mounted on a standard 12.7mm pin stub.

Specifications of the EM-Tec top reference holders for Ø50mm / Ø2” mounts:

Holder type	Product nr	Mount size	Mounts	Max height	Top / Base	Sample area	Overall size	Stage comp.
EM-Tec R1-50	12-003269	Ø50mm/ 2”	1	20mm	yes / yes	Ø50mm	67x57x26mm	3.2mm pin stub
EM-Tec R1-50	12-003369	Ø50mm/ 2”	1	20mm	yes / yes	Ø50mm	67x57x26mm	M4 thread
EM-Tec R1-50	12-006269	Ø50mm/ 2”	1	20mm	yes / yes	Ø50mm	67x57x26mm	Ø14mm JEOL
EM-Tec R5	12-003256	Ø50mm/ 2”	2	26mm	yes / yes	108x51mm	125x57x32mm	3.2mm pin stub
EM-Tec R5	12-003356	Ø50mm/ 2”	2	26mm	yes / yes	108x51mm	125x57x32mm	M4 thread
EM-Tec R5	12-006256	Ø50mm/ 2”	2	26mm	yes / yes	108x51mm	125x57x32mm	Ø14mm JEOL

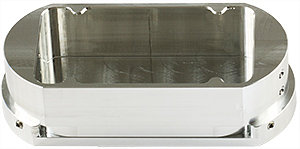

EM-Tec top reference holders for a 49x89mm rectangular block mount
The top reference holder for the large 49x89mm embedding include set screws in the base to push the top surface of the mount flat against the reference lips.
Specifications of the EM-Tec top reference holders for large 49x89mm embeddings

Holder type	Product nr	Mount size	Mounts	Max height	Top / Base	Sample area	Overall size	Stage comp.
EM-Tec R7	12-003257	49 x 89mm	1	26mm	yes / yes	49 x 89mm	125x57x32mm	3.2mm pin stub
EM-Tec R7	12-003357	49 x 89mm	1	26mm	yes / yes	49 x 89mm	125x57x32mm	M4
EM-Tec R7	12-006257	49 x 89mm	1	26mm	yes / yes	49 x 89mm	125x57x32mm	Ø14mm JEOL

Ordering Information for EM-Tec reference holders for metallographic mounts for SEMs using pin stubs; TFS, FEI, Philips, Tescan, Phenom, Aspex, RJLee, AmRay, Cambridge Instruments, Leica and CamScan SEMs

EM-Tec R1-25 top reference holder for 1x Ø25mm / 1 inch metallographic mount, pin Product # Unit Price* Add to Quote / Order 12-003266 each €155,00 Qty:

EM-Tec R1-30 top reference holder for 1x Ø30mm/1-1/4inch metallographic mount1, pin Product # Unit Price* Add to Quote / Order 12-003267 each €165,00 Qty:

EM-Tec R1-40 top reference holder for 1x Ø40mm / 1-1/2 inch metallographic mount, Pin Product # Unit Price* Add to Quote / Order 12-003268 each €175,00 Qty:

EM-Tec R1-50 top reference holder for 1x Ø50mm / 2 inch metallographic mount, Pin Product # Unit Price* Add to Quote / Order 12-003269 each €215,00 Qty:

EM-Tec R6 top reference holder for 6x Ø25mm/1 inch metallographic mounts, pin Product # Unit Price* Add to Quote / Order 12-000259 each €298,00 Qty:

EM-Tec R14 top reference holder for 4 x Ø25mm / 1 inch metallographic mounts, pin Product # Unit Price* Add to Quote / Order 12-003214 each €498,00 Qty:

EM-Tec R4 top reference holder for 4x Ø30mm/1-1/4inch metallographic mounts, pin Product # Unit Price* Add to Quote / Order 12-000255 each €388,00 Qty:

EM-Tec R12 top reference holder for 2x Ø25mm / 1 inch metallographic mounts, pin Product # Unit Price* Add to Quote / Order 12-003212 each €298,00 Qty:

EM-Tec R2 top reference holder for 2x Ø40mm metallographic mounts, Pin. Includes 2 positions for calibration stubs. Product # Unit Price* Add to Quote / Order 12-000252 each €398,00 Qty:

EM-Tec R2-1.5 top reference holder for 2x Ø1-1/2 inch metallographic mounts, pin stub. Includes 2 positions for calibration stubs. Product # Unit Price* Add to Quote / Order 12-003258 each €398,00 Qty:

EM-Tec R22 top reference holder for 4x Ø40mm metallographic mounts, pin. Includes 4 positions for calibration stubs. Product # Unit Price* Add to Quote / Order 12-002249 each €748,00 Qty:

EM-Tec R22-1.5 top reference holder for 4x Ø 1-1/2 inch metallographic mounts, pin. Includes 4 positions for calibration stubs. Product # Unit Price* Add to Quote / Order 12-003259 each €748,00 Qty:

EM-Tec R5 top reference holder for 2x Ø50mm/2 inch metallographic mounts, pin stub. Includes 2 positions for calibration stubs. Product # Unit Price* Add to Quote / Order 12-003256 each €495,00 Qty:

EM-Tec R7 top reference holder for 49x89mm metallographic mount, pin Product # Unit Price* Add to Quote / Order 12-003257 each €595,00 Qty:

Ordering Information for EM-Tec reference holder for metallographic mounts for Hitachi SEMs and the versatile EM-Tec SEM stage adapters

EM-Tec R1-25 top reference holder for 1x Ø25mm / 1 inch metallographic mount, M4 Product # Unit Price* Add to Quote / Order 12-003366 each €155,00 Qty:

EM-Tec R1-40 top reference holder for 1x Ø40mm / 1-1/2 inch metallographic mount, M4 Product # Unit Price* Add to Quote / Order 12-003368 each €175,00 Qty:

EM-Tec R1-50 top reference holder for 1x Ø50mm / 2 inch metallographic mount, M4 Product # Unit Price* Add to Quote / Order 12-003369 each €215,00 Qty:

EM-Tec R1-30 top reference holder for 1x Ø30mm/1-1/4 inch metallographic mount, M4 Product # Unit Price* Add to Quote / Order 12-003367 each €165,00 Qty:

EM-Tec R6 top reference holder for 6x Ø25mm/1 inch metallographic mounts, M4 Product # Unit Price* Add to Quote / Order 12-000359 each €295,00 Qty:

EM-Tec R14 top reference holder for 4 x Ø25mm / 1 inch metallographic mounts, M4 Product # Unit Price* Add to Quote / Order 12-003314 each €495,00 Qty:

EM-Tec R12 top reference holder for 2x Ø25mm / 1 inch metallographic mounts, M4 Product # Unit Price* Add to Quote / Order 12-003312 each €295,00 Qty:

EM-Tec R4 top reference holder for 4x Ø30mm/1-1/4 inch metallographic mounts, M4 Product # Unit Price* Add to Quote / Order 12-000355 each €385,00 Qty:

EM-Tec R2 top reference holder for 2x Ø40mm metallographic mounts, M4. Includes 2 positions for calibration stubs. Product # Unit Price* Add to Quote / Order 12-000352 each €395,00 Qty:

EM-Tec R2-1.5 top reference holder for 2x Ø1-1/2 inch metallographic mounts, M4. Includes 2 positions for calibration stubs. Product # Unit Price* Add to Quote / Order 12-003358 each €395,00 Qty:

EM-Tec R22 top reference holder for 4x Ø40mm metallographic mounts, M4. Includes 4 positions for calibration stubs. Product # Unit Price* Add to Quote / Order 12-003249 each €748,00 Qty:

EM-Tec R22-1.5 top reference holder for 4x Ø1-1/2 inch metallographic mounts, M4. Includes 4 positions for calibration stubs. Product # Unit Price* Add to Quote / Order 12-003359 each €748,00 Qty:

EM-Tec R5 top reference holder for 2x Ø50mm/2 inch metallographic mounts, M4. Includes 2 positions for calibration stubs. Product # Unit Price* Add to Quote / Order 12-003356 each €495,00 Qty:

EM-Tec R7 top reference holder for 49x89mm metallographic mount, M4 Product # Unit Price* Add to Quote / Order 12-003357 each €595,00 Qty:

Ordering Information for EM-Tec top reference holder for metallographic mounts for JEOL SEM stage adapters with Ø 14mm connection hole

EM-Tec R1-25 top reference holder for 1x Ø25mm / 1 inch metallographic mount, Ø14mm JEOL stub Product # Unit Price* Add to Quote / Order 12-006266 each €155,00 Qty:

EM-Tec R1-30 top reference holder for 1x Ø30mm/1-1/4 inch metallographic mount, Ø14mm JEOL stub Product # Unit Price* Add to Quote / Order 12-006267 each €165,00 Qty:

EM-Tec R1-40 top reference holder for 1x Ø40mm/1-1/2 inch metallographic mount, Ø14mm JEOL stub Product # Unit Price* Add to Quote / Order 12-006268 each €175,00 Qty:

EM-Tec R1-50 top reference holder for 1x Ø50mm/ 2 inch metallographic mount, Ø14mm JEOL stub Product # Unit Price* Add to Quote / Order 12-006269 each €215,00 Qty:

EM-Tec R6 top reference holder for 6x Ø25mm/1 inch metallographic mounts, Ø14mm JEOL stub Product # Unit Price* Add to Quote / Order 12-000659 each €298,00 Qty:

EM-Tec R4 top reference holder for 4x Ø30mm/1-1/4 inch metallographic mounts, Ø14mm JEOL stub Product # Unit Price* Add to Quote / Order 12-000655 each €388,00 Qty:

EM-Tec R14 top reference holder for 4 x Ø25mm / 1 inch metallographic mounts, Ø14mm JEOL stub Product # Unit Price* Add to Quote / Order 12-006214 each €498,00 Qty:

EM-Tec R12 top reference holder for 2x Ø25mm / 1 inch metallographic mounts, Ø14mm JEOL stub Product # Unit Price* Add to Quote / Order 12-006212 each €298,00 Qty:

EM-Tec R2 top reference holder for 2x Ø40mm metallographic mounts, Ø14mm JEOL stub. Includes 2 positions for calibration stubs. Product # Unit Price* Add to Quote / Order 12-000652 each €398,00 Qty:

M-Tec R2-1.5 top reference holder for 2x Ø1-1/2 inch metallographic mounts, Ø14mm JEOL Stub. Includes 2 positions for calibration stubs. Product # Unit Price* Add to Quote / Order 12-006258 each €398,00 Qty:

EM-Tec R22 top reference holder for 4x Ø40mm metallographic mounts, Ø14mm JEOL stub. Includes 4 positions for calibration stubs. Product # Unit Price* Add to Quote / Order 12-006249 each €748,00 Qty:

EM-Tec R22-1.5 top reference holder for 4x Ø1-1/2 inch metallographic mounts, Ø14mm JEOL stub. Includes 4 positions for calibration stubs. Product # Unit Price* Add to Quote / Order 12-006259 each €748,00 Qty:

EM-Tec R5 top reference holder for 2x Ø50mm/2 inch metallographic mounts, Ø14mm JEOL stub. Includes 2 positions for calibration stubs. Product # Unit Price* Add to Quote / Order 12-006256 each €495,00 Qty:

EM-Tec R7 top reference holder for 49x89mm metallographic mount, Ø14mm JEOL stub Product # Unit Price* Add to Quote / Order 12-006257 each €595,00 Qty:

Ordering information for Optional parts for the EM-Tec R4 reference holders #12-000255 & 12-000355

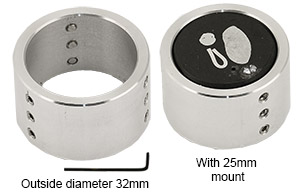

EM-Tec R4 adapter sleeve for 25mm/1inch metallographic mounts, for use with EM-Tec R4 top reference holder Product # Unit Price* Add to Quote / Order 12-000354 each €14,50 Qty:

Ø32x5mm spacer discs for EM-Tec R2 reference holder Product # Unit Price* Add to Quote / Order 12-003355 each €2,50 Qty:

Ø25x5mm spacer discs for EM-Tec R4 reference holder Product # Unit Price* Add to Quote / Order 12-003354 each €1,50 Qty:

© Micro to Nano 2024 Website: www.microtonano.com

Micro to Nano BV Tappersweg 91 2031 ET Haarlem Netherlands

Contact - English and German spoken Tel:+31 (0)85 2013155 Info: info@microtonano.com Administration: accounting@microtonano.com

KvK-nr: 90172744 Btw-nr (Tax ID): NL865230900B01 Bankaccount: 0495516724 IBAN: NL32ABNA0495516724 BIC (SWIFT): ABNANL2AMEL
