Introduction

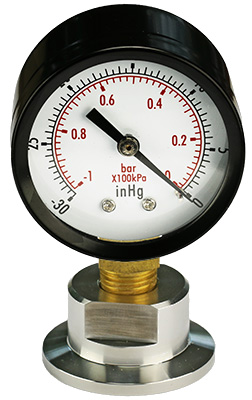

The Micro-Tec Quick-check vacuum test gauge enables a quick and easy way to test vacuum performance, test pump-down time and determine leaks in vacuum lines. Since the Micro-Tec Quick-check vacuum gauge doesn't require an external power source, it is ideal for field applications or in remote locations. The Micro-Tec Quick-check vacuum gauge is equally useful in the lab for quick performance test on vacuum pumps, vacuum lines, vacuum coating systems, vacuum ovens, etc. This affordable tool should be a standard item in any vacuum servicing tool box. The Micro-Tec Quick-check vacuum test includes a triple scale read-out on a Ø50mm dial (0 to -1 bar / 0 to -100kPa / 0 to -30 inches Hg). The gauge is housed in a robust steel case and has a clear glass window. Standard vacuum connection is 1/4” NPT thread in brass. Additionally, versions are available with DN16KF, DN25KF and DN40KF quick change KF vacuum flanges.
Features of the Micro-Tec Quick-check vacuum test gauges are
- Compact analog dial type vacuum gauge
- No power needed
- Ideal for field and remote locations
- Robust metal casing
- Quick vacuum check
- Vacuum range in bar, kPa and inches of Hg
- 1/4” NPT connection standard

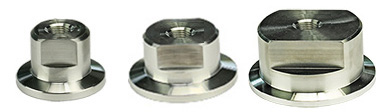

- Optional DN16KF, DN25KF and DN40KF vacuum flanges
specifications of the Micro-Tec Quick-check vacuum gauges
Product # |
||||
Vacuum connections |
1/4” NPT male |
DN16KF |
DN25KF |
DN40KF |
Dial |
Ø50mm |
|||
Vacuum range |
0 to -1bar |
|||
Accuracy |
+/- 4% |
|||
Internal construction |
brass |
|||
Window |
glass |
|||
Use temperature |
-20°C to +60°C |
|||
Dimensions |
52 x 29 x 72mm |
52 x 29 x 84mm |
52 x 29 x 84mm |
52 x 29 x 90mm |
Ordering information for the Micro-Tec Quick-check vacuum gauges
|
|
|
|
|
|||||||||||||||||||||||||
