Nano-Tec gold coated microscope slide and coverslips
Gold coated microscope slides and coverslips with 50, 10, 100 and 500 nm gold film thickness

•
• Nano-Tec gold coated microscope slide |

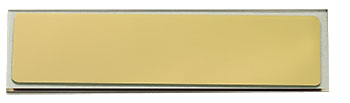

  • Nano-Tec gold coated microscope slide, 75x25x1 mm, 50nm Au
  • Nano-Tec gold coated microscope slide, 75x25x1 mm, 10nm Au
  • Nano-Tec gold coated microscope slide, 75x25x1 mm, 100nm Au
  • Nano-Tec gold coated microscope slide, 75x25x1 mm, 500nm Au
• Nano-Tec gold coated microscope coverslips
  • Nano-Tec gold coated microscope coverslip, Ø15 x 0.15 mm, 50 nm Au
  • Nano-Tec gold coated microscope coverslip, Ø15 x 0.15 mm, 10 nm Au
  • Nano-Tec gold coated microscope coverslip, Ø15 x 0.15 mm, 100 nm Au
  • Nano-Tec gold coated microscope coverslip, Ø15 x 0.15 mm, 500 nm Au
  • Nano-Tec gold coated microscope coverslip, 22 x 22 x 0.2 mm, 50 nm Au
  • Nano-Tec gold coated microscope coverslip, 22 x 22 x 0.2 mm, 10 nm Au
  • Nano-Tec gold coated microscope coverslip, 22 x 22 x 0.2 mm, 100 nm Au
  • Nano-Tec gold coated microscope coverslip, 22 x 22 x 0.2 mm, 500 nm Au

Introduction

The Nano-Tec gold coated microscope slides and coverslips are intended for microscopy, AFM / SPM, nanotechnology and biotechnology applications. They are also useful as opaque light microscopy supports or gold coated substrates for experiments. The Borofloat 33 microscope slides and coverslips are pre-cleaned before coating and coated with Au over an adhesion layer of Cr. Both Cr and Au are deposited in a dedicated high vacuum deposition system with electron beam evaporation sources. The standard gold coating has a thickness of 50nm, additionally available coating thicknesses are: 10nm, 100nm and 500nm Au. The gold coating is not atomically flat; there are height differences in the nm range. The Nano-Tec gold coated microscope slides and coverslips are autoclavable.

Specifications of the Nano-Tec gold coated slides:

Product number	10-AU8631	10-AU8632	10-AU8633	10-AU8634
Microscope slide size	75 x 25 x 1mm
Microscope slide glass	Borofloat 33 – borosilicate glass
Adhesion film material	Chromium, 99.98%
Adhesion film thickness	5nm	2nm	5nm	7.5nm
Gold film thickness	50nm	10nm	100nm	500nm
Gold film purity	99,999%
Roughness	Several nm
Packaging size	Each or Pkg/10	Pkg/10	Each or Pkg/10	Pkg/10

Specifications of the Nano-Tec gold coated coverslips:

Product number	10-AU8615	10-AU8616	10-AU8617	10-AU8618	10-AU8622	10-AU8623	10-AU8624	10-AU8625
Coverslip size	Ø15 x 0.15 mm				22 x 22x 0.2 mm
Coverslip glass	Borofloat 33 – borosilicate glass				Borofloat 33 – borosilicate glass
Adhesion film material	Chromium, 99.98%				Chromium, 99.98%
Adhesion film thickness	5nm	2nm	5nm	7.5nm	5nm	2nm	5nm	7.5nm
Gold film thickness	50nm	10nm	100nm	500nm	50nm	10nm	100nm	500nm
Gold film purity	99,999%				99,999%
Roughness	Several nm				Several nm
Packaging size	Pkg/2 or Pkg/40	Pkg/40	Pkg/40	Pkg/40	Pkg/2 or Pkg/20	Pkg/20	Pkg/20	Pkg/20

Ordering information for Nano-Tec gold coated microscope slides

Nano-Tec gold coated microscope slide, 75x25x1 mm, 50nm Au Product # Unit Price* Add to Quote / Order 10-AU8631-1 Nano-Tec gold coated microscope slide, 75x25x1 mm, 50nm Au Qty: each €75,00 10-AU8631-10 Nano-Tec gold coated microscope slide, 75x25x1 mm, 50nm Au Qty: Pkg/10 €695,00

Nano-Tec gold coated microscope slide, 75x25x1 mm, 10nm Au Product # Unit Price* Add to Quote / Order 10-AU8632-10 Nano-Tec gold coated microscope slide, 75x25x1 mm, 10nm Au Qty: pkg/10 €575,00

Nano-Tec gold coated microscope slide, 75x25x1 mm, 100nm Au Product # Unit Price* Add to Quote / Order 10-AU8633-1 Nano-Tec gold coated microscope slide, 75x25x1 mm, 100nm Au Qty: Each €115,00 10-AU8633-10 Nano-Tec gold coated microscope slide, 75x25x1 mm, 100nm Au Qty: pkg/10 €845,00

Nano-Tec gold coated microscope slide, 75x25x1 mm, 500nm Au Product # Unit Price* Add to Quote / Order 10-AU8634-10 Nano-Tec gold coated microscope slide, 75x25x1 mm, 500nm Au Qty: pkg/10 €1650,00

Ordering information for Nano-Tec gold coated coverslips

Nano-Tec gold coated microscope coverslip, Ø15 x 0.15 mm, 50 nm Au Product # Unit Price* Add to Quote / Order 10-AU8615-2 Nano-Tec gold coated coverslip, Ø15 x 0.15 mm, 50nm Au Qty: Pkg/2 €94,00 10-AU8615-40 Nano-Tec gold coated coverslip, Ø15 x 0.15 mm, 50nm Au Qty: Pkg/40 €960,00

Nano-Tec gold coated microscope coverslip, Ø15 x 0.15 mm, 10 nm Au Product # Unit Price* Add to Quote / Order 10-AU8616-40 Nano-Tec gold coated coverslip, Ø15 x 0.15 mm, 10nm Au Qty: Pkg/40 €816,00

Nano-Tec gold coated microscope coverslip, Ø15 x 0.15 mm, 100 nm Au Product # Unit Price* Add to Quote / Order 10-AU8617-40 Nano-Tec gold coated coverslip, Ø15 x 0.15 mm, 100nm Au Qty: Pkg/40 €995,00

Nano-Tec gold coated microscope coverslip, Ø15 x 0.15 mm, 500 nm Au Product # Unit Price* Add to Quote / Order 10-AU8618-40 Nano-Tec gold coated coverslip, Ø15 x 0.15 mm, 500nm Au Qty: Pkg/40 €1790,00

Nano-Tec gold coated microscope coverslip, 22 x 22 x 0.2 mm, 50 nm Au Product # Unit Price* Add to Quote / Order 10-AU8622-2 Nano-Tec gold coated coverslip, 22 x 22 x 0.2 mm, 50nm Au Qty: Pkg/2 €94,00 10-AU8622-20 Nano-Tec gold coated coverslip, 22 x 22 x 0.2 mm, 50nm Au Qty: Pkg/20 €845,00

Nano-Tec gold coated microscope coverslip, 22 x 22 x 0.2 mm, 10 nm Au Product # Unit Price* Add to Quote / Order 10-AU8623-20 Nano-Tec gold coated coverslip, 22 x 22 x 0.2 mm, 10nm Au Qty: Pkg/20 €700,00

Nano-Tec gold coated microscope coverslip, 22 x 22 x 0.2 mm, 100 nm Au Product # Unit Price* Add to Quote / Order 10-AU8624-20 Nano-Tec gold coated coverslip, 22 x22x 0.2 mm, 100nm Au Qty: Pkg/20 €995,00

Nano-Tec gold coated microscope coverslip, 22 x 22 x 0.2 mm, 500 nm Au Product # Unit Price* Add to Quote / Order 10-AU8625-20 Nano-Tec gold coated coverslip, 22 x 22 x 0.2 mm, 50nm Au Qty: Pkg/20 €1850,00
