Micro-Tec non-conductive double sided adhesive tabs

•
• Non-conductive double sided adhesive tabs
  • Micro-Tec ENT12 Easy-Tabs non-conductive double sided adhesive tabs, Ø 12.5 mm

Introduction

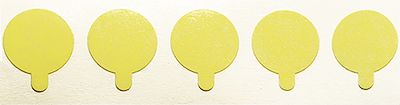

Non-conductive double sided tabs are useful for AFM, LM and SEM applications where conductivity is not a first requirement. The Micro-Tec ENT12 Easy-Tabs area direct replacement for the renown Lift-N-Press tabs, which are no longer available. The Micro-Tec ENT12 Easy-Tabs with a diameter of 12.5mm consists of a thin polypropylene carrier with a film of strong adhesive on both sides. The Micro-Tec ENT12 Easy-Tabs are supplied on siliconized paper strip and covered with a siliconized paper tag with a small tab for easy removal.They provide excellent adhesion, even on “difficult” surfaces. To use: lift the tab with the tag of the backing strip, press the sticky surface to the mount, then peel back the tag leaving the adhesive tab behind. Excellent adhesion to smooth surfaces of metals, plastics, glass, paper, and small particles or fibers. Compatible with Ø12 and Ø15mm AFM discs, Ø12mm mica discs, Ø12.7mm SEM pin stubs, Ø12.2mm JEOL stubs and Ø15mm Hitachi stubs. The benefits of Micro-Tec ENT12 Easy-Tabs premium adhesive tabs are:

• High strength thin adhesive tape (80µm) combined with high tack
• Smoother surface for better particle detection
• Longer shelf life and lower outgassing
• Supplied on a roll

Specifications of the Micro-Tec ENT12 Easy-Tabs non-conductive double sided adhesive tabs

Micro-Tec ENT12 Easy-Tabs non-conductive double sided adhesive tabs, Ø 12.5 mm Product # Unit Price* Add to Quote / Order 71-002112-100 pkg/100 €3,95 Qty: 71-002112-500 pkg/500 €18,25 Qty:
