EM-Tec stub storage boxes for 9.5mm and 12.2mm JEOL cylinder stubs

•
• Order EM-TecJEOL cylinder stub storage boxes
  • EM-Tec SC12 clear styrene storage box for 12x Ø9.5mm JEOL/Ø12.2mm JEOL or 12 pin stubs
  • EM-Tec SR12 really robust stub storage box for 12x Ø9.5mm JEOL/Ø12.2mm JEOL or 12 pin stubs
  • EM-Tec SJ4 clear styrene storage box for 4 x Ø9.5mm JEOL cylinder stubs
  • EM-Tec SJ5 clear styrene storage box for 4 x Ø12.2mm JEOL cylinder stubs

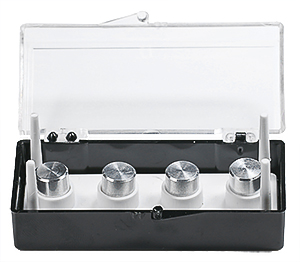

   #13-095004 EM-Tec SJ4 clear styrene storage box


The EM-Tec JEOL stub storage boxes and are designed for storing SEM samples mounted on the 9.5mm and 12,2mm diameter JEOL cylinder stubs. They can be used for handling, long term storage, archiving and shipping SEM samples on smaller JEOL stubs and mounts. Currently available as storage boxes for 4 stubs and 12 stubs:

• EM-Tec SJ4 clear styrene boxwith 4 storage positions for Ø9.5mm JEOL cylinder stubs. The stubs are held in the cavities of the LDPE insert. Post in the middle of the insert keeps the samples clear of the lid. Suitable for both the 5 and 10mm height and angled cylinder stubs. Maximum sample height is 10 to 15 mm, depending on stub height.
• EM-Tec SJ5 clear styrene box with 4 storage positions for Ø12.2mm JEOL cylinder stubs. The stubs are held in the cavities of the LDPE insert. Post in the middle of the insert keeps the samples clear of the lid. Suitable for both the 5 and 10mm height and angled cylinder stubs. Maximum sample height is 4 to 9mm, depending on stub height.

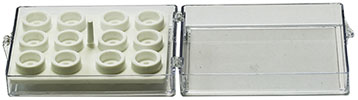

• EM-Tec SC12 clear combi styrene box with 12 storage positions for either Ø9.5mm or Ø12.2mm JEOL cylinder stubs. The stubs are held in the cavities of the LDPE insert. Post in the middle of the insert keeps the samples clear of the lid. Suitable for both the 5 and 10mm height and angled cylinder stubs. Maximum sample height is 13 to 18 mm, depending on stub height. Alternatively, the EM-Tec SC12 storage box can also be used for standard pin stubs.
• EM-Tec SR12 really robust clear combi polystyrene box with 12 storage positions for either Ø9.5mm or Ø12.2mm JEOL cylinder stubs. These robust boxes are stackable. The stubs are held in the cavities of the LDPE insert. Post in the middle of the insert keeps the samples clear of the lid. Suitable for both the 5 and 10mm height and angled cylinder stubs. Maximum sample height is 13 to 18 mm, depending on stub height. Alternatively, the EM-Tec SC12 storage box can also be used for standard pin stubs

EM-Tec SC12 clear styrene storage box for 12x Ø9.5mm JEOL/Ø12.2mm JEOL or 12 pin stubs Product # Unit Price* Add to Quote / Order 13-095012 each €6,45 Qty:

EM-Tec SR12 really robust stub storage box for 12x Ø9.5mm JEOL/Ø12.2mm JEOL or 12 pin stubs Product # Unit Price* Add to Quote / Order 13-095014 each €7,90 Qty:

EM-Tec SJ4 clear styrene storage box for 4 x Ø9.5mm JEOL cylinder stubs Product # Unit Price* Add to Quote / Order 13-095004 each €2,90 Quantity discount: 10 or more: €2,75 each Qty:

EM-Tec SJ5 clear styrene storage box for 4 x Ø12.2mm JEOL cylinder stubs Product # Unit Price* Add to Quote / Order 13-095005 each €2,90 Quantity discount: 0 or more: €2,75 each Qty:
