Introduction
;

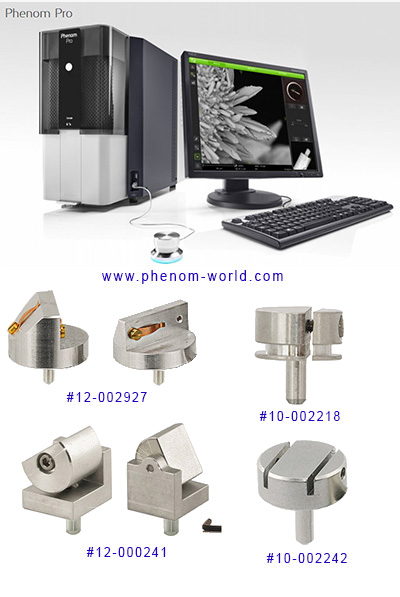

The EM-Tec sample holders and sample stubs offered on these pages are fully compatible with the Phenom desk top SEMs. With the specially designed EM-Tec sample holders, you can extend the versatility of the Phenom microscopes, increase productivity and unlock additional applications. They are divided into groups depending on the compatibility of the EM-Tec holders.
- EM-Tec sample holders compatible with the Phenom ProX, Pro and Pure.
- Additional sample holders compatible with the Phenom metallurgical sample holders used on the Phenom ProX, Pro and Pure.
- EM-Tec PH6 XL mounting pillar and additional sample holders compatible with the Phenom XL.
- EM-Tec S-Clip holders compatible with the Phenom ProX, Pro and Pure.
- EM-Tec stub adapters for using JEOL and Hitachi stubs on the Phenom desk top SEM.
- EM-Tec sample stubs compatible with the Phenom ProX, Pro and Pure
With the EM-Tec sample holders, the versatility of the Phenom desk top SEMs is enhanced and additional applications can be easily unlocked.
The Phenom XL with its larger sample stage is compatible with pin stubs up to 100mm diameter and pin stub based SEM sample holders of up to 100x100x65mm. For the Phenom XL we invite you to explore the vast EM-Tec range of practical of SEM sample holder to increase productivity with the Phenom XL.
1 - EM-Tec SEM sample holders for the Phenom Pure, Pro and ProX desk top microscopes: (images at ordering information)
The EM-Tec sample holders presented on this page are compatible with the standard Phenom sample holder used in the Phenom Prox, Pro and Pure. With dedicated EM-Tec sample holders, tilt can be added to sample movements. Furthermore, samples can be held without the use of adhesives.
Capacity, size and compatibility of the EM-Tec SEM sample holders for the Phenom desk top SEMs:
Product # |
Description |
Capacity |
Dimensions |
Sample holding |
EM-Tec PS15 swivel pin mount |
Ø15mm/90°-0°-90° |
Ø15x15mm |
Adhesive |
|
EM-Tec PS17 mini swivel vise holder |
0-4mm/90°-0°-90° |
Ø12x18mm |
Set screw |
|
EM-Tec TV12 mini variable tilt mount |
0-90° / 11x12mm |
14x14x14/20mm |
sample mounting |
|
EM-Tec P45 fixed 45° tilt holder |
Ø12.7mm pin stub |
Ø12.7x17mm |
Pin stub |
|
EM-Tec PS3 mini stub SampleClamp |
0-2mm thickness |
Ø12.7x3.2mm |
Screw/washer |
|
EM-Tec PS4 mini pin stub vise clamp |
0-4mm thickness |
Ø12.7x7.2mm |
Set screw |
|
EM-Tec PS44 quad vise stub holder |
0-4mm thickness |
Ø25.4x7.2mm |
4 x Set screw |
|
EM-Tec PV5 mini vise clamp |
0-5mm thickness |
Ø25x7.2mm |
Mini vise / thumbscrew |
|
EM-Tec PV5 mini vise clamp |
0-5mm thickness |
Ø25x7.2mm |
Mini vise / thumbscrew |
|
EM-Tec PS6 mini pin stub split vise clamp |
0-6mm thickness |
Ø12.7x7.2mm |
Mini vise jaws |
|
EM-Tec PS9 mini split mount vise clamp |
0-8mm thickness |
Ø15x10mm |
Mini vise jaws |
|
EM-Tec PS7 mini pin stub dual slot vise |
2x1mm thickness |
Ø15x6mm |
Set screws |
|
EM-Tec PS12 pin stub vise clamp |
0-12mm thickness |
Ø25x7.2mm |
Set screw |
|
EM-Tec PS23 pin stub dual slot vise |
2x2.5mm thicknesss |
Ø25x7.2mm |
Set screw |
|
EM-Tec PS27 pin stub dual slot vise |
2x7mm thickness |
Ø25x7.2mm |
Set screw |
|
EM-Tec GS2 mini pin stub needle clamp |
0-Ø2.0mm |
Ø6x4mm |
Set screw |
|
EM-Tec PS5 clamp up to Ø3.5mm |
0-Ø3.5mm |
Ø12.7x7.2mm |
Set screw |
|
EM-Tec PS8 clamp up to Ø6.0mm |
0-Ø6.0mm |
Ø12.7x7.2mm |
Set screw |
|
EM-Tec PS16 clamp up to Ø16mm |
0-Ø16mm |
Ø25.5x10mm |
Set screw |
2 – Sample holders for the Phenom metallurgical holders used in the Phenom Pure, Pro and ProX (images at ordering information)
The Phenom metallurgical sample holder and charge reduction metallurgical sample holders are compatible with 32mm metallographic mounts; this cover the 30mm and the 1-1/4” (32mm) metallographic mounts. A range of sample holders have been specifically designed to make more use of the Phenom metallurgical holders and to extend the range of samples which can be examined.
Capacity, size and compatibility of the SEM sample holders for the Phenom metallurgical holder:
Product # |
Description |
Capacity |
Dimensions |
Sample holding |
PHF32 filter holder kit |
Ø32mm filters |
Ø32x20.5mm |
Clamp in holder |
|
PHA32 adapter ring for 25mm/1” mounts |
Ø25mm /1” |
Ø32/26x10mm |
Clamp in holder |
|
PH22 bulk sample holder |
Ø22x12mm |
Ø32x20mm |
Set screw |
|
PH32 vise type holder |
0-22mm |
Ø32x20mm |
Set screw |
3 – EM-Tec PH6 XL mounting pillar and additional sample holders for the Phenom XL (images at ordering information)

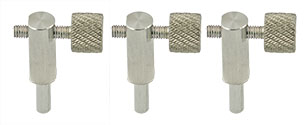

The Phenom XL desk top SEM with the large stage has a capacity of 100x100x65mm (L x W x H). The unique pin plate allows for either large sample, multiple samples and large sample holders with pin. Alternatively, the unique XL mounting pillars can be used to clamp samples between the mounting pillar. The XL mounting pillars can be freely positioned in the XL pin plate to accommodate large, awkward and even multiple samples. The XL mounting pillar are sold in sets of three and consists of the pin plate compatible pillars with standard 3.2mm pin and M3 threaded holes and 16mm long M3 threaded thumb screws. Alternatively, other M3 threaded screws can be used to hold a sample. Each XL pillar has two threaded holes for added versatility.
Product # |
Description |
Dimensions |
Sample holding |
XL mounting pillar |
Pillar Ø6x15mm, 2 x M3 threaded holes with pin |
Thumb screws |
Due to the large stage capacity, the Phenom XL is compatible with most pin type SEM holders and all standard pin stubs up to 100mm diameter. These can be found on:
All pin stubs with standard pin and diameter up to 100mm.
All EM-Tec S-Clip with standard pin and diameter up to 100mm.
All EM-Tec sample holders with standard pin and maximum size of 100x100x65mm.
4 – EM-Tec S-Clip holders for the Phenom desk top SEMs (images at ordering information)
The EM-Tec S-Clips holders with the spring-loaded sample clips compatible with the Phenom Pure, Pro, ProX and XL desk top SEMs are available on:
- standard horizontal pin stub
- 45° and 45° /90° pin stubs
- 90° pin stubs.
They are useful to hold thin sample such as Si wafer chips, metal strips, plastic foils, etc.
Product # |
Style |
Stub size |
S-Clips # |
Horizontal, single S-Clip on Ø19mm pin stub |
Ø19x3.2mm |
1 |
|
Horizontal |
Ø25x3.2mm |
1 or 2 or 3 |
|
0-180° EM-Tec swivel mount with S-Clip |
Ø15x3mm |
1 |
|
0-180° EM-Tec variable tilt with S-Clip |
11x12mm |
1 |
|
45° mount with single S-Clip |
Ø25x16mm |
1 |
|
45°/90° mount with two S-Clips |
Ø25x16mm |
2 |
|
2 x 90°dual 90° mount with two S-Clips |
Ø25x16mm |
2 |
|
1 x 90° single 90° mount with single S-Clip |
Ø12.7x17mm |
1 |
|
4 x 90°quadruple 90° mount with four S-Clips |
12.7x12.7x15mm |
4 |
5 - EM-Tec SEM stub adapters for the Phenom desk top SEMs: (images at ordering information)
With the EM-Tec SEM stub adapters, Hitachi and JEOL SEM stubs can be used with the Phenom desk top SEM. Quick, no need to re-mount the sample and sample integrity is fully retained. Recommended SEM stub adapters are:
Product # |
Type |
Base |
Adapts to |
Overall size |
PT4 |
Pin stub |
Hitachi stub with M4 thread |
Ø15x15mm |
|
PJ12 |
Pin stub |
JEOL stubs with 9.5 and 12.2mm diameter |
Ø30x10mm |
6 - EM-Tec sample stubs for the Phenom Pure, Pro and ProX desk top SEM (images at ordering information)
The Phenom Pure, Pro and ProX desk top SEMs in the standard configuration, are using the unique Phenom sample holders for samples up to 25mm diameter. All pin stubs, pin stub adapters and small pin stub based sample holders up to a diameter of 25mm on this page can be used in the Phenom Pure, Pro and ProX desk top SEMs. Available sample stubs for the Phenom Pure, Pro and ProX are:
- Standard flat pins stubs with the popular 12.7 and 25.4mm diameter. Additional sizes are 6, 10, 19mm and 12.7mm with a flat.
- Angled pin stubs with 45°, 45/90° and 90° pre-tilt surfaces.
- Engraved pin stubs with 12.7, 19 and 25.4mm diameter for multiple small specimens and correlative microscopy.
- Dish type pin stub with 12.7mm diameter top for fluid samples and solutions.
