Introduction
The Micro-Tec wafer carrier trays are specifically designed to ship, transport or store semiconductor wafers. Primarily designed to hold thin silicon wafers, but are equally suitable for glass, quartz, sapphire, GaAs and other thin round wafers in sizes from Ø1” to 6” or Ø25 to 150mm.
These wafer carriers are also known as coin shippers. They comprise of three parts: base, spider spring and locking cap. The inside of the base is concave to ensure that the wafers are held at the edges only. The spider spring holds the wafer in place once the cap is locked to the base. Available in sizes of 1” to 6” or equivalent 25 to 150mm diameter which a choice of two materials:
- Sturdy, Translucent, natural polypropylene.
- Anti-static, opaque, black (carbon filled) polypropylene – ESD safe and protects from light exposure. Surface resistivity 10E4 – 10E5 Ω/cm2, volume resistivity 10E4 Ω/cm.
Sold in packages of 5.
 |  |

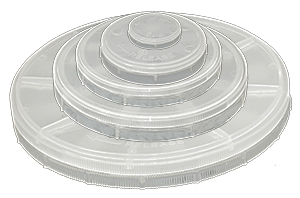

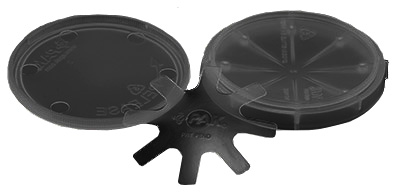

| translucent, natural polypropylene wafer carrier | Anti-static, black (carbon filled) polypropylene wafer carrier. |
Micro-Tec wafer carrier tray specifications:
Product # |
Wafer Size |
Dimensions |
Material |
1” / 25mm |
Ø33 x 10mm |
Natural translucent PP |
|
1.5” / 28mm |
Ø47 x 11mm |
Natural translucent PP |
|
2” / 51mm |
Ø60 x 11mm |
Natural translucent PP |
|
3” / 76mm |
Ø84 x 11mm |
Natural translucent PP |
|
4” / 100mm |
Ø110 x 11mm |
Natural translucent PP |
|
6” / 150mm |
Ø160 x 11mm |
Natural translucent PP |
|
1” / 25mm |
Ø33 x 10mm |
Anti-static, black PP |
|
2” / 51mm |
Ø60 x 11mm |
Anti-static, black PP |
|
3” / 76mm |
Ø84 x 11mm |
Anti-static, black PP |
|
4” / 100mm |
Ø110 x 11mm |
Anti-static, black PP |
|
6” / 150mm |
Ø160 x 11mm |
Anti-static, black PP |
Ordering Information for translucent, natural polypropylene Micro-Tec wafer carriers
|
|
|
|
|
|
|
|
|
|
|
