EM-Tec SEM stub based compact sample holders
Introduction
a few Examples

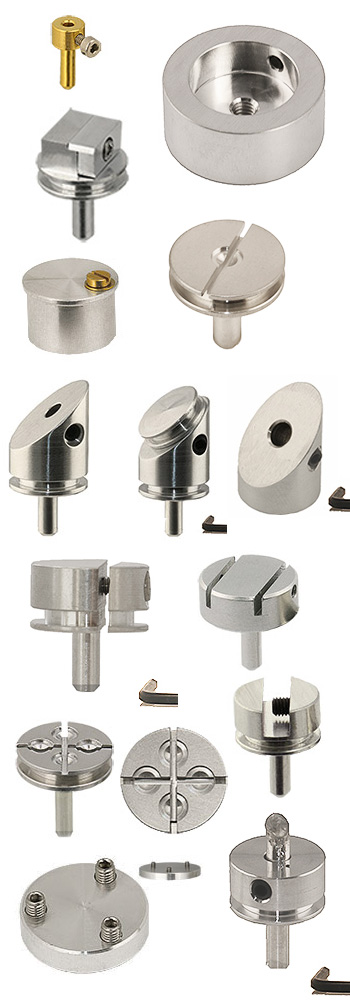

The EM-Tec stub based SEM sample holders are all small SEM sample holders based on (modified) SEM sample stubs. They have the same footprint as the original SEM sample stubs and are directly compatible with the SEM stage or SEM sample stub holder. These affordable sample holders increase efficiency and reduce sample preparation time. Using sample holders reduces the use of conductive adhesives which can be a source of contamination. The EM-Tec stub based small sample holders formats are:
The pin stub based sample holders comprise the largest selection; they can be easily used on other SEM platforms by using the cost efficient EM-Tec SEM stub adapters. All EM-Tec compact SEM stub based SEM sample holders are precision machined from vacuum grade aluminium unless otherwise noted. Provided with set screws and allen keys.
EM-Tec pin stub based compact sample holders
There is a wide choice of the compact EM-Tec pin stub based sample holders. Since they are small and using the standard pin stub format, they will fit in virtually any SEM compatible with standard pin stubs. They are based on standard pin stubs or made from modified pin stubs with a pin size of Ø3.15mm and a pin length of 9.5mm. Ideal for table top SEMs such as the Phenom but just as useful on laboratory grade SEMs and FESEMs. Using a sample holders is quicker, cleaner and provides more stability than conductive tapes or glues.
Capacity, stub size and sample holding method of the EM-Tec pin stub based compact sample holders
Product # |
Style |
Capacity |
Size w/o pin |
Sample holding method |
12-000117 |
EM-Tec PS2 |
0 – Ø2mm |
Ø6x4mm |
Set screw |
10-002212 |
EM-Tec PS3 |
2mm thickness |
Ø12.7x3.2mm |
Screw/washer |
10-002240 |
EM-Tec PS4 |
0 – 4mm |
Ø12.7x7.2mm |
Set screw |
10-002244 |
EM-Tec PS44 |
4 x 0-4mm |
Ø25.4x7.2mm |
4 x Set Screw |
10-002223 |
EM-Tec PS23 |
2x2.5mm |
Ø25x7.2mm |
Set screw |
10-002227 |
EM-Tec PS27 |
2x7mm thickness |
Ø25x7.2mm |
Set screw |
10-002218 |
EM-Tec PS6 |
0 – 6mm |
Ø12.7x7.2mm |
Mini vise jaws |
12-000230 |
EM-Tec PS9 |
0 – 8mm |
Ø15x10mm |
Mini vise jaws |
10-002242 |
EM-Tec PS7 |
2 x 1mm |
Ø15x10mm |
Set screw |
12-000112 |
EM-Tec PS12 |
0 – 12mm |
Ø25x7.2mm |
Set Screw |
10-002213 |
EM-Tec PS5 |
0 – Ø3.5mm |
Ø12.7x7.2mm |
Set Screw |
10-002216 |
EM-Tec PS8 |
0 – Ø6mm |
Ø12.7x7.2mm |
Set Screw |
12-000116 |
EM-Tec PS16 |
0 – Ø16mm |
Ø25x7.2mm |
Set Screw |
10-002211 |
EM-Tec PS11 |
1 x 3.05mm Grid |
Ø12.7x3.2mm |
Gravity |
10-002214 |
EM-Tec PS14 |
4 x 30.5mm Grid |
Ø12.7x3.2mm |
Gravity |
11-000210 |
EM-Tec PE10 |
Ø3.2mm pin |
Ø12.7x13.2mm |
Set screw |
12-000211 |
EM-Tec PS15 |
Ø15mm |
Ø15x15mm |
Adhesive |
12-000270 |
EM-Tec F12 |
2 x FIB grid |
Ø12.7x8mm |
Vise jaws |
10-002236 |
EM-Tec P36 |
Ø3.2mm pin |
Ø12.7x17mm |
Set screw |
10-002238 |
EM-Tec P38 |
Ø3.2mm pin |
Ø12.7x17mm |
Set screw |
10-002245 |
EM-Tec P45 |
Ø3.2mm pin |
Ø12.7x17mm |
Set screw |
10-002246 |
EM-Tec P45M |
M4 |
Ø12.7x17mm |
M4 thread |
10-002270 |
EM-Tec P70 |
Ø3.2mm pin |
Ø12.7x20mm |
Set screw |
10-002274 |
EM-Tec P70M |
M4 |
Ø12.7x20mm |
M4 thread |
EM-Tec cylinder stub based compact sample holders for JEOL SEMs
The compact EM-Tec cylinder stub based sample holders for JEOL SEMs are made from either the Ø12.2x10 or Ø25x10mm JEOL cylinder stubs. They are directly compatible with the JEOL stub holders on the SEM stage. Perfect for the JEOL Neoscope 5000/6000 table top SEMs, but equally useful on laboratory grade SEMs and FESEMs.
Capacity, stub size and sample holding methode of the EM-Tec JEOL stub based compact sample holders
Product # |
Style |
Capacity |
Stub size |
Sample holding method |
12-000502 |
EM-Tec JS2 |
0 – Ø2mm |
Ø12.2x10mm |
Set screw |
12-000503 |
EM-Tec JS3 |
2mm thickness |
Ø12.2x10mm |
Screw/washer |
12-000504 |
EM-Tec JS4 |
0 – 4mm |
Ø12.2x10mm |
Set screw |
12-000512 |
EM-Tec JS12 |
0 – 12mm |
Ø25x10mm |
Set screw |
12-000514 |
EM-Tec JS14 |
0 – Ø16mm |
Ø25x10mm |
Set screw |
EM-Tec M4 stub based compact sample holders for Hitachi SEMs
The compact EM-Tec cylinder stub based for Hitachi SEMs are based on either the Ø15mm or the Ø25mm Hitachi M4 sample stubs. They can be used directly on the Hitachi SEM stage adapters and the EM-Tec SEM stage adapters with M4 thread. They are perfect for the Hitachi TM1000, TM3000, TM3030 table top SEMs, but will be very useful on all other Hitachi SEMs as well.
Capacity, stub size and sample holding methode of the EM-Tec Hitachi M4 stub based compact sample holders
Product # |
Style |
Capacity |
Stub size |
Sample holding method |
12-000331 |
EM-Tec HS2 |
0 – Ø2mm |
Ø15x10mm x M4 |
Set screw |
12-000311 |
EM-Tec HS3 |
2mm thickness |
Ø15x10mm x M4 |
Screw/washer |
12-000306 |
EM-Tec HS6 |
0 – 6mm |
Ø15x10mm x M4 |
Set screw |
12-000330 |
EM-Tec HS9 |
0 – 8mm |
Ø15x10mm x M4 |
Mini vise jaws |
12-000315 |
EM-Tec HS15 |
0- 16mm |
Ø25x10mm x M4 |
Set screw |
12-000328 |
EM-Tec HS7 |
2 x 1mm |
Ø15x6mm x M4 |
Set screw |
12-000307 |
EM-Tec HS10 |
0 – Ø10mm |
Ø15x10mm x M4 |
Set screw |
12-000304 |
EM-Tec HS12 |
0 – Ø12,2mm |
Ø15x10mm x M4 |
Set screw |
12-000324 |
EM-Tec HS16 |
0 – Ø16mm |
Ø25x10mm x M4 |
Set screw |
12-000356 |
EM-Tec H3 |
3 x Ø15mm |
Ø25x6mm x M4 |
3 x M4 |
11-000309 |
EM-Tec HE-10 |
10mm H |
Ø15x10mm x M4 |
M4 |
12-000345 |
H45P |
Ø3.2mm pin |
Ø12.7x17mm x M4 |
Set screw |
12-000341 |
H45 |
M4 |
Ø12.7x17mm x M4 |
M4 |
12-000370 |
H70P |
Ø3.2mm pin |
Ø12.7x20mm x M4 |
Set screw |
12-000371 |
H70 |
M4 |
Ø12.7x20mm x M4 |
M4 |
Ordering Information for EM-Tec pin stub based compact sample holders for SEMs using pin stubs: TFS, FEI, Philips, Tescan, Phenom, Aspex, RJLee, AmRay, Cambridge Instruments, Leica and CamScan SEMs
*Prices without VAT, but within the EU, we have to check for valid VAT-ID.
| EM-Tec PS4 mini pin stub vise clamp 0-4mm, Ø12.7x7.2mm, pin |
 |
EM-Tec PS4 mini pin stub vise clamp for sample thickness from 0-4mm. The sample is held vertically with a small set screw. Most effective way to study cross sections of thin samples. Holder size w/o pin is Ø12.7x7.2mm. |
| Product # |
Unit |
Price* |
Add to Quote / Order |
| 10-002240 |
each |
€7,50
|
|
| 10-002240-10 |
pkg/10 |
€71,25
|
|
|
| EM-Tec PS6 mini split pin stub vise clamp 0-6mm, Ø12.7x7.2mm, pin |
 |
EM-Tec PS6 mini pin stub split vise clamp for sample thickness from 0-6mm. The sample is clamped between the two min vise clamps. The split vise jaws are closed by an allen screw. Closed split vise diameter is 12.7mm; when opened it is 19x12.7mm. |
| Product # |
Unit |
Price* |
Add to Quote / Order |
| 10-002218 |
each |
€24,50
|
|
|

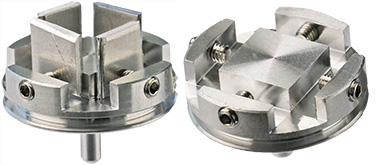

| EM-Tec PS44 quad vise stub holder for 4 samples from 0-4mm, pin |
 |
The samples are held vertically with 4 small set screws. Most effective way to study cross sections or thin samples. Holder size w/o pin is Ø25.4 x 7.2mm. Standard pin. |
| Product # |
Unit |
Price* |
Add to Quote / Order |
| 10-002244 |
each |
€29,50
|
|
|
| EM-Tec PS7 mini pin stub dual slot vise clamp, 2x1mm, Ø15x6mm, pin |
 |
EM-Tec PS7 mini pin stub dual slot vise with two slots of one mm wide. Ideal for holding thin wafer pieces samples for cross section imaging. Samples are clamped by set screws. Holder size w/o pin is Ø15x6mm. |
| Product # |
Unit |
Price* |
Add to Quote / Order |
| 10-002242 |
each |
€19,50
|
|
|
| EM-Tec PS12 pin stub vise clamp 0-12mm, Ø25x7.2mm, pin |
 |
EM-Tec PS12 pin stub vise clamp for sample thickness from 0-12mm. The sample is held vertically with a set screw. Most effective way to study cross section of thin samples. Holder size w/o pin is Ø25x6mm. |
| Product # |
Unit |
Price* |
Add to Quote / Order |
| 12-000112 |
each |
€24,50
|
|
|
| EM-Tec PS5 pin stub round clamp up to Ø3.5mm, Ø12.7x7.2mm, pin |
 |
EM-Tec PS5 mini pin stub to clamp round shaped samples up to Ø3.5mm. Samples are held by a set screw. Pin stub top diameter is 12.7mm. |
| Product # |
Unit |
Price* |
Add to Quote / Order |
| 10-002213 |
each |
€18,50
|
|
|
| EM-Tec PS8 pin stub round clamp up to Ø6mm, Ø12.7x7.2mm, pin |
 |
EM-Tec PS8 mini pin stub to clamp round shaped samples up to Ø6.0mm. Samples are held by a set screw. Pin stub top diameter is 12.7mm. |
| Product # |
Unit |
Price* |
Add to Quote / Order |
| 10-002216 |
each |
€18,50
|
|
|
| EM-Tec PS15 Pin stub swivel mount, Ø15x15mm, pin |
 |
EM-Tec PS15 swivel pin stub mount. The head of the mount is attached to the pin via a swivel hinge which allows for 90 degrees tilting each way. Excellent mount for SEMs without tilting facilities or when random tilt angled are needed. When the desired tilt angle is set, the top is secured with a socket cap screw. Top diameter is 15mm and height above pin is 15mm. |
| Product # |
Unit |
Price* |
Add to Quote / Order |
| 12-000211 |
each |
€38,50
|
|
|
| EM-Tec PS16 pin stub round clamp up to Ø16mm, Ø25x7.2mm, pin |
 |
EM-Tec PS16 pin stub to clamp round shaped samples up to Ø16.0mm. Samples are held by a set screw. Pin stub top diameter is 25mm. |
| Product # |
Unit |
Price* |
Add to Quote / Order |
| 12-000116 |
each |
€24,50
|
|
|
| EM-Tec P36 fixed 36°pre-tilt holder for Zeiss FIB systems, Ø12.7x17mm, pin |
 |
EM-Tec P36 fixed angle 36° tilt holder for Zeiss pin stubs. Used to pre-tilt samples 36° for Zeiss CrossBeam FIB systems. Size without pin is Ø 12.7 x 17 mm. |
| Product # |
Unit |
Price* |
Add to Quote / Order |
| 10-002236 |
each |
€39,50
|
|
|
| EM-Tec P38 fixed 38°pre-tilt holder for TFS / FEI FIB systems, Ø12.7x17mm, pin |
 |
EM-Tec P38 fixed 38° tilt holder for TFS / FEI pin stubs. Used to pre-tilt samples 38° for TFS / FEI Dual Beam FIB systems. Size without pin is Ø 12.7 x 17 mm. |
| Product # |
Unit |
Price* |
Add to Quote / Order |
| 10-002238 |
each |
€39,50
|
|
|
| EM-Tec GR2 needle / tube sample holder for up to Ø2mm, brass, pin |
 |
EM-Tec PS2 mini pin stub tube/needle clamp. Capacity is up to Ø2mm diameter, the needle is secured with a small set screw. This holder is ideal for probes, needles, wire and thin tubes. Holder size is Ø6x4mm. Made from brass and plated with 1µm of pure gold. |
| Product # |
Unit |
Price* |
Add to Quote / Order |
| 12-000117 |
each |
€22,50
|
|
|
| EM-Tec P45 fixed 45° pre-tilt holder for pin stubs/holders, Ø12.7x17mm, pin |
 |
EM-Tec P45 fixed 45° tilt holder for standard pin stubs. Image sample surfaces or cross sections directly under 45°. Particularly useful for table top SEMs without tilt facilities. Size w.o. pin is Ø12.7x17mm. |
| Product # |
Unit |
Price* |
Add to Quote / Order |
| 10-002245 |
each |
€39,50
|
|
|
| EM-Tec P45M fixed 45° pre-tilt holder for Hitachi M4 stubs/holders, Ø12.7x17mm, pin |
 |
EM-Tec P45M fixed 45° tilt holder for Hitachi M4 cylinder stubs. Enables imaging sample surfaces or cross sections directly under 45° w/o having to tilt the SEM stage. Very useful for tabletop SEMs without tilt facility. Dimensions without pin are Ø 12,7 x 17 mm. |
| Product # |
Unit |
Price* |
Add to Quote / Order |
| 10-002246 |
each |
€39,50
|
|
|
| EM-Tec PH10 pin stub extender, 10mm extra height, Ø12.7x22.7mm, aluminium |
 |
EM-Tec PH10 pin stub extender, 10mm extra height, Ø12.7x22.7mm, aluminium. Use when extra height is needed to bring the sample closer to the pole piece of the SEM, without using the Z-axis of the stage. Includes Allen key. |
| Product # |
Unit |
Price* |
Add to Quote / Order |
| 11-000210 |
each |
€24,50
|
|
|
| EM-Tec P70 EBSD 70° / 20° pre-tilt holder for pin stubs/holders, 12.5x12.5x20mm, pin |
 |
EM-Tec P70 fixed 70° EBSD tilt holder for pin stubs and pin stub type sample holders. Tilts the sample surface directly at the correct angle (70°) for EBSD analysis applications. Suitable for surfaces and cross sections. Size without pin is 12.7 x 12.7 x 20mm. |
| Product # |
Unit |
Price* |
Add to Quote / Order |
| 10-002270 |
each |
€44,50
|
|
|
| EM-Tec F12 compact FIB grid holder for up to 2 FIB grids, pin |
 |
EM-Tec F12 is a basic yet practical FIB grid holder with pin for 2 FIB grids. Based on the standard Ø12.7mm pin stub it is compact and useful for storing valuable FIB samples. The 10mm wide vise clamp includes a ledge for easy positioning of the FIB grids |
| Product # |
Unit |
Price* |
Add to Quote / Order |
| 12-000270 |
each |
€29,50
|
|
|
| EM-Tec P70M EBSD 70° pre-tilt holder for Hitachi M4 stubs/holders, Ø12.7x20mm, pin |
 |
EM-Tec P70M fixed 70° EBSD tilt holder for Hitachi M4 stubs and sample holders with M4 threaded hole. Tilts the sample surface directly at the correct angle (70°) for EBSD analysis applications. Size without pin is 12.7 x 12.7 x 20 mm. |
| Product # |
Unit |
Price* |
Add to Quote / Order |
| 10-002274 |
each |
€44,50
|
|
|
| EM-Tec PS11 mini pin stub grid holder for 1 x TEM grid, Ø12.7x3.2mm, pin |
 |
EM-Tec PS11 mini pin stub holder for a single TEM or FIB grid. TEM grid rim rests on a ledge; in the middle of the cavity there is dimple; samples on the grid are free standing and not touched by the holder. Groove is provided for easy loading/unloading of the TEM grid with fine tweezers. The TEM grid is not clamped. This holder is used for quickly checking a TEM grid in the SEM or as a grid holder for a carbon evaporator. Pin stub top diameter is 12.7mm. |
| Product # |
Unit |
Price* |
Add to Quote / Order |
| 10-002211 |
each |
€19,50
|
|
|
| EM-Tec PS14 mini pin stub grid holder for 4 x TEM grids, Ø12.7x3.2mm, pin |
 |
EM-Tec PS14 mini pin stub holder for four TEM or FIB grids. TEM grid rim rests on a ledge; in the middle of each cavity there is dimple to provide a non-touching area for the mesh of the grid. Grooves are provided for easy loading/unloading of the TEM grids with fine tweezers. The TEM grids are not clamped. This holder is used for quickly checking TEM grids in the SEM or as a grid holder for a carbon evaporator. Pin stub top diameter is 12.7mm. |
| Product # |
Unit |
Price* |
Add to Quote / Order |
| 10-002214 |
each |
€24,50
|
|
|
| EM-Tec PS3 mini pin stub SampleClamp 0-2mm, Ø12.7mm, pin |
 |
EM-Tec PS3 mini pin stub SampleClamp to clamp thin samples, foils, Si wafer pieces, etc. directly on the small stub. Samples are held down by a washer under the small screw. More effective and cleaner than using tape or conductive paint/paste. Pin stub diameter is 12.7mm. |
| Product # |
Unit |
Price* |
Add to Quote / Order |
| 10-002212 |
each |
€18,50
|
|
|
| EM-Tec PS9 mini split mount vise 0 - 8mm, pin |
 |
EM-Tec PS9 mini split mount vise clamp for sample thickness from 0-8mm. The sample is clamped between the two jaws of the split mount. The split mount vise jaws are closed by two allen screws. Closed mini split mount vise dimensions without pin are Ø15x10mm; when opened 23x15x10mm. |
| Product # |
Unit |
Price* |
Add to Quote / Order |
| 12-000230 |
each |
€26,50
|
|
|
| EM-Tec PS23 pin stub dual slot vise clamp, 2x2.5mm on Ø25x7.2mm pin stub |
 |
EM-Tec PS23 pin stub dual slot vise with two slots of 2.5 mm wide. Ideal for holding thin wafer pieces samples for cross section imaging. Samples are clamped by set screws. Holder size w/o pin is Ø25x7.2mm. |
| Product # |
Unit |
Price* |
Add to Quote / Order |
| 10-002223 |
each |
€24,50
|
|
|
| EM-Tec PS27 pin stub dual slot vise clamp, 2x7mm on Ø25x7.2mm pin stub |
 |
EM-Tec PS27 pin stub dual slot vise with two slots of 7 mm wide. Ideal for holding thin wafer pieces samples for cross section imaging or other thin samples. Samples are clamped by set screws. Holder size w/o pin is Ø25x7.2mm. |
| Product # |
Unit |
Price* |
Add to Quote / Order |
| 10-002227 |
each |
€24,50
|
|
|
Ordering Information for EM-Tec Hitachi M4 stub based compact sample holders for Hitachi SEMs and the versatile EM-Tec SEM stage adapters
*Prices without VAT, but within the EU, we have to check for valid VAT-ID.
| EM-Tec HS2 mini M4 cylinder stub tube/needle clamp Ø2mm , Ø15x10mm, M4 |
 |
EM-Tec HS2 mini M4 cylinder tub/needle clamp. Capacity is Ø2mm maximum, the needle is secured with a small set screw. This holder is ideal for probes, needles, wire and thin tubes. The perfect holder for the Cameca Atom Probe Microscope needle shaped samples. Holder size is Ø15x10mmxM4. |
| Product # |
Unit |
Price* |
Add to Quote / Order |
| 12-000331 |
each |
€18,50
|
|
|
| EM-Tec HS6 mini M4 cylinder stub vise clamp 0-6mm, Ø15x10mm, M4 |
 |
EM-Tec HS6 mini M4 cylinder stub vise clamp for sample thickness from 0-6mm. The sample is held vertically with a small set screw. Simple and cost-effective way to clamp cross sections of thin samples. Holder stub size is Ø15x10mmxM4. |
| Product # |
Unit |
Price* |
Add to Quote / Order |
| 12-000306 |
each |
€18,50
|
|
|
| EM-Tec HS15 M4 cylinder stub vise clamp 0-16mm, Ø25x10mm, M4 |
 |
EM-Tec HS15 M4 cylinder stub vise clamp for sample thickness from 0-16mm. The sample is held vertically with a set screw (multiple lengths are supplied). Cost effective and practical small vise clamp base on the stub size of Ø25x10mmxM4. |
| Product # |
Unit |
Price* |
Add to Quote / Order |
| 12-000315 |
each |
€24,50
|
|
|
| EM-Tec HS7 mini M4 cylinder stub dual slot vise clamp, 2x1mm, Ø15x6mm, M4 |
 |
EM-Tec HS7 mini pin stub dual slot vise with two slots of one mm wide. Ideal for holding thin wafer like samples for cross section imaging. Sample are clamped by set screws. Holder size is Ø15x6mm, M4 threaded hole. |
| Product # |
Unit |
Price* |
Add to Quote / Order |
| 12-000328 |
each |
€19,50
|
|
|
| EM-Tec HS10 M4 cylinder stub round clamp up to Ø10mm, Ø15x10mm, M4 |
| Product # |
Unit |
Price* |
Add to Quote / Order |
| 12-000307 |
each |
€24,50
|
|
|
| EM-Tec HS12 M4 cylinder stub round clamp up to Ø12.2mm, Ø15x10mm, M4 |
| Product # |
Unit |
Price* |
Add to Quote / Order |
| 12-000304 |
each |
€24,50
|
|
|
| EM-Tec HS16 M4 cylinder stub round clamp up to Ø16mm, Ø25x10mm, M4 |
 |
EM-Tec HS16 M4 cylinder stub to clamp round shaped samples up to Ø16mm in diameter. Samples are held by a set screw in the middle of a 25mm Hitachi stub. Holder stub size is Ø25x10mmxM4. |
| Product # |
Unit |
Price* |
Add to Quote / Order |
| 12-000324 |
each |
€24,50
|
|
|
| EM-Tec H3 multi stub holder for 3 x Ø15mm Hitachi stubs, Ø25x6mm, M4 |
 |
EM-Tec H3 multi stub adapter for 3 x Ø15mm Hitachi stubs. Compact and simple multi stub adapter based on the Hitachi Ø25x6mmxM4 stub. |
| Product # |
Unit |
Price* |
Add to Quote / Order |
| 12-000356 |
each |
€28,50
|
|
|
| EM-Tec H45P fixed 45° pre-tilt holder for pin stubs/holders, Ø12.7x17mm, M4 |
 |
EM-Tec H45P fixed 45° tilt holder for standard and Zeiss pin stubs. Image sample surfaces or cross sections directly under 45° w/o having to use the tilt on the SEM stage. Particularly useful for table top SEMs without tilt facilities or to extend tilt angles for limited tilt stages. Overall size is Ø12.7x17mmxM4. |
| Product # |
Unit |
Price* |
Add to Quote / Order |
| 12-000345 |
each |
€39,50
|
|
|
| EM-Tec H45 fixed 45° pre-tilt holder for Hitachi M4 stubs/holders, Ø12.7x17mm, M4 |
 |
EM-Tec H45 fixed 45° tilt holder Hitachi M4 cylinder stubs. Image sample surfaces or cross sections directly under 45° w/o having to tilt the SEM stage. Particularly useful for table top SEMs without tilt facilities or to extend tilt angles for limited tilt stages. Overall size is Ø12.7x17mmxM4. |
| Product # |
Unit |
Price* |
Add to Quote / Order |
| 12-000341 |
each |
€39,50
|
|
|
| EM-Tec H70P EBSD 70° / 20° pre-tilt holder for pin stubs/holders, 12.5x12.5x20mm, M4 |
 |
EM-Tec H70P fixed 70° EBSD tilt holder for pin stubs and pin stub type sample holders. Tilts the sample surface directly at the correct angle (70°) for EBSD analysis applications. Suitable for surfaces and cross sections. Overall size is 12.7 x 12.7 x 20 mm x M4. |
| Product # |
Unit |
Price* |
Add to Quote / Order |
| 12-000370 |
each |
€44,50
|
|
|
| EM-Tec H10 Hitachi M4 stub extender 10mm fixed, Ø15x10mm, M4 |
 |
EM-tec H10 Hitachi M4 stub extender with a fixed height of 10mm. Use where extra height is needed to get closer to the pole piece of the SEM or to change height quickly without using the Z-axis of the SEM stage when multi pin holders are used. Machined from vacuum grade aluminium with stainless steel screw. Overall size is Ø15x14mm. |
| Product # |
Unit |
Price* |
Add to Quote / Order |
| 11-000309 |
each |
€19,50
|
|
|
| EM-Tec H70 EBSD 70° / 20° pre-tilt holder for Hitachi M4 stubs/holders, 12.5x12.5x20mm, M4 |
 |
EM-Tec H70 fixed 70° EBSD tilt holder for Hitachi M4 stubs and sample holders with M4 threaded hole. Tilts the sample surface directly at the correct angle (70°) for EBSD analysis applications. Overall size is 12.7 x 12.7 x 20 mm x M4. |
| Product # |
Unit |
Price* |
Add to Quote / Order |
| 12-000371 |
each |
€44,50
|
|
|
| EM-Tec HS3 mini M4 cylinder stub SampleClamp 0-2mm , Ø15x10mm, M4 |
 |
EM-Tec HS3 mini M4 cylinder stub SampleClamp to clamp thin samples, foils, Si wafer pieces etc. directly on the stub. Samples are held down by a washer under the small screw. More effective and cleaner than using tape or conductive paint/paste. Holder stub size is Ø15x10mmxM4. |
| Product # |
Unit |
Price* |
Add to Quote / Order |
| 12-000311 |
each |
€18,50
|
|
|
| EM-Tec HS9 mini split mount vise 0 - 8mm, M4 |
 |
EM-Tec HS9 mini split mount vise clamp for sample thickness from 0-8mm. The sample is clamped between the two jaws of the split mount. The split mount vise jaws are closed by two Allen screws. Closed mini split mount vise dimensions are Ø15x10mm; when opened 24x15x10mm. M4 threaded hole in the base. |
| Product # |
Unit |
Price* |
Add to Quote / Order |
| 12-000330 |
each |
€25,50
|
|
|
Ordering information for EM-Tec JEOL stub based compact sample holders for JEOL SEMs
*Prices without VAT, but within the EU, we have to check for valid VAT-ID.
| EM-Tec JS2 mini cylinder stub tube/needle clamp Ø2mm, JEOL Ø12.2x10mm |
| Product # |
Unit |
Price* |
Add to Quote / Order |
| 12-000502 |
each |
€18,50
|
|
|
| EM-Tec JS4 mini cylinder stub vise clamp 0-4mm, JEOL Ø12.2x10mm |
 |
EM-Tec JS4 mini cylinder stub vise clamp for sample thickness from 0-4mm. The sample is held vertically with a small set screw. Most effective way to study cross section of thin samples. Holder stub size is Ø12.2x10mm. |
| Product # |
Unit |
Price* |
Add to Quote / Order |
| 12-000504 |
each |
€18,50
|
|
|
| EM-Tec JS12 cylinder stub vise clamp 0-12mm, JEOL Ø25x10mm |
 |
EM-Tec JS12 cylinder stub vise clamp for sample thickness from 0-12mm. The sample is held vertically with a set screw (multiple lengths are supplied). Cost effective and practical small vise clamp based on the stub size of Ø25x10mm. |
| Product # |
Unit |
Price* |
Add to Quote / Order |
| 12-000512 |
each |
€24,50
|
|
|
| EM-Tec JS14 cylinder stub round clamp for up to Ø16mm, JEOL Ø25x10mm |
| Product # |
Unit |
Price* |
Add to Quote / Order |
| 12-000514 |
each |
€24,50
|
|
|
| EM-Tec JS3 mini cylinder stub SampleClamp 0-2mm, JEOL Ø12.2x10mm |
 |
EM-Tec JS3 mini cylinder stub SampleClamp to clamp thin samples, foils, Si wafer pieces etc. directly on the small stub. Samples are held down by a washer under the small screw. More effective and cleaner than using tape or conductive paint/paste. Holder stub size is Ø 12.2 x 10 mm. |
| Product # |
Unit |
Price* |
Add to Quote / Order |
| 12-000503 |
each |
€18,50
|
|
|
