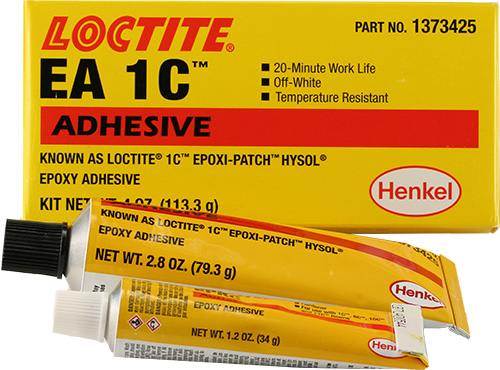

Hysol 1C / Torr Seal Vacuum Epoxy Resin Sealant kit
Equivalent to Torr Seal Sealant

•
• Order Hysol 1C / Torr Seal Vacuum Epoxy Resin Sealant kit
  • Loctite 1C Hysol, Torr-Seal vacuum sealant epoxy kit, 113 gram
  • Disposable PVC Mixing cups for epoxy resins, 40ml, Ø 3.5 x3.5 cm with 2cm handle



Hysol 1C / Torr Seal Vacuum Epoxy Resin Sealant kit

Hysol 1C high vacuum epoxy glue and sealant is ideal for sealing leaks on vacuum systems, bonding vacuum component, repair of vacuum components and to seal electrical feedthroughs on high vacuum systems. Hysol 1C epoxy sealant is fully equivalent to Torr Seal sealant. It is a two- component epoxy resin system with no solvents. Due to the low outgassing rates of the cured epoxy it can be used in high vacuum systems at 10-9 mbar or below. The service temperature range for Hysol 1C is -45°C to +120 °C, which is just above the baking temperature for high vacuum systems. Hysol 1C epoxy resin provides excellent bonding on metals, ceramics, glass and most plastics. It is easy to use: mix two equal lengths of resin and hardener. Bonding can be improved by making the bonding surfaces rougher. Pot-life of Hysol 1C is approximately 20 minutes after mixing the two components. It cures at room temperature and reaches full curing after 72 hrs at room temperature. Elevated temperatures between 60 -100 °C greatly reduce curing time.  Cured Hysol 1C can be machined, sanded and polished.

Typical applications include:

• Vacuum feedthrough sealant
• Electrical insulation of feedthrough contacts
• High vacuum leak sealant
• Epoxy embedding of EM samples
• Bonding of vacuum components
• Repair of vacuum components or damaged parts

Specifications of Hysol 1C high vacuum epoxy sealant (Torr Seal sealant) kit:

SDS: Hysol EA 1C high vacuum epoxy seal

TSB:Hysol EA 1C high vacuum epoxy sealant

Loctite 1C Hysol, Torr-Seal vacuum sealant epoxy kit, 113 gram Product # Unit Price* Add to Quote / Order 64-002002 each €39,95 Qty: Hazardous Symbol Explanation = Hazard Shipping Fee Cg = Suspected Carcinogen F = Flammable I = Irritant S = Sensitizer T = Toxic Extra info 64-002002 :   Cg | I | SDS

Disposable PVC Mixing cups for epoxy resins, 40ml, Ø 3.5 x3.5 cm with 2cm handle Product # Unit Price* Add to Quote / Order 64-002006 pkg/50 €4,00 Qty:
