Micro-Tec Tablet Press and Tablet Punch Die Kit
Introduction
Determining the chemical composition of a fine powder with SEM/EDS can be sometimes difficult. Pressing the fine powder into a tablet (if needed with a bonding compound) simplifies handling. By providing a flat surface, the overall analytical results can be improved. It also reduces possible contamination of the SEM with fine powder. If needed the tablet can be coated with a carbon film to provide conductivity. Tablet presses are also used for XRF applications. There are two tablet presses with different designs available:

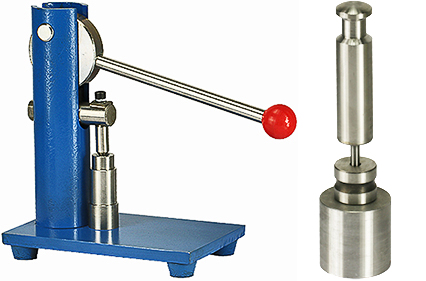

- Micro-Tec MTB manual tablet press for Ø3, 6, 8, 10 and 12mm tablets. Manual press with integrated tablet mould, punch and die. The tablet mould, punch and die are not separately available; only as a complete tablet press. Overall size is 185 x 120 x 210mm with a handle length of 195mm. Leverage of the handle is approx. 4-5 x. Weight is 4.6kg; made from carbon steel.

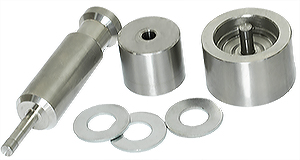

- Micro-Tec TPD tablet punch die kit for Ø6, 9 and 12mm tablets. A hammer or separate press is needed to form the tablets. Consists of 4 pieces. Overall dimensions are Ø43 x 175mm. Weight is 0.9Kg; made from carbon steel. The tablet punch die kit is of a different design and is not interchangeable with the Micro-Tec MTB manual tablet press.
Technical support bulletin: Assembling and use of Micro-Tec tablet press and tablet punch die kits.
Ordering information for Micro-Tec Tablet Press and Tablet Punch Die Kit
*Prices without VAT, but within the EU, we have to check for valid VAT-ID.
 |
Micro-Tec MTB3 tablet press for Ø3mm tablets, carbon steel |
| Product # |
Unit |
Price* |
Add to Quote / Order |
| 52-007203 |
each |
€418,50
|
|
|
|
|
|
Micro-Tec MTB6 manual tablet press for Ø6mm tablets, carbon steel |
| Product # |
Unit |
Price* |
Add to Quote / Order |
| 52-007206 |
each |
€418,50
|
|
|
|
|
|
Micro-Tec MTB8 tablet press for Ø8mm tablets, carbon steel |
| Product # |
Unit |
Price* |
Add to Quote / Order |
| 52-007208 |
each |
€408,50
|
|
|
|
|
|
Micro-Tec MTB10 manual tablet press for Ø10mm tablets, carbon steel |
| Product # |
Unit |
Price* |
Add to Quote / Order |
| 52-007210 |
each |
€388,50
|
|
|
|
|
|
Micro-Tec MTB12 manual tablet press for Ø12mm tablets, carbon steel |
| Product # |
Unit |
Price* |
Add to Quote / Order |
| 52-007212 |
each |
€388,50
|
|
|
|
Ordering information for Micro-Tec TPD tablet punch die kits
*Prices without VAT, but within the EU, we have to check for valid VAT-ID.
 |
Micro-Tec TPD6 Tablet Punch Die kit for Ø6mm tablets, carbon steel |
| Product # |
Unit |
Price* |
Add to Quote / Order |
| 52-007306 |
Kit |
€112,50
|
|
|
|
|
|
Micro-Tec TPD9 Tablet Punch Die kit for Ø9mm tablets, carbon steel |
| Product # |
Unit |
Price* |
Add to Quote / Order |
| 52-007309 |
Kit |
€112,50
|
|
|
|
|
|
Micro-Tec TPD12 Tablet Punch Die kit for Ø12mm tablets, carbon steel |
| Product # |
Unit |
Price* |
Add to Quote / Order |
| 52-007312 |
Kit |
€112,50
|
|
|
|
