EM-Tec Low Profile S-Clip SEM sample holders

•
• Order EM-Tec Low Profile S-Clip SEM sample holders
  • EM-Tec LPS12 Low Profile S-Clip SEM sample holder, single short clip on a Ø12.7mm standard pin stub
  • EM-Tec LPS19 Low Profile S-Clip SEM sample holder, two standard clips on a Ø19mm pin stub
  • EM-Tec LPS25 Low Profile S-Clip SEM sample holder, two standard clips on a Ø25.4mm pin stub
  • EM-Tec LPC5 short Low Profile S-Clips, L = 5mm, phosphor bronze
  • EM-Tec LPC10 standard Low Profile S-Clips, L = 10mm, phosphor bronze


Low Profile S-Clip SEM sample holders

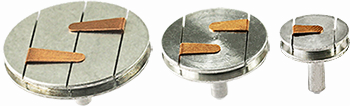

The EM-Tec Low Profile S-Clip SEM sample holders have been developed to allow for very short working distance and high tilt of thin samples. The Low-Profile S-Clip holders can be used to clamp thin samples, such as Silicon chips, up to 1mm thickness.  The EM-Tec Low Profile S-Clips are positioned in the narrow precision slots which are cut in the specimen mounts; the clips can be moved sideways for optimum positioning.  The EM-Tec Low Profile S-Clips are less 0.3mm thick which enables bringing the sample within 1mm of the polepiece. The EM-Tec Low Profile S-Clips are made from non-magnetic phosphor bronze and can be easily modified to accommodate your samples. The currently available EM-Tec Low Profile S-Clip SEM sample holders are:

• EM-Tec LPS12 with one short Low Profile S-Clip on a Ø12.7mm standard pin stub
• EM-Tec LPS19 with two short Low Profile S-Clips on a Ø19 mm pin stub
• EM-Tec LPS25 with two standard Low Profile S-Clips on a Ø25.4mm pin stub

The EM-Tec Low Profile S-Clip SEM sample holders are compatible with SEM, FESEM, SEM/FIB, Dualbeam and Crossbeam systems from Tescan, Thermo, FEI, Philips and Zeiss. For JEOL and Hitachi systems pin stub adapters should be used.

EM-Tec LPS12 Low Profile S-Clip SEM sample holder, single short clip on a Ø12.7mm standard pin stub Product # Unit Price* Add to Quote / Order 12-002912-1 each €29,50 Qty:

EM-Tec LPS19 Low Profile S-Clip SEM sample holder, two standard clips on a Ø19mm pin stub Product # Unit Price* Add to Quote / Order 12-002919-2 each €31,50 Qty:

EM-Tec LPS25 Low Profile S-Clip SEM sample holder, two standard clips on a Ø25.4mm pin stub Product # Unit Price* Add to Quote / Order 12-002924-2 each €33,50 Qty:

EM-Tec LPC5 short Low Profile S-Clips, L = 5mm, phosphor bronze Product # Unit Price* Add to Quote / Order 12-000150 set/5 €30,00 Qty:

EM-Tec LPC10 standard Low Profile S-Clips, L = 10mm, phosphor bronze Product # Unit Price* Add to Quote / Order 12-000152 set/5 €30,00 Qty:
