EM-Tec multiple stub holders for JEOL SEM cylinder stubs


       EM-Tec multiple stub holders for JEOL SEM stubs

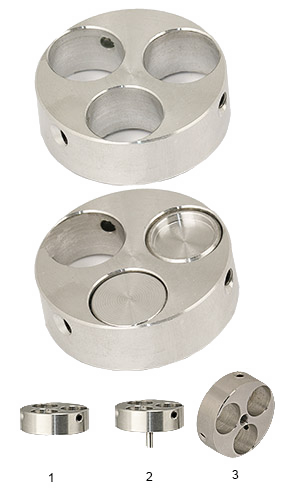

multiple stub holders for Ø12.2mm JEOL SEM stubs
Middle with 10-005112 stub and 10-005114 dish stub
1: #12-000516 with flat base for JEOL SEMs
2: #12-000213 with pin for SEM's using pins
3: #12-000312 with M4 thread for Hitachi SEMs

Introduction

The EM-Tec multiple stub holders offer an efficient and cost-effective way to load multiple sample stubs with specimens in the SEM.  Using multiple stub holders saves time, allows multi sample processing or allows for quickly comparing samples against each other. Three types are offered:

  • EM-Tec J4 multiple stub holders for 4 of the Ø9.5mm JEOL SEM stubs
  • EM-Tec J3 multiple stub holders for 3 of the  Ø12.2mm JEOL SEM stubs
  • EM-Tec J7 multiple stub holder for 7 of the Ø12.2 (Ø12.5)mm JEOL SEM stubs
  • EM-Tec J7S multiple stub holder for 7 of the Ø9.5 (Ø10)mm JEOL SEM stubs

The EM-Tec J4 and J3 are based on a Ø32x10mm JEOL sample stub and accommodate either 4 of the  Ø9.5mm or 3 of the Ø12.2mm diameter JEOL cylinder stubs. The EM-Tec J7 is a larger disc of Ø50x15mm. Available formats are:

  • JEOL Ø32x10mm cylinder stub compatible format for JEOL SEMs
  • Pin for SEMs using pin stubs
  • M4 threaded hole for Hitachi SEMs or the versatile EM-Tec SEM stage adapters

Capacity, size and compatibility of the EM-Tec multiple stub holders for JEOL  SEM :

Product #

Type

No. of stubs

Dimensions w/o pin

Stub securing method

SEM stage compatibility

12-000515

J4

4 x Ø9.5

Ø31.5x10mm

Set screw

JEOL 32mm cylinder

12-000212

J4

4 x Ø9.5

Ø31.5x10mm

Set screw

Standard 3.2mm pin

12-000312

J4

4 x Ø9.5

Ø31.5x10mm

Set screw

M4 thread

12-000516

J3

3 x Ø12.2

Ø31.5x10mm

Set screw

JEOL 32 mm cylinder

12-000213

J3

3 x Ø12.2

Ø31.5x10mm

Set screw

Standard 3.2mm pin

12-000313

J3

3 x Ø12.2

Ø31.5x10mm

Set screw

M4 thread

12-000236

J7

7 x Ø12.2

Ø50.0x15mm

Set screw

Standard 3.2mm pin

12-000336

J7

7 x Ø12.2

Ø50.0x15mm

Set screw

M4 thread

12-002207

J7S

7 x Ø9.5

Ø50.0x15mm

Set screw

Standard 3.2mm pin

12-003307

J7S

7 x Ø9.5

Ø50.0x15mm

Set screw

M4 thread


Ordering information for EM-Tec multiple JEOL stub holders for JEOL SEMs and JEOL Neoscope tabletop SEMs.

*Prices without VAT, but within the EU, we have to check for valid VAT-ID.

EM-Tec J4 multi stub holder for 4 x Ø9.5mm JEOL stubs, Ø31.5x10mm cylinder EM-Tec J4 multi stub holder for 4 x Ø9.5mm JEOL stubs, Ø31.5x10mm cylinder
Product # Unit Price* Add to Quote / Order
12-000515 each €38,50
Qty:


EM-Tec J3 multi stub holder for 3 x Ø12.2mm JEOL stubs, Ø31.5x10mm cylinder EM-Tec J3 multi stub holder for 3 x Ø12.2mm JEOL stubs, Ø31.5x10mm cylinder
Product # Unit Price* Add to Quote / Order
12-000516 each €36,50
Qty:


Ordering Information for EM-Tec multiple JEOL stub holders for SEMs using pin stubs; TFS, FEI, Philips, Zeiss, LEO Tescan, AmRay, Pemtron, Coxem, Aspex, RJLee, Cambridge Instruments, Leica, and CamScan

*Prices without VAT, but within the EU, we have to check for valid VAT-ID.

EM-Tec J4 multi stub holder for 4 x Ø9.5mm JEOL stubs, Ø31.5x10mm, pin EM-Tec J4 multi stub holder for 4 x Ø9.5mm JEOL stubs, Ø31.5x10mm, pin
Product # Unit Price* Add to Quote / Order
12-000212 each €39,50
Qty:


EM-Tec J3 multi stub holder for 3 x Ø12.2mm JEOL stubs, Ø31.5x10mm, pin EM-Tec J3 multi stub holder for 3 x Ø12.2mm JEOL stubs, Ø31.5x10mm, pin
Product # Unit Price* Add to Quote / Order
12-000213 each €37,50
Qty:


EM-Tec J7 multi stub holder for 7 x Ø12.2mm JEOL stubs, Ø50.0x15mm, pin EM-Tec J7 multi stub holder for 7 x Ø12.2mm JEOL stubs, Ø50.0x15mm, pin
Product # Unit Price* Add to Quote / Order
12-000236 each €108,50
Qty:


EM-Tec J7S multi stub holder for 7 x Ø9.5mm JEOL stubs, Ø50.0x15mm, pin EM-Tec J7S multi stub holder for 7 x Ø9.5mm JEOL stubs, Ø50.0x15mm, pin
Product # Unit Price* Add to Quote / Order
12-002207 each €108,50
Qty:


Ordering Information for EM-Tec multiple JEOL stub holders for Hitachi SEMs and the versatile EM-Tec SEM stage adapters

*Prices without VAT, but within the EU, we have to check for valid VAT-ID.

EM-Tec J4 multi stub holder for 4 x Ø9.5mm JEOL stubs, Ø31.5x10mm, M4 EM-Tec J4 multi stub holder for 4 x Ø9.5mm JEOL stubs, Ø31.5x10mm, M4
Product # Unit Price* Add to Quote / Order
12-000312 each €38,50
Qty:


EM-Tec J3 multi stub holder for 3 x Ø12.2mm JEOL stubs, Ø31.5x10mm, M4 EM-Tec J3 multi stub holder for 3 x Ø12.2mm JEOL stubs, Ø31.5x10mm, M4
Product # Unit Price* Add to Quote / Order
12-000313 each €36,50
Qty:


EM-Tec J7 multi stub holder for 7 x Ø12.2mm JEOL stubs, Ø50.0x15mm, M4 EM-Tec J7 multi stub holder for 7 x Ø12.2mm JEOL stubs, Ø50.0x15mm, M4
Product # Unit Price* Add to Quote / Order
12-000336 each €104,50
Qty:


EM-Tec J7S multi stub holder for 7 x Ø9.5mm JEOL stubs, Ø50.0x15mm, M4 EM-Tec J7S multi stub holder for 7 x Ø9.5mm JEOL stubs, Ø50.0x15mm, M4
Product # Unit Price* Add to Quote / Order
12-003307 each €104,50
Qty:
