RD Mathis special tantalum evaporation boat sources
larger thermal vacuum tantalum evaporation boats

•
• special tantalum evaporation boat sources
  • Tantalum evaporation source SB1, 91 x 50 x 9.5mm trough, 114mm L x 51mm W
  • Tantalum evaporation source SB2, 76 x 19 x 9.5mm trough, 103mm L x 19mm W
  • Tantalum evaporation source SB3, 25 x 19 x 9.5mm trough, 52mm L x 19mm W
  • Tantalum evaporation source SB4, 76 x 25 x 9.5mm trough, 102mm L x 25mm W
  • Tantalum evaporation source SB5, 50 x 19 x 9.5mm trough, 76mm L x 19mm W
  • Tantalum evaporation source SB6, 63.5 x 19 x 9.5mm trough, 89mm L x 19mm W

Example of special tantalum evaporation boat sources


The special tantalum evaporation boat sources are designed to offer higher material capacity than the standard tantalum evaporation boats.  They are available in different sizes, shapes and capacity to cover a wide range of needs.
Baffling for these special tantalum boats is optionally available with two types of covers: single hole and multi hole baffle covers. Baffling is used to minimise particulates in the vapour stream. Several of the higher capcity tantalum bout sources are also available as alumina coated versions. Evaporation boats can be used for upwards evaporation only.

The special high capacity tantalum evaporation boat sources are suitable for:

• Thin film thermal evaporation processes for metalising surfaces
• Production cycles with larger amounts of evaporant
• A wide variety of materials
• Higher rated power sources
• R & D and product development applications

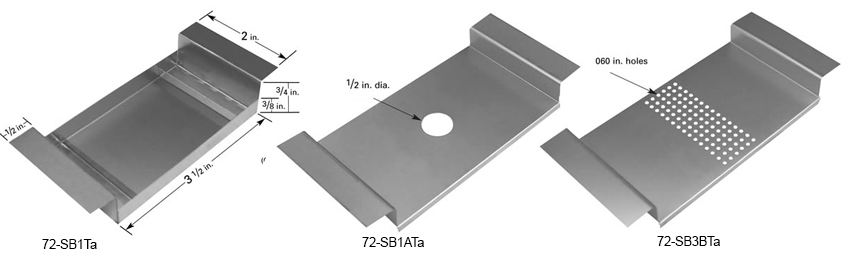

Tantalum evaporation source SB1, 91 x 50 x 9.5mm trough, 114mm L x 51mm W Product # Unit Price* Add to Quote / Order 72-SB1Ta Tantalum evaporation source SB1, 4.14 Volts, 707 Amps, 2927 Watts, 1600⁰ C Temp, 2.5 cm3, 0.25mm Ta Qty: each €302,40 72-SB1ATa Tantalum cap with a single Ø6.4mm hole for evaporation source SB1, 3.20 Volts, 749 Amps, 2397 Watts, 1600⁰ C Temp, 0.13mm T Tantalum Qty: each €128,50 72-SB1BTa Multi hole tantalum cap for evaporation source SB1, 75 x Ø1.5mm holes, 0.13mm T Tantalum Qty: each €134,20

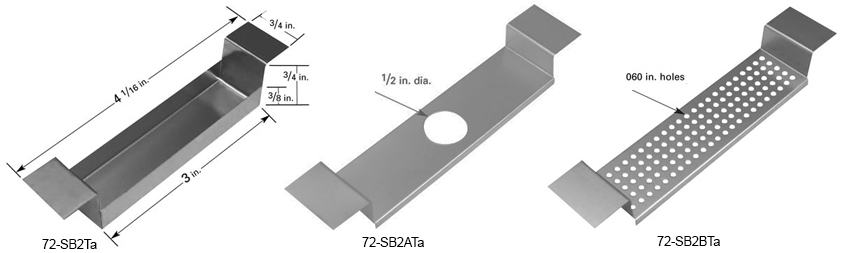

Tantalum evaporation source SB2, 76 x 19 x 9.5mm trough, 103mm L x 19mm W Product # Unit Price* Add to Quote / Order 72-SB2Ta Tantalum evaporation source SB2, 3.70 Volts, 388 Amps, 1436 Watts, 1600⁰ C Temp, 2.5 cm3, 0.25mm Ta Qty: each €170,10 72-SB2ATa Tantalum cap with a single Ø6.4mm hole for evaporation source SB2, 2.91 Volts, 398 Amps, 1158 Watts, 1600⁰ C Temp, 0.13mm T Tantalum Qty: each €62,40 72-SB2BTa Multi hole tantalum cap for evaporation source SB2, 115 x Ø1.5mm holes, 0.13mm T Tantalum Qty: each €62,40

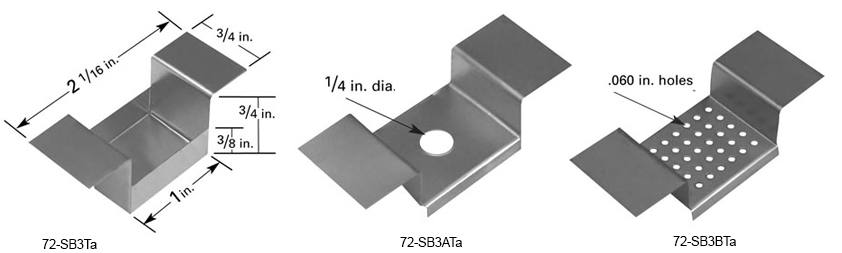

Tantalum evaporation source SB3, 25 x 19 x 9.5mm trough, 52mm L x 19mm W Product # Unit Price* Add to Quote / Order 72-SB3Ta Tantalum evaporation source SB3, 2.08 Volts, 366 Amps, 761 Watts, 1600⁰ C Temp, 2.5 cm3, 0.25mm Ta Qty: each €119,10 72-SB3ATa Tantalum cap with a single Ø6.4mm hole for evaporation source SB3, 1.63 Volts, 380 Amps, 619 Watts, 1600⁰ C Temp, 0.13mm T Tantalum Qty: each €43,50 72-SB3BTa Multi hole tantalum cap for evaporation source SB3, 30 x Ø1.5mm holes, 0.13mm T Tantalum Qty: each €52,90

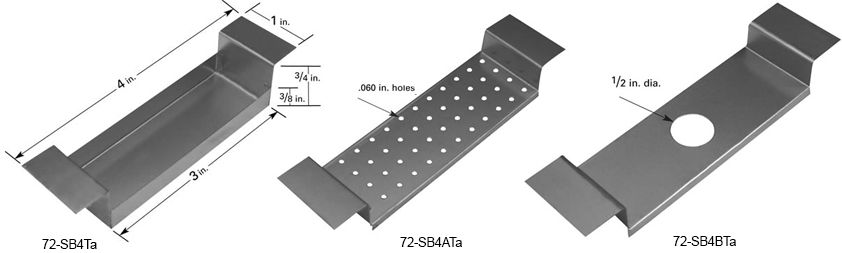

Tantalum evaporation source SB4, 76 x 25 x 9.5mm trough, 102mm L x 25mm W Product # Unit Price* Add to Quote / Order 72-SB4Ta Tantalum evaporation source SB4, 3.57 Volts, 438 Amps, 1564 Watts, 1600⁰ C Temp, 2.5 cm3, 0.25mm Ta Qty: each €194,70 72-SB4ATa Tantalum cap with a single Ø6.4mm hole for evaporation source SB4, 1.63 Volts, 380 Amps, 619 Watts, 1600⁰ C Temp, 0.13mm T Tantalum Qty: each €69,90 72-SB4BTa Multi hole tantalum cap for evaporation source SB4, 44 x Ø1.5mm holes, 0.13mm T Tantalum Qty: each €79,40

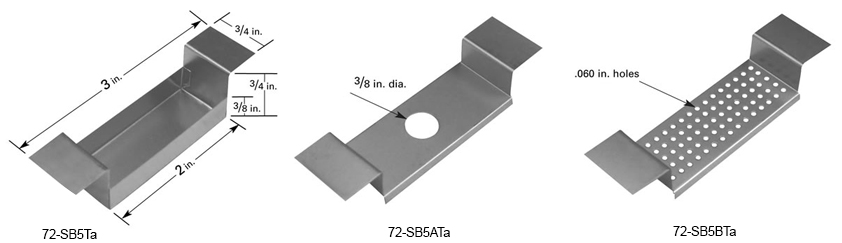

Tantalum evaporation source SB5, 50 x 19 x 9.5mm trough, 76mm L x 19mm W Product # Unit Price* Add to Quote / Order 72-SB5Ta Tantalum evaporation source SB5, 2.96 Volts, 371 Amps, 1098 Watts, 1600⁰ C Temp, 2.5 cm3, 0.25mm Ta Qty: each €145,50 72-SB5ATa Tantalum cap with a single Ø6.4mm hole for evaporation source SB5, 2.12 Volts, 380 Amps, 806 Watts, 1600⁰ C Temp, 0.13mm T Tantalum Qty: each €52,90 72-SB5BTa Multi hole tantalum cap for evaporation source SB5, 75 x Ø1.5mm holes, 0.13mm T Tantalum Qty: each €60,50

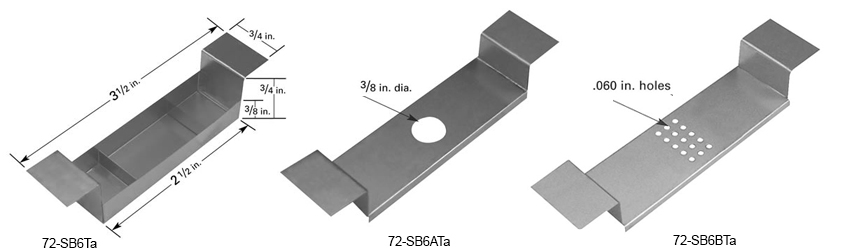

Tantalum evaporation source SB6, 63.5 x 19 x 9.5mm trough, 89mm L x 19mm W Product # Unit Price* Add to Quote / Order 72-SB6Ta Tantalum evaporation source SB6, 3.58 Volts, 280 Amps, 1002 Watts, 1600⁰ C Temp, 7 cm3, 0.13mm Ta Qty: each €98,30 72-SB6ATa Tantalum cap with a single Ø9.5mm hole for evaporation source SB6, 0.13mm T Tantalum Qty: each €73,70 72-SB6BTa Multi hole tantalum cap for evaporation source SB6, 15 x Ø1.5mm holes, 0.13mm T Tantalum Qty: each €81,30
